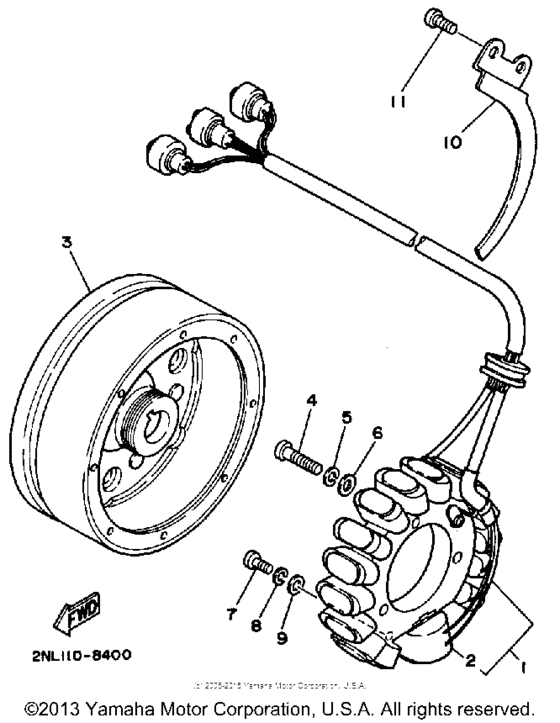

Generator Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-85510-20-00
Stator Assy
|
2NL-85510-20-00 |
— | ||
|
2
|
2
2NL-85580-20-00
Coil, Pulser
|
2NL-85580-20-00 |
— | ||
|
3
|
3
2N5-11111-00-00
Rotor
IN PRICE BOOK |
2N5-11111-00-00 |
— | ||
|
4
|
4
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
7
|
7
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
9
|
9
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
9
|
9
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
10
|
10
1UY-81175-01-00 Stopper 1 |
1UY-81175-01-00 |
from US $5.81 |
||
|
11
|
11
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
