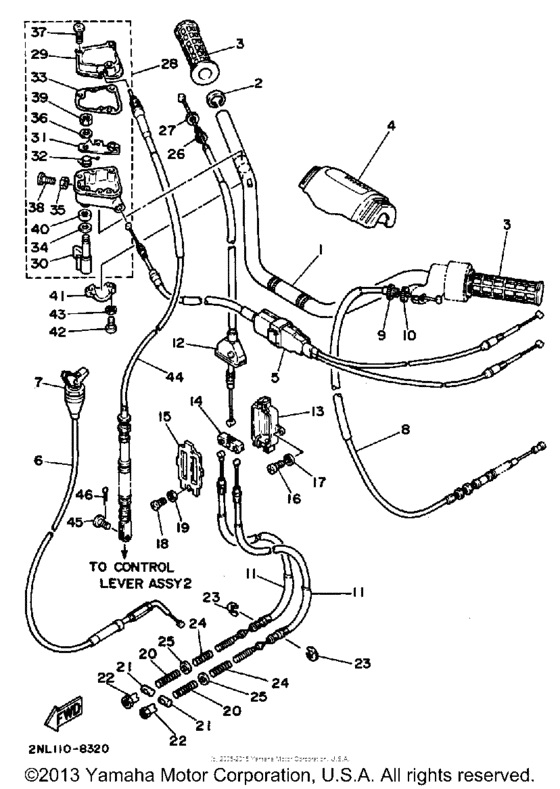

Handlebar cable Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59V-26111-01-00
Handlebar
|
59V-26111-01-00 |
— | ||
|
2
|
2
90387-22660-00 Collar |
90387-22660-00 |
from US $1.84 |
||
|
3
|
3
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
4
|
4
1YW-26124-01-00
Protector, Handlebar
|
1YW-26124-01-00 |
— | ||
|
5
|
5
2NL-26301-00-00
Cbleassembly, Thrtl/pmppump (2N
2N |
2NL-26301-00-00 |
— | ||
|
6
|
6
2NL-26331-00-00
Cable, Starter 1
|
2NL-26331-00-00 |
— | ||
|
7
|
7
8G8-26333-00-00 Nut |
8G8-26333-00-00 |
from US $3.12 |
||
|
8
|
8
2NL-26335-00-00 Cable, clutch |
2NL-26335-00-00 |
from US $37.17 |
||
|
9
|
9
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
9
|
9
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
11
|
11
3JN-26361-00-00
Cable, Brake
|
3JN-26361-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3JN-26361-01-00
Cable, Brake
|
3JN-26361-01-00 |
— | ||
|
12
|
12
2NL-26373-00-00 Cable, Brake 4 |
2NL-26373-00-00 |
from US $28.76 |
||
| replacement | |||||
|
12
|
12
1NU-26373-00-00 Cable, Brake 4 |
1NU-26373-00-00 |
from US $28.76 |
||
|
13
|
13
52H-26371-00-00 Housing, Brake Link |
52H-26371-00-00 |
from US $30.46 |
||
|
14
|
14
52H-26347-01-00 Joint, Cable |
52H-26347-01-00 |
from US $22.24 |
||
|
15
|
15
52H-2631G-00-00 Plate |
52H-2631G-00-00 |
from US $13.46 |
||
|
16
|
16
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
16
|
16
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
17
|
17
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
17
|
17
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
17
|
17
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
18
|
18
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
19
|
19
92902-03600-00 Washer |
92902-03600-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
|
20
|
20
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
21
|
21
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
22
|
22
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
23
|
23
990-09066-00-00
Circlip
|
990-09066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.56 |
||
|
24
|
24
90501-123A0-00 Spring, Compression |
90501-123A0-00 |
from US $1.98 |
||
|
25
|
25
90209-06265-00 Washer |
90209-06265-00 |
from US $3.54 |
||
|
26
|
26
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
26
|
26
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
27
|
27
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
27
|
27
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
28
|
28
2NL-26250-01-00
Throttle Lever Assembly (2Nl-26
2NL-26 |
2NL-26250-01-00 |
— | ||
|
29
|
29
2NL-26180-00-00
Control Lever Assembly
|
2NL-26180-00-00 |
— | ||
|
30
|
30
1NV-2625G-00-00
Lever, Throttle
|
1NV-2625G-00-00 |
— | ||
|
31
|
31
2NL-2625H-00-00
Arm, Throttle
|
2NL-2625H-00-00 |
— | ||
|
32
|
32
1NV-26304-00-00 Spring |
1NV-26304-00-00 |
from US $6.52 |
||
|
33
|
33
1NV-2628G-00-00 Gasket |
1NV-2628G-00-00 |
from US $7.18 |
||
|
34
|
34
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
35
|
35
953-16057-00-00 Nut(2Nl) |
953-16057-00-00 |
from US $2.83 |
||
| replacement | |||||
|
35
|
35
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
36
|
36
53L-83909-00-00
Washer, Special
|
53L-83909-00-00 |
— | ||
|
37
|
37
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
37
|
37
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
37
|
37
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
38
|
38
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
38
|
38
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
39
|
39
95612-05100-00 Nut, U |
95612-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
39
|
39
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
40
|
40
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
41
|
41
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
42
|
42
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
42
|
42
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
43
|
43
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
43
|
43
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
44
|
44
2NL-26312-00-00
Cable, Throttle 2
|
2NL-26312-00-00 |
— | ||
|
45
|
45
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
46
|
46
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
46
|
46
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
