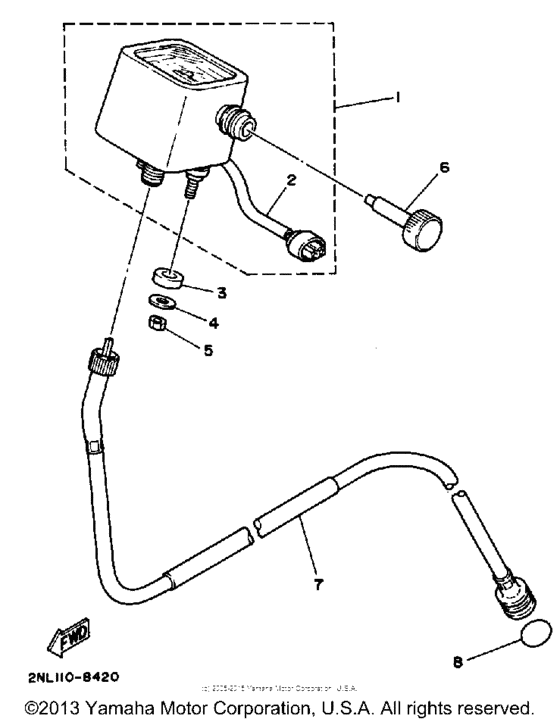

Meter Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-8351A-A0-00
Meter Assembly
|
2NL-8351A-A0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2NL-8355H-A0-00
Cord Comp
|
2NL-8355H-A0-00 |
— | ||
|
3
|
3
4X7-83523-00-00 Damper |
4X7-83523-00-00 |
from US $7.93 |
||
|
4
|
4
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
4
|
4
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
4
|
4
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
5
|
5
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
6
|
6
59V-83578-00-00
Knob, Trip Meter
|
59V-83578-00-00 |
— | ||
|
7
|
7
2NL-83550-00-00
Speedometer Cablecable Assembly
|
2NL-83550-00-00 |
— | ||
|
8
|
8
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
8
|
8
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
