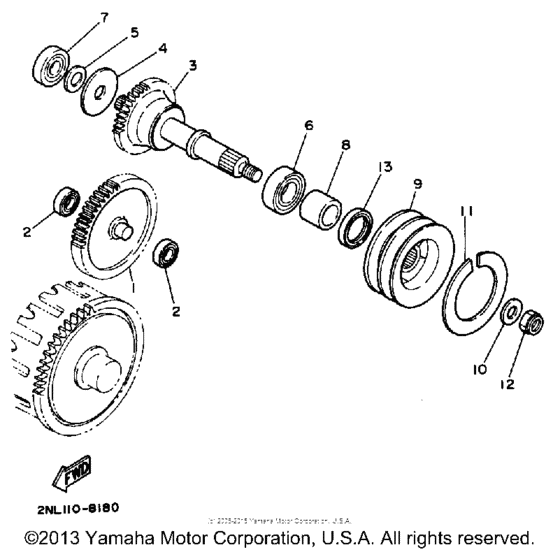

Pto clutch Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-1760A-00-00
Gear 1 (52T)
52T |
2NL-1760A-00-00 |
— | ||
|
2
|
2
93306-20211-00 Bearing (B6202) |
93306-20211-00 |
from US $19.13 |
||
|
3
|
3
2NL-17830-00-00
Drive Gear Assy41T (41T)
41T |
2NL-17830-00-00 |
— | ||
|
4
|
4
8Y8-83550-00-00 Speedometer Cable AssyIN PRICE BOOK |
8Y8-83550-00-00 |
from US $21.68 |
||
|
5
|
5
90201-17257-00 Washer, Plate |
90201-17257-00 |
from US $1.84 |
||
|
6
|
6
93306-20541-00 Bearing |
93306-20541-00 |
from US $17.86 |
||
|
7
|
7
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
8
|
8
903-87253-T5-00
Collar
|
903-87253-T5-00 |
— | ||
|
9
|
9
2NL-46256-00-00
Pulley 1
|
2NL-46256-00-00 |
— | ||
|
10
|
10
90201-14633-00 Washer, Plate |
90201-14633-00 |
from US $7.65 |
||
|
11
|
11
2NL-17665-00-00
Plate 1
|
2NL-17665-00-00 |
— | ||
|
12
|
12
90185-14070-00 Nut, Self-Locking (1J7) |
90185-14070-00 |
from US $9.49 |
||
|
13
|
13
93102-35393-00 Oil Seal(1Uy) |
93102-35393-00 |
from US $5.67 |
