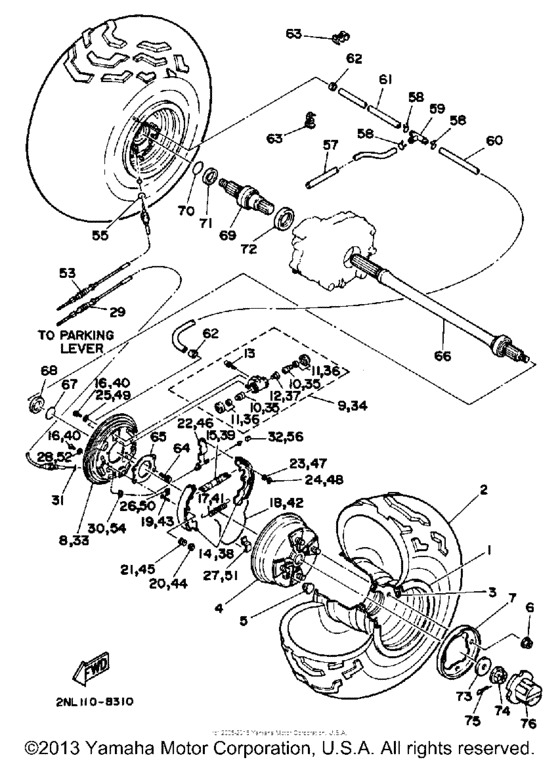

Rear wheel Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-25390-00-35
Wheel, Rear
|
2NL-25390-00-35 |
— | ||
|
2
|
2
941-11092-R8-00
Tire (At24X11-9)
|
941-11092-R8-00 |
— | ||
|
3
|
3
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
4
|
4
2NL-2531E-00-00
Drum Brake
|
2NL-2531E-00-00 |
— | ||
|
5
|
5
2NL-25335-01-00 Cap |
2NL-25335-01-00 |
from US $5.95 |
||
|
6
|
6
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
6
|
6
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
6
|
6
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
7
|
7
2NL-2538F-00-00
Reinforcement
|
2NL-2538F-00-00 |
— | ||
|
8
|
8
3JN-27208-00-00
Bckg Plt Sub Assembly 1Assembly
1ASSEMBLY |
3JN-27208-00-00 |
— | ||
|
9
|
9
2NL-25980-00-00
Wheel Cylinder 1 R/h
R/H |
2NL-25980-00-00 |
— | ||
|
10
|
10
2NL-25814-00-00
Piston, Caliper
|
2NL-25814-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
2NL-W0069-00-00
Cup Set
|
2NL-W0069-00-00 |
— | ||
|
12
|
12
2NL-25977-00-00
Spring, Return
|
2NL-25977-00-00 |
— | ||
|
13
|
13
2NL-W0048-00-00
Bleed Screw Kit
FOR LEFT |
2NL-W0048-00-00 |
— | ||
|
14
|
14
2NL-W2536-00-00
Brake Shoe Kit
|
2NL-W2536-00-00 |
— | ||
| replacements | |||||
|
14
|
14
3JN-W253E-00-00
Brake Shoe Set
|
3JN-W253E-00-00 |
— | ||
|
14
|
14
3JN-W2536-00-00
Brake Shoe Set
|
3JN-W2536-00-00 |
— | ||
|
15
|
15
2NL-27260-00-00 Adjuster Assembly |
2NL-27260-00-00 |
US $143.35 |
||
| replacement | |||||
|
15
|
15
3JN-27260-00-00 Adjuster Assembly |
3JN-27260-00-00 |
US $139.19 |
||
|
16
|
16
2NL-25373-00-00
Inactive Part Number
|
2NL-25373-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
2NL-25333-00-00
Spring, Return
|
2NL-25333-00-00 |
— | ||
|
18
|
18
2NL-25357-00-00 Spring, Lever Return |
2NL-25357-00-00 |
US $21.11 |
||
| replacement | |||||
|
18
|
18
3JN-25357-00-00 Lever Return Spring |
3JN-25357-00-00 |
US $21.11 |
||
|
19
|
19
2NL-27282-00-00
Pin, Shoe Hold Dn
DN |
2NL-27282-00-00 |
— | ||
|
20
|
20
2NL-27283-00-00
Cup, Shoe Hold Dn
DN |
2NL-27283-00-00 |
— | ||
|
21
|
21
2NL-27281-00-00
Spring, Shoe Clamp
|
2NL-27281-00-00 |
— | ||
|
22
|
22
2NL-27204-00-00 Lever AssemblyLever assy (left) |
2NL-27204-00-00 |
US $53.82 |
||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
2NL-27219-00-00
Washer
|
2NL-27219-00-00 |
— | ||
|
24
|
24
2NL-2536A-00-00
Retainer
|
2NL-2536A-00-00 |
— | ||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
2NL-2539E-00-00
Clip
|
2NL-2539E-00-00 |
— | ||
|
27
|
27
2NL-2536E-00-00
Clip, Spring
|
2NL-2536E-00-00 |
— | ||
|
28
|
28
2NL-2636F-00-00 Inactive Part Number |
2NL-2636F-00-00 |
US $2.50 |
||
|
29
|
29
2NL-26341-00-00 Cable, Brake |
2NL-26341-00-00 |
US $81.49 |
||
| replacement | |||||
|
29
|
29
3JN-26351-00-00
Cable, Brake
|
3JN-26351-00-00 |
— | ||
|
30
|
30
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
30
|
30
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
31
|
31
93210-11453-00 O-Ring |
93210-11453-00 |
from US $1.84 |
||
|
32
|
32
2NL-2636A-00-00
End, Wire 1
|
2NL-2636A-00-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
2NL-27209-00-00
Bckg Plt Sub Assembly 2Assembly
2ASSEMBLY |
2NL-27209-00-00 |
— | ||
| replacement | |||||
|
33
|
33
3JN-27209-00-00
Bckg Plt Sub Assembly 2Assembly
2ASSEMBLY |
3JN-27209-00-00 |
— | ||
|
34
|
34
2NL-25990-00-00
Wheel Cylinder 2
|
2NL-25990-00-00 |
— | ||
|
35
|
35
2NL-25814-00-00
Piston, Caliper
|
2NL-25814-00-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
2NL-W0069-00-00
Cup Set
|
2NL-W0069-00-00 |
— | ||
|
37
|
37
2NL-25977-00-00
Spring, Return
|
2NL-25977-00-00 |
— | ||
|
38
|
38
2NL-W2536-00-00
Brake Shoe Kit
|
2NL-W2536-00-00 |
— | ||
| replacements | |||||
|
38
|
38
3JN-W253E-00-00
Brake Shoe Set
|
3JN-W253E-00-00 |
— | ||
|
38
|
38
3JN-W2536-00-00
Brake Shoe Set
|
3JN-W2536-00-00 |
— | ||
|
39
|
39
2NL-27270-00-00
Inactive Part Number
|
2NL-27270-00-00 |
— | ||
|
40
|
40
2NL-25373-00-00
Inactive Part Number
|
2NL-25373-00-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
2NL-25333-00-00
Spring, Return
|
2NL-25333-00-00 |
— | ||
|
42
|
42
2NL-25357-00-00 Spring, Lever Return |
2NL-25357-00-00 |
US $21.11 |
||
| replacement | |||||
|
42
|
42
3JN-25357-00-00 Lever Return Spring |
3JN-25357-00-00 |
US $21.11 |
||
|
43
|
43
2NL-27282-00-00
Pin, Shoe Hold Dn
DN |
2NL-27282-00-00 |
— | ||
|
44
|
44
2NL-27283-00-00
Cup, Shoe Hold Dn
DN |
2NL-27283-00-00 |
— | ||
|
45
|
45
2NL-27281-00-00
Spring, Shoe Clamp
|
2NL-27281-00-00 |
— | ||
|
46
|
46
2NL-27205-00-00
Lever Assembly 2
|
2NL-27205-00-00 |
— | ||
|
47
|
47
2NL-27219-00-00
Washer
|
2NL-27219-00-00 |
— | ||
|
48
|
48
2NL-2536A-00-00
Retainer
|
2NL-2536A-00-00 |
— | ||
|
49
|
49
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
50
|
50
2NL-2539E-00-00
Clip
|
2NL-2539E-00-00 |
— | ||
|
51
|
51
2NL-2536E-00-00
Clip, Spring
|
2NL-2536E-00-00 |
— | ||
|
52
|
52
2NL-2636F-00-00 Inactive Part Number |
2NL-2636F-00-00 |
US $2.50 |
||
|
53
|
53
2NL-26341-00-00 Cable, Brake |
2NL-26341-00-00 |
US $81.49 |
||
| replacement | |||||
|
53
|
53
3JN-26351-00-00
Cable, Brake
|
3JN-26351-00-00 |
— | ||
|
54
|
54
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
54
|
54
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
55
|
55
93210-11453-00 O-Ring |
93210-11453-00 |
from US $1.84 |
||
|
56
|
56
2NL-2636A-00-00
End, Wire 1
|
2NL-2636A-00-00 |
— | ||
| replacement | |||||
|
56
|
56
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
57
|
57
904-45092-F6-00 Hose |
904-45092-F6-00 |
US $5.24 |
||
|
58
|
58
90467-08021-00 Clip |
90467-08021-00 |
from US $1.70 |
||
|
59
|
59
90413-05014-00 Way 3 |
90413-05014-00 |
from US $4.11 |
||
|
60
|
60
90445-092E8-00 Hose (L675) |
90445-092E8-00 |
from US $19.84 |
||
| replacement | |||||
|
60
|
60
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
61
|
61
90445-09107-00 Hose (L420) |
90445-09107-00 |
from US $6.52 |
||
| replacements | |||||
|
61
|
61
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
61
|
61
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
62
|
62
90467-08092-00 Clip |
90467-08092-00 |
from US $1.35 |
||
|
63
|
63
90468-15139-00 Clip |
90468-15139-00 |
from US $1.70 |
||
|
64
|
64
95821-08025-00 Bolt, Flange |
95821-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
64
|
64
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
65
|
65
2NL-46513-00-00
Retainer
|
2NL-46513-00-00 |
— | ||
|
66
|
66
2NL-46511-00-00
Shaft, Rear Axle 1
|
2NL-46511-00-00 |
— | ||
|
67
|
67
93210-26662-00 O-Ring |
93210-26662-00 |
from US $2.83 |
||
|
68
|
68
90387-284T0-00 Collar |
90387-284T0-00 |
from US $8.93 |
||
|
69
|
69
2NL-46512-00-00
Shaft, Rear Axle 2
|
2NL-46512-00-00 |
— | ||
|
70
|
70
93210-26662-00 O-Ring |
93210-26662-00 |
from US $2.83 |
||
|
71
|
71
90387-284T0-00 Collar |
90387-284T0-00 |
from US $8.93 |
||
|
72
|
72
93102-35349-00 Oil Seal |
93102-35349-00 |
from US $10.48 |
||
| replacement | |||||
|
72
|
72
93102-35191-00 Oil Seal (705) |
93102-35191-00 |
from US $10.48 |
||
|
73
|
73
90201-162L6-00 Washer, Plate |
90201-162L6-00 |
from US $12.33 |
||
|
74
|
74
90171-16048-00 Nut, Castle |
90171-16048-00 |
from US $16.31 |
||
| replacement | |||||
|
74
|
74
90171-16001-00 Nut, Castle |
90171-16001-00 |
from US $17.43 |
||
|
75
|
75
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
75
|
75
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
76
|
76
2NL-2512A-00-00
Cap, Wheel
|
2NL-2512A-00-00 |
— | ||
