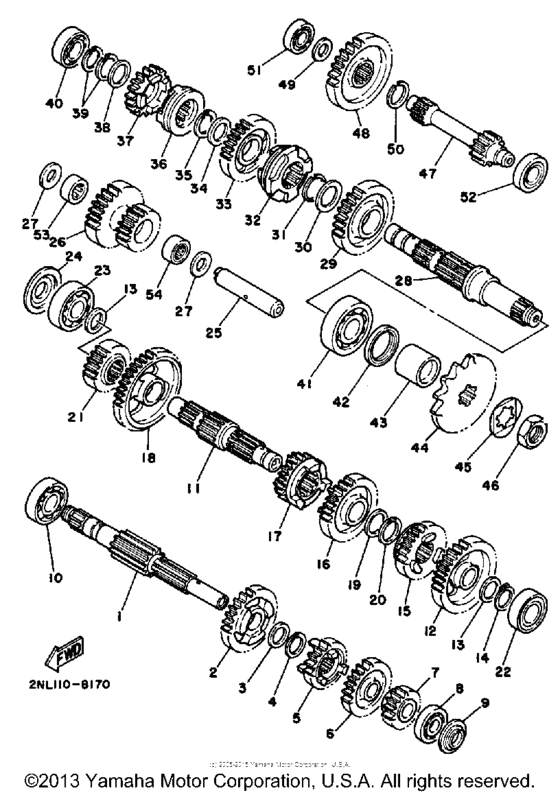

Transmission Diagram Yamaha TERRA PRO Terra Pro
- Model code
- YFP350U
- Engine Capacity
- 349
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Terra Pro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NL-17411-01-00
Axle, Main (2Nl-17411-00)
2NL-17411-00 |
2NL-17411-01-00 |
— | ||
|
2
|
2
2NL-17151-00-00
Gear, 5Th Pinion
5TH PINION |
2NL-17151-00-00 |
— | ||
|
3
|
3
90209-18208-00 Washer |
90209-18208-00 |
from US $1.84 |
||
|
4
|
4
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
5
|
5
2NL-17131-00-00
Gear, 3Rd Pinion
3RD PINION |
2NL-17131-00-00 |
— | ||
|
6
|
6
2NL-17141-00-00
Gear, 4Th Pinion
4TH PINION |
2NL-17141-00-00 |
— | ||
|
7
|
7
2NL-17121-00-00
Gear, 2Nd Pinion
2ND PINION |
2NL-17121-00-00 |
— | ||
|
8
|
8
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
9
|
9
93104-17094-00 Oil Seal |
93104-17094-00 |
from US $4.82 |
||
|
10
|
10
93306-20427-00 Bearing (62/22-9-C3) |
93306-20427-00 |
from US $24.23 |
||
| replacement | |||||
|
10
|
10
93306-20447-00 Bearing |
93306-20447-00 |
from US $24.23 |
||
|
11
|
11
2NL-17421-00-00
Axle, Drive
|
2NL-17421-00-00 |
— | ||
|
12
|
12
2NL-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
2NL-17221-00-00 |
— | ||
|
13
|
13
90201-203E7-00 Washer, Plate |
90201-203E7-00 |
from US $1.70 |
||
|
14
|
14
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
15
|
15
2NL-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
2NL-17241-00-00 |
— | ||
|
16
|
16
2NL-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
2NL-17231-00-00 |
— | ||
|
17
|
17
2NL-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
2NL-17251-00-00 |
— | ||
|
18
|
18
2NL-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
2NL-17211-00-00 |
— | ||
|
19
|
19
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
20
|
20
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
21
|
21
2NL-17123-00-00
Gear, High Pinion
|
2NL-17123-00-00 |
— | ||
|
22
|
22
933-06204-21-00
Bearing
|
933-06204-21-00 |
— | ||
| replacement | |||||
|
22
|
22
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.02 |
||
|
23
|
23
93306-30424-00 Bearing |
93306-30424-00 |
from US $26.78 |
||
| replacement | |||||
|
23
|
23
933-06304-43-00 Bearing (B6304A3) |
933-06304-43-00 |
from US $20.18 |
||
|
24
|
24
93104-20068-00 Oil Seal |
93104-20068-00 |
from US $7.08 |
||
|
25
|
25
1UY-17432-01-00 Axle, Idle |
1UY-17432-01-00 |
from US $19.27 |
||
|
26
|
26
2NL-17223-00-00
Gear, High Wheel (27T-17T)
27T-17T |
2NL-17223-00-00 |
— | ||
|
27
|
27
902-01150-H2-00
Washer, Plate
|
902-01150-H2-00 |
— | ||
| replacement | |||||
|
27
|
27
90201-150U6-00 Washer, Plate |
90201-150U6-00 |
from US $8.22 |
||
|
28
|
28
2NL-17523-00-00
Shaft
|
2NL-17523-00-00 |
— | ||
|
29
|
29
2NL-17253-00-00
Gear, Rev. Wheel 2Wheel 2 (31T)
2WHEEL 2 31T |
2NL-17253-00-00 |
— | ||
|
30
|
30
90209-27268-00
Washer, Spec''l Shap
|
90209-27268-00 |
— | ||
|
31
|
31
93440-30077-00 Circlip |
93440-30077-00 |
from US $1.70 |
||
|
32
|
32
2NL-17285-00-00
Clutch, Dog
|
2NL-17285-00-00 |
— | ||
|
33
|
33
2NL-17582-00-00
Gear, Middle Drive
|
2NL-17582-00-00 |
— | ||
|
34
|
34
902-09221-91-00 Washer |
902-09221-91-00 |
from US $1.70 |
||
|
35
|
35
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
36
|
36
2N5-11111-00-00
Rotor
IN PRICE BOOK |
2N5-11111-00-00 |
— | ||
|
37
|
37
2NL-17583-01-00
Gear, Middle Drivendriven (19T)
19T |
2NL-17583-01-00 |
— | ||
|
38
|
38
90201-203E7-00 Washer, Plate |
90201-203E7-00 |
from US $1.70 |
||
|
39
|
39
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
40
|
40
93306-00431-00 Bearing |
93306-00431-00 |
from US $22.24 |
||
|
41
|
41
933-06305-60-00 Bearing(3Rr) |
933-06305-60-00 |
from US $59.18 |
||
|
42
|
42
93102-35393-00 Oil Seal(1Uy) |
93102-35393-00 |
from US $5.67 |
||
|
43
|
43
903-87253-T3-00 Collar |
903-87253-T3-00 |
from US $28.62 |
||
| replacement | |||||
|
43
|
43
90387-2511R-00 Collar |
90387-2511R-00 |
from US $28.62 |
||
|
44
|
44
938-34150-87-00 Sprocket, Drive 15T (1A1174615015T 1A11746150 |
938-34150-87-00 |
US $18.43 |
||
|
45
|
45
90215-21239-00 Washer, Lock (23X) |
90215-21239-00 |
from US $2.98 |
||
|
46
|
46
90179-20255-00 Nut |
90179-20255-00 |
from US $5.30 |
||
|
47
|
47
2NL-17431-00-00
Axle, Counter
|
2NL-17431-00-00 |
— | ||
|
48
|
48
2NL-17243-00-00
Gear, Rev. Wheel 1Wheel 1 (37T)
1WHEEL 1 37T |
2NL-17243-00-00 |
— | ||
|
49
|
49
90201-17255-00 Washer, Plate |
90201-17255-00 |
from US $1.70 |
||
| replacement | |||||
|
49
|
49
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.70 |
||
|
50
|
50
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
51
|
51
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
52
|
52
933-06003-15-00 Bearing(2Jn) |
933-06003-15-00 |
from US $24.09 |
||
|
53
|
53
93311-51554-00 Bearing |
93311-51554-00 |
from US $35.99 |
||
|
54
|
54
93311-41566-00 Bearing Cylinder. (2Nl) |
93311-41566-00 |
from US $34.99 |
||
