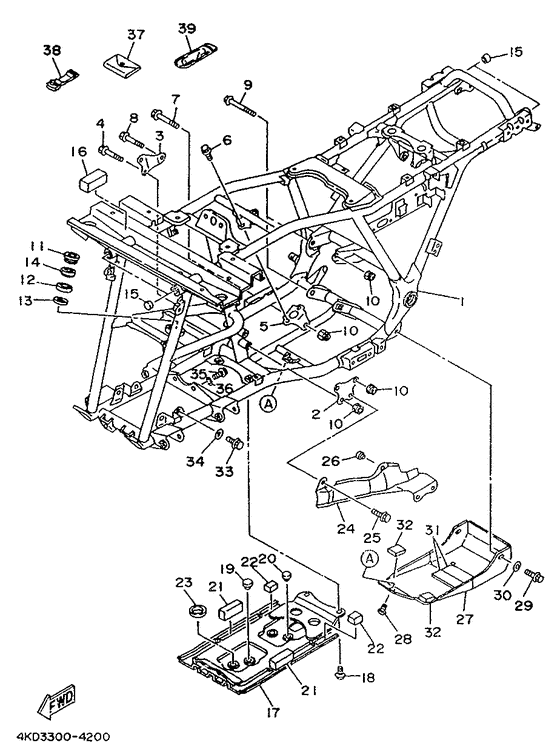

Frame Diagram Yamaha TIMBERWOLF 250 Timberwolf 4WD
- Model code
- 4KD3
- Engine Capacity
- 229
- Year
- 1994
- Sales region
- South Africa (999)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Timberwolf 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KD-21110-10-R4
Frame Comp
Black (for electrodeposit) |
4KD-21110-10-R4 |
— | ||
|
02
|
02
4KD-21316-00-00 Stay, Engine 2 |
4KD-21316-00-00 |
US $15.70 |
||
|
03
|
03
4KD-21317-00-00 Stay, Engine 3 |
4KD-21317-00-00 |
US $16.25 |
||
|
04
|
04
95811-08080-00 Bolt, Flange (4G0) |
95811-08080-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
95817-08080-00 Bolt, Flange |
95817-08080-00 |
from US $1.42 |
||
|
05
|
05
3KD-21315-00-00
Stay, Engine 2
|
3KD-21315-00-00 |
— | ||
|
06
|
06
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
06
|
06
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
07
|
07
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
07
|
07
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
08
|
08
95811-08065-00 Bolt, Flange |
95811-08065-00 |
from US $3.02 |
||
| replacements | |||||
|
08
|
08
95814-08065-00 Bolt, Flange |
95814-08065-00 |
from US $3.54 |
||
|
08
|
08
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $4.79 |
||
|
09
|
09
90105-08120-00 Bolt, Flange |
90105-08120-00 |
from US $7.51 |
||
| replacement | |||||
|
09
|
09
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
10
|
10
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
11
|
11
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
12
|
12
93306-20331-00 Bearing |
93306-20331-00 |
from US $19.55 |
||
| replacement | |||||
|
12
|
12
933-06203-48-00 Bearing |
933-06203-48-00 |
from US $16.88 |
||
|
13
|
13
93102-25099-00 Oil Seal |
93102-25099-00 |
from US $6.96 |
||
|
14
|
14
2GU-23872-00-00 Holder, Bearing |
2GU-23872-00-00 |
from US $11.76 |
||
|
15
|
15
90336-22056-00 Plug, Taper |
90336-22056-00 |
from US $1.80 |
||
|
16
|
16
56J-2472F-00-00 Support, Tail Cover |
56J-2472F-00-00 |
from US $3.09 |
||
|
17
|
17
4KD-2147A-00-00
Guard, Engine 1
|
4KD-2147A-00-00 |
— | ||
|
18
|
18
92016-08014-00 Bolt, Button HeadBolt, button head |
92016-08014-00 |
from US $2.55 |
||
| replacement | |||||
|
18
|
18
92017-08014-00 Bolt, Button |
92017-08014-00 |
from US $2.55 |
||
|
19
|
19
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
|
20
|
20
278-27114-00-00 Stopper, Main Stand |
278-27114-00-00 |
from US $4.68 |
||
|
21
|
21
56J-2472F-00-00 Support, Tail Cover |
56J-2472F-00-00 |
from US $3.09 |
||
|
22
|
22
1WG-2143A-00-00 Cap |
1WG-2143A-00-00 |
from US $5.67 |
||
|
23
|
23
4KD-21485-00-00
Damper, Rubber 1
|
4KD-21485-00-00 |
— | ||
|
24
|
24
4KD-2147K-00-00
Cover, Shaft 2
|
4KD-2147K-00-00 |
— | ||
|
25
|
25
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
25
|
25
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
26
|
26
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.26 |
||
|
27
|
27
4KD-2147H-00-00 Stay, Transfer |
4KD-2147H-00-00 |
US $184.07 |
||
|
28
|
28
92016-08014-00 Bolt, Button HeadBolt, button head |
92016-08014-00 |
from US $2.55 |
||
| replacement | |||||
|
28
|
28
92017-08014-00 Bolt, Button |
92017-08014-00 |
from US $2.55 |
||
|
29
|
29
95816-08016-00 Bolt, Flange |
95816-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
29
|
29
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
29
|
29
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
30
|
30
90201-081H4-00 Washer, Plate |
90201-081H4-00 |
from US $1.70 |
||
| replacements | |||||
|
30
|
30
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
30
|
30
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.66 |
||
|
31
|
31
38V-21486-00-00 Damper 2 |
38V-21486-00-00 |
from US $14.54 |
||
|
32
|
32
36F-21638-00-00 Damper 1 |
36F-21638-00-00 |
US $4.23 |
||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
95811-10025-00 Bolt, Flange (13W) |
95811-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
33
|
33
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.07 |
||
|
34
|
34
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
|
35
|
35
97011-08045-00 Bolt(4Gb) |
97011-08045-00 |
from US $1.84 |
||
| replacement | |||||
|
35
|
35
97017-08045-00 Bolt(3Hn) |
97017-08045-00 |
from US $1.84 |
||
|
36
|
36
90201-083P5-00 Washer, Plate |
90201-083P5-00 |
from US $1.70 |
||
|
37
|
37
2VA-28100-00-00
Tool Kit
|
2VA-28100-00-00 |
— | ||
| replacements | |||||
|
37
|
37
3GH-28100-00-00
Tool Kit
|
3GH-28100-00-00 |
— | ||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
|
39
|
39
1NV-2811A-00-00 Gauge, Air |
1NV-2811A-00-00 |
from US $27.34 |
||
| replacement | |||||
|
39
|
39
1NV-2811A-01-00 Gauge, Air |
1NV-2811A-01-00 |
from US $27.34 |
||
