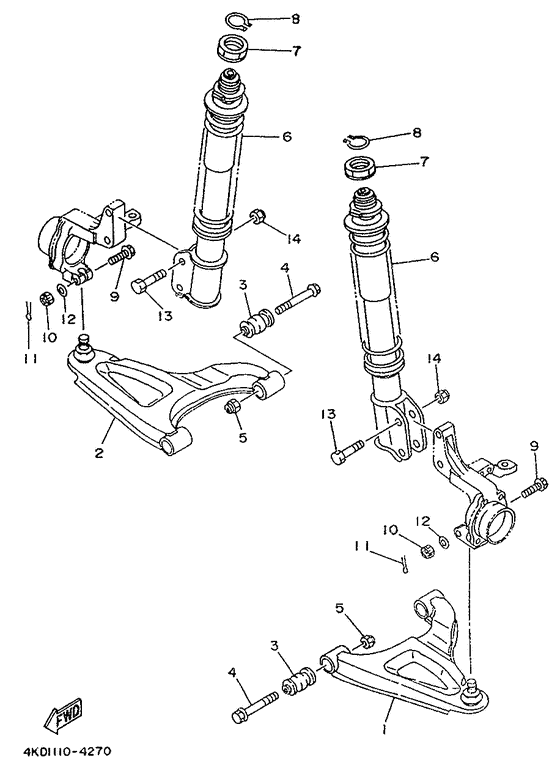

Front suspension wheel Diagram Yamaha TIMBERWOLF 250 Timberwolf 4WD
- Model code
- 4KD3
- Engine Capacity
- 229
- Year
- 1994
- Sales region
- South Africa (999)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Timberwolf 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KD-23570-00-33 Front Lower Arm Comp. (Left)Yamaha black |
4KD-23570-00-33 |
US $179.82 |
||
| replacement | |||||
|
01
|
01
4KD-23570-02-00
Front Lower Arm Comp. (Left)
Yamaha black |
4KD-23570-02-00 |
— | ||
|
02
|
02
4KD-23580-00-33 Front Lower Arm Comp. (Right)Yamaha blcak |
4KD-23580-00-33 |
US $182 |
||
| replacement | |||||
|
02
|
02
4KD-23580-02-00 Front Lower Arm Comp. (Right)Yamaha blcak |
4KD-23580-02-00 |
US $179.82 |
||
|
03
|
03
2HR-23526-00-00 Bush |
2HR-23526-00-00 |
from US $13.74 |
||
|
04
|
04
901-05102-53-00 Bolt, Flange |
901-05102-53-00 |
from US $5.81 |
||
| replacement | |||||
|
04
|
04
90105-10788-00 Bolt, Flange |
90105-10788-00 |
from US $5.81 |
||
|
05
|
05
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
|
06
|
06
4KD-23350-00-33 Shock Absorber AssemblyYamaha black |
4KD-23350-00-33 |
US $662.47 |
||
| replacement | |||||
|
06
|
06
4KD-23350-10-33 Shock Absorber AssyYamaha black |
4KD-23350-10-33 |
US $662.47 |
||
|
07
|
07
90179-35625-00 Nut |
90179-35625-00 |
from US $9.63 |
||
| replacement | |||||
|
07
|
07
90179-35002-00 Nut |
90179-35002-00 |
from US $9.63 |
||
|
08
|
08
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $1.66 |
||
|
09
|
09
90105-10728-00 Bolt, Flange |
90105-10728-00 |
from US $5.81 |
||
| replacement | |||||
|
09
|
09
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
10
|
10
95332-10600-00 Nut |
95332-10600-00 |
from US $2.27 |
||
| replacement | |||||
|
10
|
10
95337-10600-00 Nut |
95337-10600-00 |
from US $2.27 |
||
|
11
|
11
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
12
|
12
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.27 |
||
|
13
|
13
90101-12570-00 Bolt |
90101-12570-00 |
from US $9.63 |
||
|
14
|
14
95611-12100-00 Nut, U |
95611-12100-00 |
from US $3.12 |
||
| replacement | |||||
|
14
|
14
95617-12100-00 Nut, U |
95617-12100-00 |
from US $3.12 |
||
