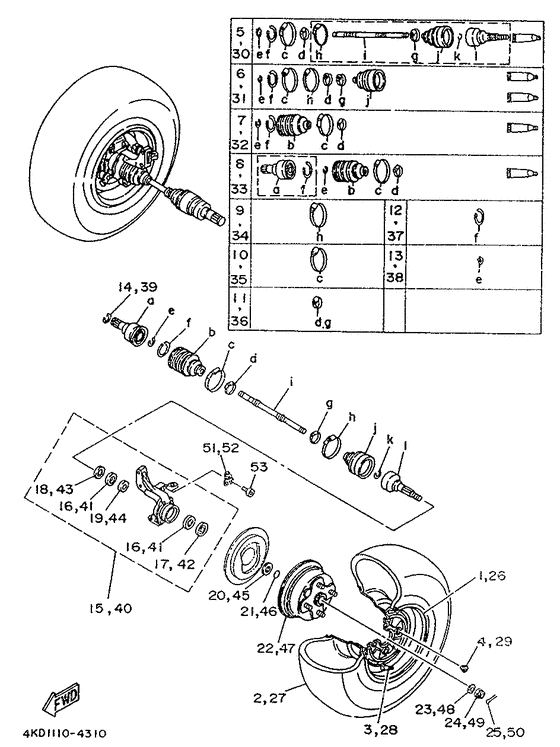

Front wheel Diagram Yamaha TIMBERWOLF 250 Timberwolf 4WD
- Model code
- 4KD3
- Engine Capacity
- 229
- Year
- 1994
- Sales region
- South Africa (999)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Timberwolf 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KD-25180-00-35
Wheel Comp
Silver |
4KD-25180-00-35 |
— | ||
|
02
|
02
94108-1002G-00
Tire (At23X8-10 Kt401)
Dunlop |
94108-1002G-00 |
— | ||
|
03
|
03
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
04
|
04
90179-10540-00 Nut |
90179-10540-00 |
from US $2.27 |
||
|
05
|
05
4KD-2510F-01-00
Ball Joint Set
|
4KD-2510F-01-00 |
— | ||
|
06
|
06
2HN-2510G-00-00
Boot Set (Ball Joint)
|
2HN-2510G-00-00 |
— | ||
|
07
|
07
3HN-2510J-00-00 Double Offset Joint |
3HN-2510J-00-00 |
from US $499.22 |
||
|
08
|
08
2HN-2511G-00-00
Boot Band (Ball Joint)
|
2HN-2511G-00-00 |
— | ||
|
09
|
09
2HR-2511H-00-00 Boot Band (Double Offset Joint |
2HR-2511H-00-00 |
from US $7.64 |
||
| replacement | |||||
|
09
|
09
3HN-2511H-00-00 Boot Band(Double Offsetjoint) |
3HN-2511H-00-00 |
from US $7.64 |
||
|
10
|
10
2HN-2511H-00-00
Boot Band (Double Offset Joint
|
2HN-2511H-00-00 |
— | ||
|
11
|
11
2HR-2512G-00-00 Boot Band (Small) |
2HR-2512G-00-00 |
from US $6.32 |
||
| replacement | |||||
|
11
|
11
3HN-2512G-01-00 Boot Band (Small) |
3HN-2512G-01-00 |
from US $6.94 |
||
|
12
|
12
2HR-2512H-00-00 Circlip |
2HR-2512H-00-00 |
from US $7.51 |
||
|
13
|
13
2HR-2512J-00-00 Snap Ring |
2HR-2512J-00-00 |
from US $3.40 |
||
|
14
|
14
93450-22119-00 Circlip |
93450-22119-00 |
from US $1.70 |
||
|
15
|
15
4KD-23501-00-00 Steering Knuckle Assy (Left) |
4KD-23501-00-00 |
US $407.41 |
||
| replacement | |||||
|
15
|
15
4KD-23501-01-00 Steering, Knuckle Assy (Left) |
4KD-23501-01-00 |
US $407.41 |
||
|
16
|
16
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $23.09 |
||
|
17
|
17
93102-38383-00 Oil Seal |
93102-38383-00 |
from US $8.36 |
||
| replacement | |||||
|
17
|
17
93106-38046-00 Oil Seal |
93106-38046-00 |
from US $7.28 |
||
|
18
|
18
93102-38417-00 Oil Seal |
93102-38417-00 |
from US $15.58 |
||
| replacement | |||||
|
18
|
18
93106-38047-00 Oil Seal |
93106-38047-00 |
from US $19.84 |
||
|
19
|
19
90560-30325-00 Spacer |
90560-30325-00 |
from US $5.96 |
||
|
20
|
20
90387-281V8-00 Collar |
90387-281V8-00 |
from US $24.09 |
||
|
21
|
21
93210-26662-00 O-Ring |
93210-26662-00 |
from US $2.83 |
||
|
22
|
22
3HN-25111-10-00
Hub, Front
|
3HN-25111-10-00 |
— | ||
|
23
|
23
90201-163M0-00 Washer, Plate |
90201-163M0-00 |
from US $9.35 |
||
|
24
|
24
90171-16048-00 Nut, Castle |
90171-16048-00 |
from US $16.31 |
||
| replacement | |||||
|
24
|
24
90171-16001-00 Nut, Castle |
90171-16001-00 |
from US $17.43 |
||
|
25
|
25
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
25
|
25
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
26
|
26
4KD-25180-00-35
Wheel Comp
Silver |
4KD-25180-00-35 |
— | ||
|
27
|
27
94108-1002G-00
Tire (At23X8-10 Kt401)
Dunlop |
94108-1002G-00 |
— | ||
|
28
|
28
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
29
|
29
90179-10540-00 Nut |
90179-10540-00 |
from US $2.27 |
||
|
30
|
30
4KD-2510F-01-00
Ball Joint Set
|
4KD-2510F-01-00 |
— | ||
|
31
|
31
3HN-2510G-00-00 Boot Set (Ball Joint) |
3HN-2510G-00-00 |
from US $94.23 |
||
|
32
|
32
3HN-2510H-00-00 Boot Set(Double Offset Joint) |
3HN-2510H-00-00 |
from US $82.07 |
||
|
33
|
33
3HN-2510J-00-00 Double Offset Joint |
3HN-2510J-00-00 |
from US $499.22 |
||
|
34
|
34
2HR-2511G-00-00 Circlip |
2HR-2511G-00-00 |
from US $7.79 |
||
| replacement | |||||
|
34
|
34
3HN-2511G-01-00 Boot Band (Ball Joint) |
3HN-2511G-01-00 |
from US $7.79 |
||
|
35
|
35
3HN-2512G-00-00
Boot Band (Small)
|
3HN-2512G-00-00 |
— | ||
|
36
|
36
2HR-2512G-00-00 Boot Band (Small) |
2HR-2512G-00-00 |
from US $6.32 |
||
| replacement | |||||
|
36
|
36
3HN-2512G-01-00 Boot Band (Small) |
3HN-2512G-01-00 |
from US $6.94 |
||
|
37
|
37
2HR-2512H-00-00 Circlip |
2HR-2512H-00-00 |
from US $7.51 |
||
|
38
|
38
2HR-2512J-00-00 Snap Ring |
2HR-2512J-00-00 |
from US $3.40 |
||
|
39
|
39
93450-22119-00 Circlip |
93450-22119-00 |
from US $1.70 |
||
|
40
|
40
4KD-23502-00-00
Steering Knuckle Assy (Right)
|
4KD-23502-00-00 |
— | ||
| replacement | |||||
|
40
|
40
4KD-23502-01-00
Steering, Knuckle Assy (Right)
|
4KD-23502-01-00 |
— | ||
|
41
|
41
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $23.09 |
||
|
42
|
42
93102-38383-00 Oil Seal |
93102-38383-00 |
from US $8.36 |
||
| replacement | |||||
|
42
|
42
93106-38046-00 Oil Seal |
93106-38046-00 |
from US $7.28 |
||
|
43
|
43
93102-38417-00 Oil Seal |
93102-38417-00 |
from US $15.58 |
||
| replacement | |||||
|
43
|
43
93106-38047-00 Oil Seal |
93106-38047-00 |
from US $19.84 |
||
|
44
|
44
90560-30325-00 Spacer |
90560-30325-00 |
from US $5.96 |
||
|
45
|
45
90387-281V8-00 Collar |
90387-281V8-00 |
from US $24.09 |
||
|
46
|
46
93210-26662-00 O-Ring |
93210-26662-00 |
from US $2.83 |
||
|
47
|
47
3HN-25111-10-00
Hub, Front
|
3HN-25111-10-00 |
— | ||
|
48
|
48
90201-163M0-00 Washer, Plate |
90201-163M0-00 |
from US $9.35 |
||
|
49
|
49
90171-16048-00 Nut, Castle |
90171-16048-00 |
from US $16.31 |
||
| replacement | |||||
|
49
|
49
90171-16001-00 Nut, Castle |
90171-16001-00 |
from US $17.43 |
||
|
50
|
50
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
50
|
50
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
51
|
51
4KD-2637G-00-00 Holder, Wire |
4KD-2637G-00-00 |
US $25.25 |
||
|
52
|
52
4KD-2637H-00-00 Holder, Wire 2 |
4KD-2637H-00-00 |
US $25.78 |
||
|
53
|
53
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
53
|
53
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
53
|
53
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
