Camshaft & chain Diagram Yamaha TIMBERWOLF 250 Timberwolf 2WD
- Model code
- TIMBERWOLF 2WD (ME & NH Only) - YFB250FWJ_MNH - 1997
- Engine Capacity
- 229
- Year
- 1997
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Timberwolf 2WD
Difficulties in parts search?
Difficulties in parts search?

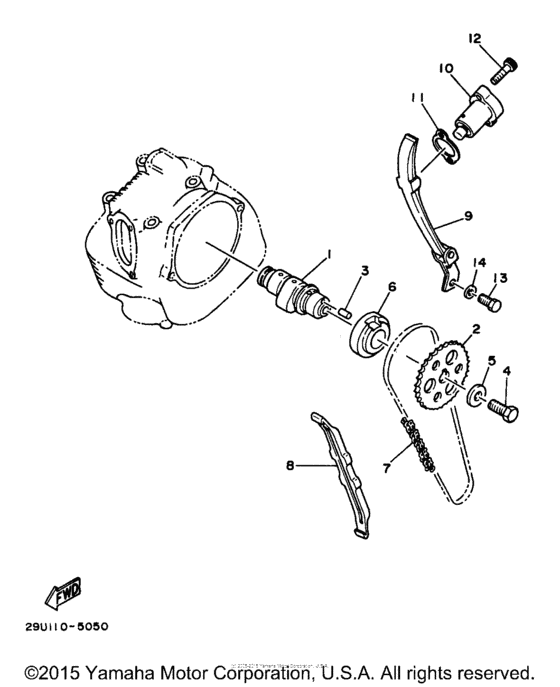

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1KH-12171-00-00 Camshaft 1UR |
1KH-12171-00-00 |
from US $179.61 |
||
| replacement | |||||
|
1
|
1
1KH-12171-01-00 UR |
1KH-12171-01-00 |
US $194.56 |
||
|
2
|
2
2LN-12176-00-00 Sprocket, Cam Chain (40T)40T UR |
2LN-12176-00-00 |
from US $77.72 |
||
| replacement | |||||
|
2
|
2
2LN-12176-01-00 40T UR |
2LN-12176-01-00 |
US $75.22 |
||
|
3
|
3
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.36 |
||
|
4
|
4
90101-10303-00 Bolt |
90101-10303-00 |
from US $3.40 |
||
|
5
|
5
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
|
6
|
6
90387-251T0-00 Collar |
90387-251T0-00 |
from US $25.93 |
||
|
7
|
7
945-80411-04-00 Chain (Did25Sh 104L) |
945-80411-04-00 |
from US $38.55 |
||
|
8
|
8
5H0-12231-00-00 Guide, Stopper 1 |
5H0-12231-00-00 |
from US $25.33 |
||
| replacement | |||||
|
8
|
8
5H0-12231-01-00 GUIDE STOPPER 1 |
5H0-12231-01-00 |
from US $19.54 |
||
|
9
|
9
5N0-12241-00-00 Guide, Stopper 2 |
5N0-12241-00-00 |
from US $42.76 |
||
| replacement | |||||
|
9
|
9
5N0-12241-01-00 |
5N0-12241-01-00 |
US $63.70 |
||
|
10
|
10
3GC-12210-10-00 P97 Tensioner Assy, Cam |
3GC-12210-10-00 |
from US $56.65 |
||
|
11
|
11
4BE-12213-00-00
Gasket, Tensioner Case
|
4BE-12213-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4FM-12213-00-00 Gasket, Tensioner Case |
4FM-12213-00-00 |
from US $1.56 |
||
|
12
|
12
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.98 |
||
|
13
|
13
970-27060-16-00
Bolt
|
970-27060-16-00 |
— | ||
| replacement | |||||
|
13
|
13
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
