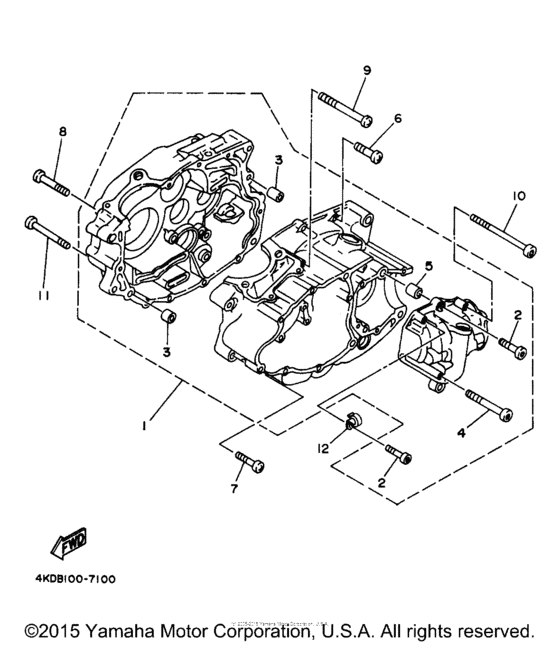

Crankcase Diagram Yamaha TIMBERWOLF 250 Timberwolf 2WD
- Model code
- TIMBERWOLF 2WD (ME & NH Only) - YFB250FWJ_MNH - 1997
- Engine Capacity
- 229
- Year
- 1997
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Timberwolf 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BD-15100-10-00
Crankcase Assembly
|
4BD-15100-10-00 |
— | ||
|
2
|
2
90110-06237-00 Bolt, Hexagon Socket Head |
90110-06237-00 |
from US $1.78 |
||
| replacements | |||||
|
2
|
2
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
2
|
2
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
3
|
3
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
3
|
3
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
3
|
3
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
4
|
4
91317-06085-00 Bolt |
91317-06085-00 |
from US $3.74 |
||
|
5
|
5
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
5
|
5
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
6
|
6
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.36 |
||
|
7
|
7
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
8
|
8
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.36 |
||
|
9
|
9
98507-06085-00 Screw, Pan Head |
98507-06085-00 |
from US $3.97 |
||
|
10
|
10
91317-06160-00 Bolt |
91317-06160-00 |
US $21.29 |
||
|
11
|
11
98507-06075-00 Screw, Pan Head |
98507-06075-00 |
from US $1.56 |
||
|
12
|
12
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
