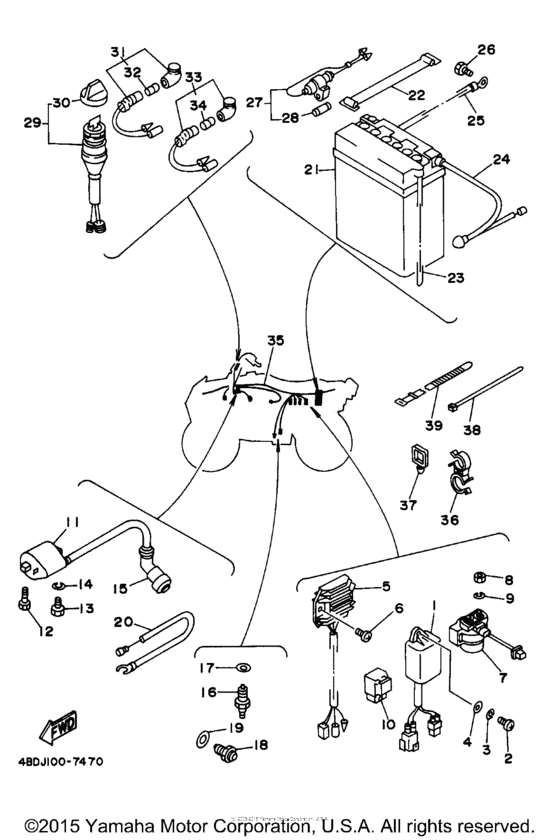

Electrical (1) Diagram Yamaha TIMBERWOLF 250 Timberwolf 2WD
- Model code
- TIMBERWOLF 2WD (ME & NH Only) - YFB250FWJ_MNH - 1997
- Engine Capacity
- 229
- Year
- 1997
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Timberwolf 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BD-85540-10-00 C.d.i. Unit Assy |
4BD-85540-10-00 |
from US $309.48 |
||
|
2
|
2
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
3
|
3
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
5
|
5
4KB-81960-01-00 Rectifier & Regulator Assy |
4KB-81960-01-00 |
from US $183.75 |
||
| replacement | |||||
|
5
|
5
4KB-81960-02-00 Rectifier & Regulator Assy |
4KB-81960-02-00 |
from US $183.75 |
||
|
6
|
6
98907-06020-00 Screw, Bind |
98907-06020-00 |
from US $1.33 |
||
|
7
|
7
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
8
|
8
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
8
|
8
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
9
|
9
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
10
|
10
1RL-81950-92-00 Relay Assy (1Rl-92) |
1RL-81950-92-00 |
from US $57.75 |
||
| replacements | |||||
|
10
|
10
12R-81950-01-00 Relay Assy (12R-01) |
12R-81950-01-00 |
from US $57.75 |
||
|
10
|
10
12R-81950-02-00 RELAY ASSY |
12R-81950-02-00 |
from US $51.84 |
||
|
11
|
11
3GD-82310-10-00 Ignition Coil Assy |
3GD-82310-10-00 |
from US $135.67 |
||
|
12
|
12
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
13
|
13
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
13
|
13
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
15
|
15
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
| replacement | |||||
|
15
|
15
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.24 |
||
|
16
|
16
3GB-82540-00-00 Neutral Switch Assy |
3GB-82540-00-00 |
from US $18.42 |
||
| replacement | |||||
|
16
|
16
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
17
|
17
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
18
|
18
3G1-82540-01-00 Neutral Switch Assy |
3G1-82540-01-00 |
from US $28.90 |
||
| replacement | |||||
|
18
|
18
4KD-82540-00-00 Neutral Switch Assy |
4KD-82540-00-00 |
from US $28.90 |
||
|
19
|
19
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
20
|
20
4KD-82507-00-00 Wire, Lead |
4KD-82507-00-00 |
from US $7.63 |
||
| replacement | |||||
|
20
|
20
4BD-82507-00-00 Wire, Lead |
4BD-82507-00-00 |
from US $7.63 |
||
|
21
|
21
BTG-GM12C-Z4-A2
Cb12Ca Gs Battery
UR |
BTG-GM12C-Z4-A2 |
— | ||
| replacements | |||||
|
21
|
21
CB1-2CA00-00-00
PACKING
UR |
CB1-2CA00-00-00 |
— | ||
|
21
|
21
ACB-12CA0-00-00
Acb12Ca Gs Battery W
UR |
ACB-12CA0-00-00 |
— | ||
|
22
|
22
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
23
|
23
90445-083F2-00 Hose (L620) |
90445-083F2-00 |
from US $10.91 |
||
| replacement | |||||
|
23
|
23
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.42 |
||
|
24
|
24
4BD-82115-01-00
Wire, Plus Lead
|
4BD-82115-01-00 |
— | ||
|
25
|
25
3WP-82116-00-00
Wire, Minus Lead
|
3WP-82116-00-00 |
— | ||
| replacement | |||||
|
25
|
25
89H-82116-00-00
Wire, Minus Lead
|
89H-82116-00-00 |
— | ||
|
26
|
26
90153-06044-00 Screw, Hexagon |
90153-06044-00 |
from US $2.05 |
||
|
27
|
27
59V-82150-00-00 Fuse Holder Assy |
59V-82150-00-00 |
US $83.65 |
||
| replacement | |||||
|
27
|
27
2NL-82150-00-00 Fuse Holder Assy |
2NL-82150-00-00 |
US $83.65 |
||
|
28
|
28
705-82151-00-00 Fuse (30A)30A |
705-82151-00-00 |
US $3.97 |
||
| replacement | |||||
|
28
|
28
705-82151-01-00 FUSE 30A30A |
705-82151-01-00 |
from US $3.97 |
||
|
29
|
29
4GB-82510-00-00 Main Switch Assy |
4GB-82510-00-00 |
from US $74.47 |
||
| replacements | |||||
|
29
|
29
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
|
29
|
29
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
US $72.76 |
||
|
30
|
30
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.40 |
||
|
31
|
31
24W-83530-01-00 Pilot Light Assy |
24W-83530-01-00 |
from US $26.07 |
||
| replacement | |||||
|
31
|
31
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
32
|
32
123-83516-21-XX Bulb (12V-3.4W)12V-3. 4W |
123-83516-21-XX |
US $63.70 |
||
| replacement | |||||
|
32
|
32
123-83516-21-00 Bulb (12V3.4W)12V-3. 4W |
123-83516-21-00 |
from US $3.26 |
||
|
33
|
33
52G-83530-01-00 Pilot Light Assy |
52G-83530-01-00 |
from US $25.50 |
||
| replacement | |||||
|
33
|
33
52G-83530-10-00 Pilot Light Assy |
52G-83530-10-00 |
from US $25.50 |
||
|
34
|
34
123-83516-21-XX Bulb (12V-3.4W)12V-3. 4W |
123-83516-21-XX |
US $63.70 |
||
| replacement | |||||
|
34
|
34
123-83516-21-00 Bulb (12V3.4W)12V-3. 4W |
123-83516-21-00 |
from US $3.26 |
||
|
35
|
35
4BD-82590-30-00
Wire Harness Assy
|
4BD-82590-30-00 |
— | ||
|
36
|
36
90464-28153-00 Clamp |
90464-28153-00 |
from US $3.40 |
||
|
37
|
37
90464-16025-00 Clamp |
90464-16025-00 |
from US $1.42 |
||
|
38
|
38
90464-13080-00 Band |
90464-13080-00 |
from US $1.28 |
||
| replacement | |||||
|
38
|
38
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
39
|
39
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
