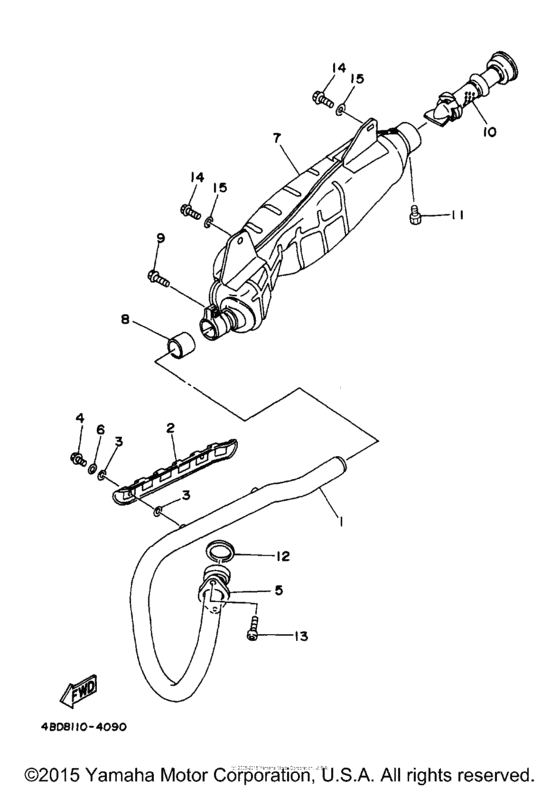

Exhaust Diagram Yamaha TIMBERWOLF 250 Timberwolf 2WD
- Model code
- TIMBERWOLF 2WD (ME & NH Only) - YFB250FWJ_MNH - 1997
- Engine Capacity
- 229
- Year
- 1997
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Timberwolf 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KD-14611-00-00 Pipe, Exhaust 1UR |
4KD-14611-00-00 |
US $240.53 |
||
|
2
|
2
3Y1-14628-00-00
Protector, Exhaust Pipe
|
3Y1-14628-00-00 |
— | ||
|
3
|
3
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $1.70 |
||
|
4
|
4
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
5
|
5
5H0-14612-00-00 Nut, Ring |
5H0-14612-00-00 |
from US $11.19 |
||
| replacement | |||||
|
5
|
5
5H0-14612-01-00 Nut, Ring |
5H0-14612-01-00 |
from US $11.19 |
||
|
6
|
6
90206-06090-00 Washer, Wave(3Rw) J |
90206-06090-00 |
from US $1.36 |
||
|
7
|
7
4BD-14711-00-00 Muffler 1 |
4BD-14711-00-00 |
from US $420.05 |
||
| replacement | |||||
|
7
|
7
4BD-14711-01-00 Muffler 1 |
4BD-14711-01-00 |
from US $502.85 |
||
|
8
|
8
3YF-14714-00-00 Gasket, Muffler |
3YF-14714-00-00 |
from US $19.13 |
||
|
9
|
9
95027-08025-00 Bolt, Flange(4My) |
95027-08025-00 |
from US $1.56 |
||
|
10
|
10
21V-14752-00-00 Pipe, Outlet |
21V-14752-00-00 |
from US $85.38 |
||
|
11
|
11
97007-06008-00 Bolt, Hex |
97007-06008-00 |
from US $2.83 |
||
| replacement | |||||
|
11
|
11
97017-06008-00 Bolt |
97017-06008-00 |
from US $2.83 |
||
|
12
|
12
4BE-14613-00-00 Gasket, Exhaust Pipe |
4BE-14613-00-00 |
from US $2.36 |
||
|
13
|
13
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
14
|
14
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
15
|
15
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
