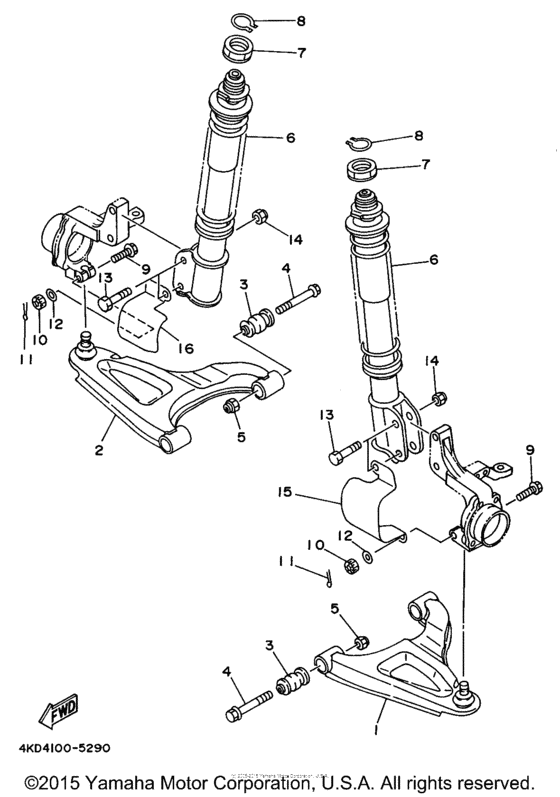

Front suspension - wheel Diagram Yamaha TIMBERWOLF 250 Timberwolf 4WD
- Model code
- YFB250FWF_MNH (ME & NH Only) - 1994
- Engine Capacity
- 229
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Timberwolf 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KD-23570-00-33 Front Lower Arm Comp. (Left) |
4KD-23570-00-33 |
US $179.82 |
||
| replacement | |||||
|
1
|
1
4KD-23570-02-00
Front Lower Arm Comp. (Left)
|
4KD-23570-02-00 |
— | ||
|
2
|
2
4KD-23580-00-33 Front Lower Arm Comp. (Right) |
4KD-23580-00-33 |
US $182 |
||
| replacement | |||||
|
2
|
2
4KD-23580-02-00 Front Lower Arm Comp. (Right) |
4KD-23580-02-00 |
US $179.82 |
||
|
3
|
3
2HR-23526-00-00 Bush |
2HR-23526-00-00 |
from US $13.74 |
||
|
4
|
4
901-05102-53-00 Bolt, Flange |
901-05102-53-00 |
from US $5.81 |
||
| replacement | |||||
|
4
|
4
90105-10788-00 Bolt, Flange |
90105-10788-00 |
from US $5.81 |
||
|
5
|
5
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.24 |
||
|
6
|
6
4KD-23350-10-33 Shock Absorber Assy |
4KD-23350-10-33 |
US $662.47 |
||
|
7
|
7
90179-35625-00 Nut |
90179-35625-00 |
from US $9.63 |
||
| replacement | |||||
|
7
|
7
90179-35002-00 Nut |
90179-35002-00 |
from US $9.63 |
||
|
8
|
8
934-10320-75-00 Circlip |
934-10320-75-00 |
from US $1.70 |
||
|
9
|
9
90105-10728-00 Bolt, Flange |
90105-10728-00 |
from US $5.81 |
||
| replacement | |||||
|
9
|
9
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.55 |
||
|
10
|
10
95337-10600-00 Nut |
95337-10600-00 |
from US $2.27 |
||
|
11
|
11
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
12
|
12
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.27 |
||
|
13
|
13
90101-12570-00 Bolt |
90101-12570-00 |
from US $9.63 |
||
|
14
|
14
95617-12100-00 Nut, U |
95617-12100-00 |
from US $3.12 |
||
|
15
|
15
4KD-2331M-00-00 Cover, Ring |
4KD-2331M-00-00 |
US $33.77 |
||
|
16
|
16
4KD-2331N-00-00 Cover, Ring |
4KD-2331N-00-00 |
US $36.13 |
||
