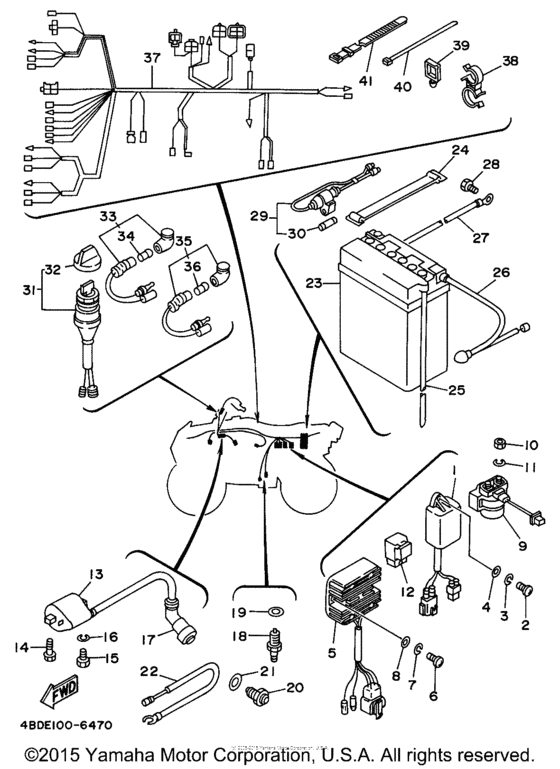

Electrical (1) Diagram Yamaha TIMBERWOLF 250 Timberwolf 2WD
- Model code
- YFB250H
- Engine Capacity
- 229
- Year
- 1996
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Timberwolf 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BD-85540-10-00 C.d.i. Unit Assy |
4BD-85540-10-00 |
from US $309.48 |
||
|
2
|
2
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
3
|
3
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
4
|
4
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
5
|
5
4GB-81960-00-00 Rectifier & Regulator Assembly |
4GB-81960-00-00 |
from US $268.20 |
||
|
6
|
6
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
7
|
7
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
4KB-81940-00-00 Starter Relay Assy (Rc19-013) |
4KB-81940-00-00 |
from US $74.32 |
||
| replacement | |||||
|
9
|
9
4KB-81940-01-00 Starter Relay Assy (Rc19-013) |
4KB-81940-01-00 |
from US $121.19 |
||
|
10
|
10
95307-06700-00 Nut |
95307-06700-00 |
from US $1.21 |
||
| replacement | |||||
|
10
|
10
95317-06700-00 Nut(Jn5) |
95317-06700-00 |
from US $1.21 |
||
|
11
|
11
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
12
|
12
1RL-81950-92-00 Relay Assy (1Rl-92)1RL-92 |
1RL-81950-92-00 |
from US $57.75 |
||
| replacements | |||||
|
12
|
12
12R-81950-01-00 Relay Assy (12R-01)1RL-92 |
12R-81950-01-00 |
from US $57.75 |
||
|
12
|
12
12R-81950-02-00 RELAY ASSY1RL-92 |
12R-81950-02-00 |
from US $53.20 |
||
|
13
|
13
3GD-82310-10-00 Ignition Coil Assy |
3GD-82310-10-00 |
from US $135.67 |
||
|
14
|
14
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
15
|
15
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
17
|
17
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
17
|
17
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
17
|
17
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
|
18
|
18
3GB-82540-00-00 Neutral Switch Assy |
3GB-82540-00-00 |
from US $18.42 |
||
| replacement | |||||
|
18
|
18
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $20.25 |
||
|
19
|
19
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
20
|
20
3G1-82540-01-00 Neutral Switch Assy |
3G1-82540-01-00 |
from US $28.90 |
||
| replacement | |||||
|
20
|
20
4KD-82540-00-00 Neutral Switch Assy |
4KD-82540-00-00 |
from US $28.90 |
||
|
21
|
21
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
22
|
22
4BD-82507-00-00 Wire, Lead |
4BD-82507-00-00 |
from US $7.63 |
||
|
23
|
23
BTG-GM12C-Z4-A2
Cb12Ca Gs Battery
GS BATTERY |
BTG-GM12C-Z4-A2 |
— | ||
| replacements | |||||
|
23
|
23
CB1-2CA00-00-00
PACKING
GS BATTERY |
CB1-2CA00-00-00 |
— | ||
|
23
|
23
ACB-12CA0-00-00
Acb12Ca Gs Battery W
GS BATTERY |
ACB-12CA0-00-00 |
— | ||
|
24
|
24
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $14.29 |
||
|
25
|
25
90445-083F2-00 Hose (L620) |
90445-083F2-00 |
from US $10.91 |
||
| replacement | |||||
|
25
|
25
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
26
|
26
4BD-82115-01-00
Wire, Plus Lead
|
4BD-82115-01-00 |
— | ||
|
27
|
27
3WP-82116-00-00
Wire, Minus Lead
|
3WP-82116-00-00 |
— | ||
| replacement | |||||
|
27
|
27
89H-82116-00-00
Wire, Minus Lead
|
89H-82116-00-00 |
— | ||
|
28
|
28
90153-06044-00 Screw, Hexagon |
90153-06044-00 |
from US $2.05 |
||
|
29
|
29
59V-82150-00-00 Fuse Holder Assy |
59V-82150-00-00 |
US $83.65 |
||
| replacement | |||||
|
29
|
29
2NL-82150-00-00 Fuse Holder Assy |
2NL-82150-00-00 |
US $83.65 |
||
|
30
|
30
705-82151-00-00 Fuse (30A)30A |
705-82151-00-00 |
US $3.97 |
||
| replacement | |||||
|
30
|
30
705-82151-01-00 FUSE 30A30A |
705-82151-01-00 |
from US $3.97 |
||
|
31
|
31
4GB-82510-00-00 Main Switch Assy |
4GB-82510-00-00 |
from US $74.47 |
||
| replacements | |||||
|
31
|
31
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
|
31
|
31
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
from US $65.24 |
||
|
32
|
32
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.74 |
||
|
33
|
33
24W-83530-01-00 Pilot Light Assy |
24W-83530-01-00 |
from US $30.06 |
||
| replacement | |||||
|
33
|
33
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
34
|
34
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
| replacement | |||||
|
34
|
34
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
|
35
|
35
52G-83530-01-00 Pilot Light Assy |
52G-83530-01-00 |
from US $29.38 |
||
| replacement | |||||
|
35
|
35
52G-83530-10-00 Pilot Light Assy |
52G-83530-10-00 |
from US $25.50 |
||
|
36
|
36
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
| replacement | |||||
|
36
|
36
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
|
37
|
37
4BD-82590-20-00
Wire Harness Assembly
|
4BD-82590-20-00 |
— | ||
|
38
|
38
90464-28153-00 Clamp |
90464-28153-00 |
from US $3.40 |
||
|
39
|
39
90464-16025-00 Clamp |
90464-16025-00 |
from US $1.52 |
||
|
40
|
40
90464-13080-00 Band |
90464-13080-00 |
from US $1.28 |
||
| replacement | |||||
|
40
|
40
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
41
|
41
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
