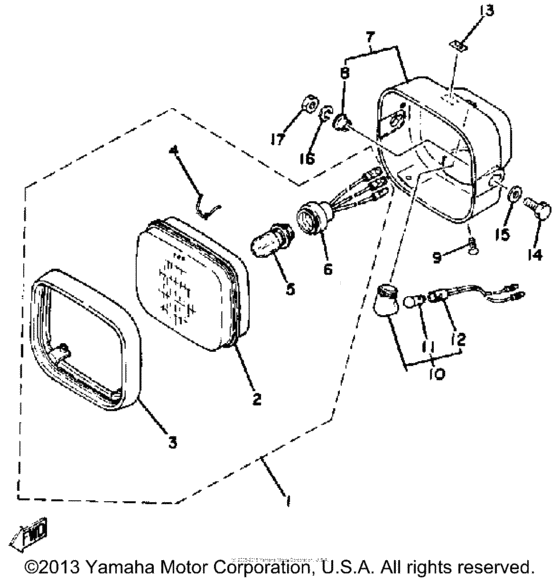

Headlight Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125G
- Engine Capacity
- 123
- Year
- 1980
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
3L6-84120-00-00 Lens Assembly |
3L6-84120-00-00 |
from US $24.44 |
||
|
3
|
3
3L6-84115-00-00
Rim, Headlight
|
3L6-84115-00-00 |
— | ||
|
4
|
4
3L6-84124-00-00 Spring, Set |
3L6-84124-00-00 |
from US $2.41 |
||
|
5
|
5
527-84114-09-XX Bulb, Hl 6V25/25WHL 6V25/25W |
527-84114-09-XX |
US $6.30 |
||
|
6
|
6
4G2-84312-00-00
Socket
|
4G2-84312-00-00 |
— | ||
|
7
|
7
3X3-84130-00-00
Body Assembly, Headlight (3X3-8
3X3-8 COMP. YEL |
3X3-84130-00-00 |
— | ||
|
8
|
8
3L6-84145-00-00 Collar, Body Ftng |
3L6-84145-00-00 |
from US $6.76 |
||
|
9
|
9
987-03050-10-00 Screw, Flat Head |
987-03050-10-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
98780-05010-00 Screw, Flat Head |
98780-05010-00 |
from US $1.42 |
||
|
10
|
10
3L4-85770-00-00
Oil Pilot Light
|
3L4-85770-00-00 |
— | ||
| replacement | |||||
|
10
|
10
4K4-85770-00-00
element
|
4K4-85770-00-00 |
— | ||
|
11
|
11
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S6V1CP BA9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
11
|
11
122-83516-10-XX
Bulb
6V1CP BA9S |
122-83516-10-XX |
— | ||
|
12
|
12
3L4-83534-00-00
Socket, Neutral
|
3L4-83534-00-00 |
— | ||
|
13
|
13
3X3-83585-00-00
Label
|
3X3-83585-00-00 |
— | ||
|
14
|
14
97016-08020-00 Bolt |
97016-08020-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
15
|
15
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
17
|
17
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
