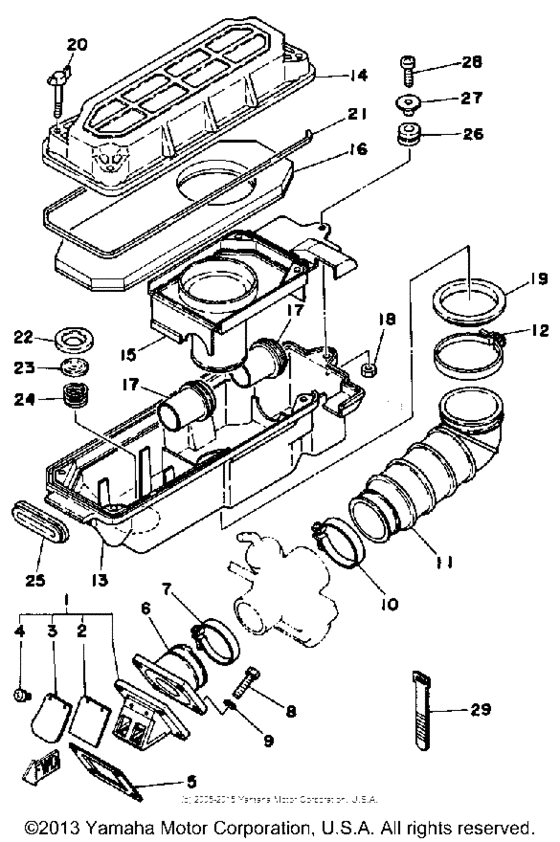

Intake Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125G
- Engine Capacity
- 123
- Year
- 1980
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X3-13610-00-00 Reed Valve Asy |
3X3-13610-00-00 |
from US $193.37 |
||
| replacement | |||||
|
1
|
1
345-13610-20-00 Reed Valve Assy |
345-13610-20-00 |
from US $266.45 |
||
|
2
|
2
4X8-13613-10-00 Reed, Valve |
4X8-13613-10-00 |
from US $14.72 |
||
|
3
|
3
3X3-13616-00-00
Stopper, Reed Valve
|
3X3-13616-00-00 |
— | ||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $2.32 |
||
|
6
|
6
3X3-13586-00-00
Joint, Carburetor 1
|
3X3-13586-00-00 |
— | ||
|
7
|
7
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
7
|
7
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $2.98 |
||
|
11
|
11
3X3-14453-00-00
Joint, Air Clnr 1
|
3X3-14453-00-00 |
— | ||
|
12
|
12
90460-58015-00 Hose Clamp Assy |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
12
|
12
90450-58002-00 Hose Clamp Assy |
90450-58002-00 |
from US $4.53 |
||
|
13
|
13
3X3-14411-00-00
Case, Air Cleaner 1
|
3X3-14411-00-00 |
— | ||
|
14
|
14
3X3-14412-00-00
Cap, Cleaner Case 1
|
3X3-14412-00-00 |
— | ||
|
15
|
15
3X3-14437-00-00
Duct
|
3X3-14437-00-00 |
— | ||
|
16
|
16
3X3-14451-90-00
Element, Air Clnr (3X3-14451-00
3X3-14451-00 |
3X3-14451-90-00 |
— | ||
|
17
|
17
3X3-14419-00-00
Pipe
|
3X3-14419-00-00 |
— | ||
|
18
|
18
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
19
|
19
904-80592-67-00
Grommet
|
904-80592-67-00 |
— | ||
|
20
|
20
90122-06030-00 Bolt, Wing |
90122-06030-00 |
from US $6.52 |
||
| replacement | |||||
|
20
|
20
90122-06005-00 Bolt, Wing |
90122-06005-00 |
from US $6.52 |
||
|
21
|
21
3X3-14452-00-00
Seal
|
3X3-14452-00-00 |
— | ||
|
22
|
22
93104-18006-00
Oil Seal, So-Type
|
93104-18006-00 |
— | ||
|
23
|
23
3X3-14477-00-00
Plate
|
3X3-14477-00-00 |
— | ||
|
24
|
24
905-01055-88-00
Spring, Compression
|
905-01055-88-00 |
— | ||
|
25
|
25
904-80012-66-00
Grommet
|
904-80012-66-00 |
— | ||
|
26
|
26
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.66 |
||
|
27
|
27
90387-06033-00 Collar |
90387-06033-00 |
from US $3.83 |
||
|
28
|
28
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
28
|
28
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
29
|
29
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
