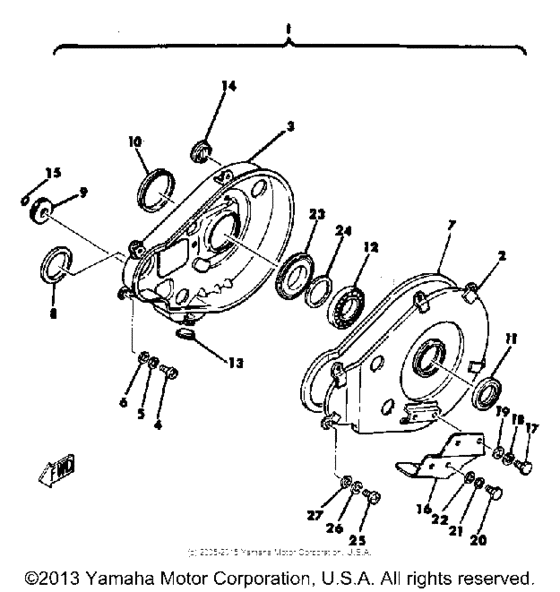

Chain case Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125H
- Engine Capacity
- 123
- Year
- 1981
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4U3-W0022-00-00
Chain Case Kit
|
4U3-W0022-00-00 |
— | ||
|
4
|
4
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.50 |
||
|
5
|
5
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.90 |
||
| replacement | |||||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
6
|
6
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
|
6
|
6
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.80 |
||
|
6
|
6
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
|
7
|
7
3X3-22313-00-00
Rubber, Chain Case
|
3X3-22313-00-00 |
— | ||
|
8
|
8
3X3-22358-00-00
Seal 1
|
3X3-22358-00-00 |
— | ||
|
9
|
9
904-80252-81-00
Grommet
|
904-80252-81-00 |
— | ||
|
10
|
10
3X3-22359-00-00
Seal 2
|
3X3-22359-00-00 |
— | ||
|
11
|
11
931-02422-23-00 Oil Seal, Sd-Type |
931-02422-23-00 |
US $15.26 |
||
|
12
|
12
933-06008-02-00
Bearing
|
933-06008-02-00 |
— | ||
|
13
|
13
903-38200-51-00
Plug, Spec''l Shape
|
903-38200-51-00 |
— | ||
|
14
|
14
148-22315-00-00 Cap |
148-22315-00-00 |
from US $3.14 |
||
|
15
|
15
93210-12790-00 O-Ring |
93210-12790-00 |
from US $1.65 |
||
|
16
|
16
3X3-22318-00-00
Guard, Chain
|
3X3-22318-00-00 |
— | ||
|
17
|
17
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.80 |
||
| replacement | |||||
|
17
|
17
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.80 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
19
|
19
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
|
19
|
19
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.80 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
|
20
|
20
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
20
|
20
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $2.12 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
22
|
22
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
|
22
|
22
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.80 |
||
|
22
|
22
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
|
23
|
23
3X3-22325-00-00
Cover, Dust
|
3X3-22325-00-00 |
— | ||
|
24
|
24
3X3-22347-00-00
Plate, Chn Cs Rubr
CS RUBR |
3X3-22347-00-00 |
— | ||
|
25
|
25
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
25
|
25
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $0.90 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
27
|
27
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $0.90 |
||
|
27
|
27
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.80 |
||
|
27
|
27
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $0.90 |
||
