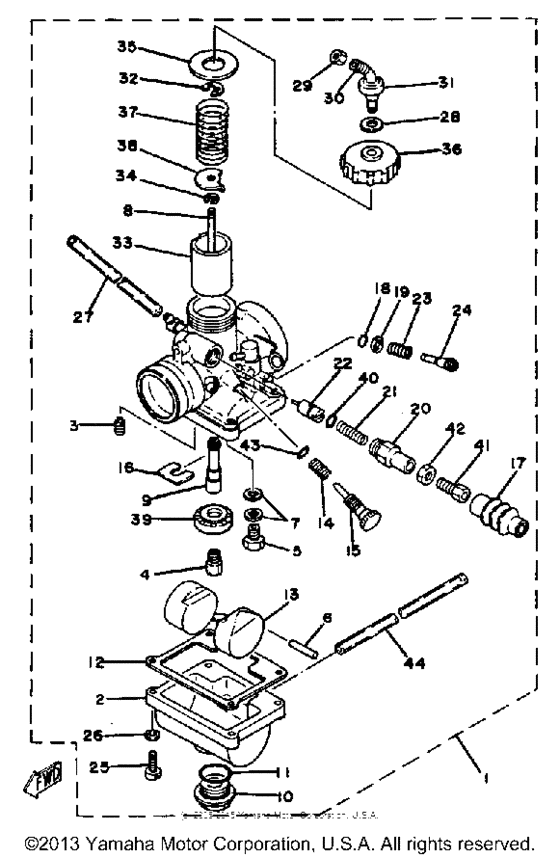

Carburetor Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125J
- Engine Capacity
- 123
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V6-14101-02-00
Carburetor Assy 1
|
5V6-14101-02-00 |
— | ||
| replacement | |||||
|
1
|
1
5V6-14101-03-00
CASE, STARTER
|
5V6-14101-03-00 |
— | ||
|
2
|
2
2Y1-14181-10-00
Body, Float Chmbr 1
|
2Y1-14181-10-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
260-14142-25-00 Jet, Pilot# 25 |
260-14142-25-00 |
from US $10.46 |
||
|
4
|
4
137-14143-40-A1 Jet, Main #200 |
137-14143-40-A1 |
from US $8.94 |
||
|
4
|
4
137-14143-42-A1 Jet, Main #210 (210)#210 210 U.R. |
137-14143-42-A1 |
from US $12.94 |
||
|
4
|
4
137-14143-39-00 Jet, Main #195#195 U.R. |
137-14143-39-00 |
from US $9.45 |
||
|
5
|
5
3X3-14190-15-00 Needle Valve Assembly |
3X3-14190-15-00 |
from US $46.35 |
||
|
6
|
6
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
7
|
7
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
8
|
8
3L2-14116-16-00
Needle
|
3L2-14116-16-00 |
— | ||
|
9
|
9
5V6-14141-30-00
Nozzle, Main
|
5V6-14141-30-00 |
— | ||
|
10
|
10
500-14115-00-00 Plug, Screw |
500-14115-00-00 |
from US $30.60 |
||
|
11
|
11
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $9.07 |
||
|
12
|
12
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $2.98 |
||
|
13
|
13
304-14185-00-00 Float |
304-14185-00-00 |
from US $26.95 |
||
| replacement | |||||
|
13
|
13
4NR-14185-00-00 Float |
4NR-14185-00-00 |
from US $40.48 |
||
|
14
|
14
493-14133-00-00 Spring, Throttle Stop |
493-14133-00-00 |
US $10.43 |
||
|
15
|
15
493-14122-00-00
Screw, Throttle
|
493-14122-00-00 |
— | ||
|
16
|
16
3X3-14146-00-00
Plate
|
3X3-14146-00-00 |
— | ||
|
17
|
17
5V7-14169-00-00
Cap
|
5V7-14169-00-00 |
— | ||
|
18
|
18
3H1-14147-00-00 O-Ring |
3H1-14147-00-00 |
from US $10.26 |
||
|
19
|
19
3H1-14962-00-00 Washer |
3H1-14962-00-00 |
from US $4.96 |
||
|
20
|
20
5V7-14174-00-00
Cap, Plunger
|
5V7-14174-00-00 |
— | ||
|
21
|
21
127-14135-00-00 Coil, Spring |
127-14135-00-00 |
from US $2 |
||
|
22
|
22
5V7-14171-00-00
Plunger, Starter
|
5V7-14171-00-00 |
— | ||
|
23
|
23
174-14134-00-00 Spring, Air Adjusting |
174-14134-00-00 |
from US $7.79 |
||
|
24
|
24
3A3-14123-00-00
Screw, Air Adjusting
|
3A3-14123-00-00 |
— | ||
|
25
|
25
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
25
|
25
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
26
|
26
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
27
|
27
3X3-14197-00-00
Pipe
|
3X3-14197-00-00 |
— | ||
| replacement | |||||
|
27
|
27
3XV-14348-20-00 Pipe 1 |
3XV-14348-20-00 |
from US $21.10 |
||
|
28
|
28
509-14198-00-00 Gasket |
509-14198-00-00 |
from US $13.60 |
||
|
29
|
29
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
30
|
30
10X-14106-00-00 Cable Adjust Screw Set |
10X-14106-00-00 |
from US $27.34 |
||
|
31
|
31
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
32
|
32
363-14137-00-00 Clip |
363-14137-00-00 |
from US $12.13 |
||
|
33
|
33
304-14112-15-00 Valve, Throttle 1 |
304-14112-15-00 |
US $84.11 |
||
|
34
|
34
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
34
|
34
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
35
|
35
3A3-14126-00-00
Gasket
|
3A3-14126-00-00 |
— | ||
|
36
|
36
1T9-14158-00-00
Top, Mixing Chamber
|
1T9-14158-00-00 |
— | ||
|
37
|
37
3X3-14131-00-00 Spring, Thrtl Valve |
3X3-14131-00-00 |
from US $14.45 |
||
|
38
|
38
137-14136-00-00 Seat, Spring |
137-14136-00-00 |
US $16.20 |
||
|
39
|
39
3R1-14153-00-00
Washer, Main Jet
|
3R1-14153-00-00 |
— | ||
|
40
|
40
932-10041-21-00
O-Ring
|
932-10041-21-00 |
— | ||
| replacement | |||||
|
40
|
40
93210-04230-00 O-Ring |
93210-04230-00 |
from US $1.66 |
||
|
41
|
41
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
|
42
|
42
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
43
|
43
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
44
|
44
3L7-14197-00-00 Pipe |
3L7-14197-00-00 |
from US $12.29 |
||
| replacement | |||||
|
44
|
44
3XV-14348-20-00 Pipe 1 |
3XV-14348-20-00 |
from US $21.10 |
||
