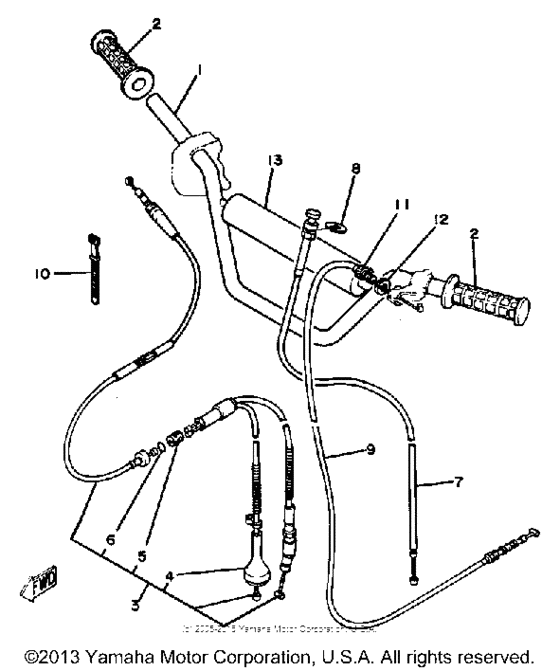

Handlebar - cable Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125J
- Engine Capacity
- 123
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V6-26111-00-00
Handlebar
|
5V6-26111-00-00 |
— | ||
|
2
|
2
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
3
|
3
5V6-26260-00-00
Cble Assembly, Thrtl/pmp
|
5V6-26260-00-00 |
— | ||
|
4
|
4
437-26329-00-00
Cap, Rubber
|
437-26329-00-00 |
— | ||
|
5
|
5
1M1-26263-00-00
Piece, Connecting
|
1M1-26263-00-00 |
— | ||
|
6
|
6
93210-10118-00 O-Ring |
93210-10118-00 |
from US $3.40 |
||
|
7
|
7
5V6-26331-01-00
Cable, Starter 1
|
5V6-26331-01-00 |
— | ||
| replacement | |||||
|
7
|
7
5V6-26331-02-00
LEVER HOLDER ASY 2
|
5V6-26331-02-00 |
— | ||
|
8
|
8
4U3-23385-00-00
Washer, Special 1
|
4U3-23385-00-00 |
— | ||
|
9
|
9
5V6-26340-00-00 Cable, Brake |
5V6-26340-00-00 |
US $84.17 |
||
|
10
|
10
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
11
|
11
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
11
|
11
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
12
|
12
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
12
|
12
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
13
|
13
4U3-26124-00-00
Protector, Hdlbr
|
4U3-26124-00-00 |
— | ||
