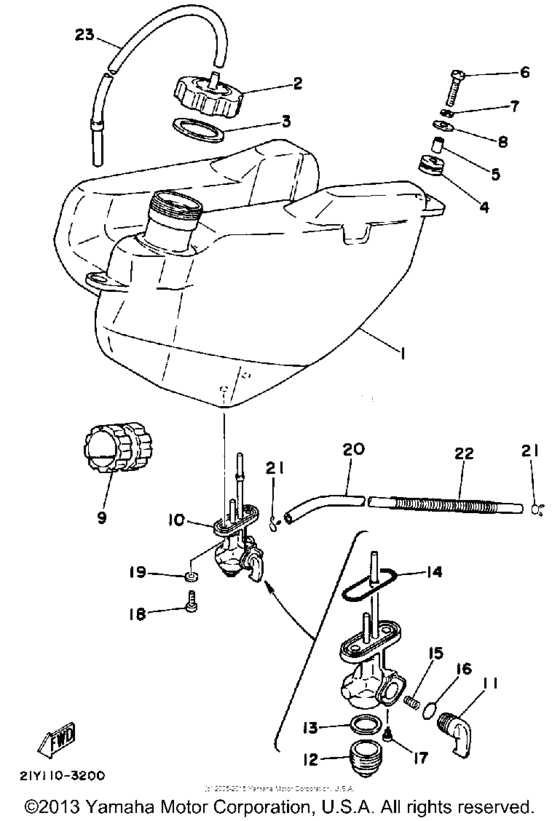

Fuel tank Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125K
- Engine Capacity
- 123
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X3-24110-00-00
Fuel Tank
|
3X3-24110-00-00 |
— | ||
|
2
|
2
1W1-24611-00-00
Body, Cap
|
1W1-24611-00-00 |
— | ||
|
3
|
3
1W1-24612-00-00 Packing, Cap |
1W1-24612-00-00 |
from US $9.21 |
||
|
4
|
4
90480-15064-00 Grommet |
90480-15064-00 |
from US $5.38 |
||
|
5
|
5
90387-064A5-00 Collar |
90387-064A5-00 |
from US $1.98 |
||
| replacement | |||||
|
5
|
5
90387-06088-00 Collar |
90387-06088-00 |
from US $1.71 |
||
|
6
|
6
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
6
|
6
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
9
|
9
3X3-24181-00-00
Damper, Locating 1
|
3X3-24181-00-00 |
— | ||
|
10
|
10
3X3-24500-00-00
Fuel Cock Assembly 1
|
3X3-24500-00-00 |
— | ||
|
11
|
11
1A0-24524-01-00
Lever, Cock
|
1A0-24524-01-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
1A0-24521-01-00 Cup, Filter |
1A0-24521-01-00 |
US $32.87 |
||
|
13
|
13
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
14
|
14
214-24512-00-00 Gasket |
214-24512-00-00 |
from US $21.11 |
||
|
15
|
15
1A0-24512-00-00 Gasket |
1A0-24512-00-00 |
from US $9.85 |
||
|
16
|
16
1A0-24512-00-00 Gasket |
1A0-24512-00-00 |
from US $9.85 |
||
|
17
|
17
619-24535-00-00
Screw (1E7)
|
619-24535-00-00 |
— | ||
|
18
|
18
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
19
|
19
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
20
|
20
90445-09271-00 Hose (L865) |
90445-09271-00 |
from US $12.75 |
||
| replacement | |||||
|
20
|
20
904-45090-21-00 Hose (L865) |
904-45090-21-00 |
from US $12.75 |
||
|
21
|
21
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
22
|
22
90501-08430-00 Spring, Compression |
90501-08430-00 |
from US $4.53 |
||
| replacement | |||||
|
22
|
22
90501-08668-00 Spring, Compression |
90501-08668-00 |
from US $4.53 |
||
|
23
|
23
90445-09238-00
Hose (L540)
|
90445-09238-00 |
— | ||
| replacement | |||||
|
23
|
23
90445-09361-00
Hose (L540)
|
90445-09361-00 |
— | ||
