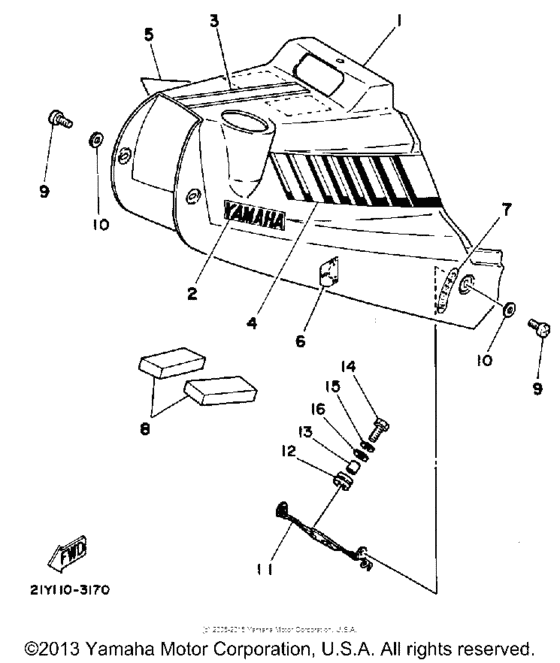

Side cover Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125K
- Engine Capacity
- 123
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X3-21710-01-33
Side Cover Assembly 1
YAMAHA BLK/COMP. YELLOW |
3X3-21710-01-33 |
— | ||
|
2
|
2
4U3-23395-00-00 Emblem, Yamaha |
4U3-23395-00-00 |
from US $7.78 |
||
| replacement | |||||
|
2
|
2
992-44001-00-00 Emblem, Yamaha |
992-44001-00-00 |
from US $8.22 |
||
|
3
|
3
5V6-24162-00-00
Emblem 2
|
5V6-24162-00-00 |
— | ||
|
3
|
3
21Y-24162-30-00
Emblem 2
|
21Y-24162-30-00 |
— | ||
|
4
|
4
21Y-24163-00-00
Emblem 3
|
21Y-24163-00-00 |
— | ||
|
4
|
4
21Y-24163-30-00
Emblem 3 (125L)
125L |
21Y-24163-30-00 |
— | ||
|
5
|
5
21Y-24164-00-00
Emblem 4 (125K)
125K |
21Y-24164-00-00 |
— | ||
|
5
|
5
21Y-24164-30-00
Emblem 4 (125L)
125L |
21Y-24164-30-00 |
— | ||
|
6
|
6
3X3-21788-00-00
Graphic
|
3X3-21788-00-00 |
— | ||
|
7
|
7
5V6-21789-00-00
Graphic
|
5V6-21789-00-00 |
— | ||
|
8
|
8
3X3-21746-00-00
Damper
|
3X3-21746-00-00 |
— | ||
|
9
|
9
98906-06016-00 Screw, Bind |
98906-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
10
|
10
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
10
|
10
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
10
|
10
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
11
|
11
5V7-2172E-00-00
Stay, Side Cover 1
|
5V7-2172E-00-00 |
— | ||
|
12
|
12
90480-12475-00 Grommet(2Gh) |
90480-12475-00 |
from US $1.35 |
||
|
13
|
13
903-87060-A7-00
Collar
|
903-87060-A7-00 |
— | ||
| replacement | |||||
|
13
|
13
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
14
|
14
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
