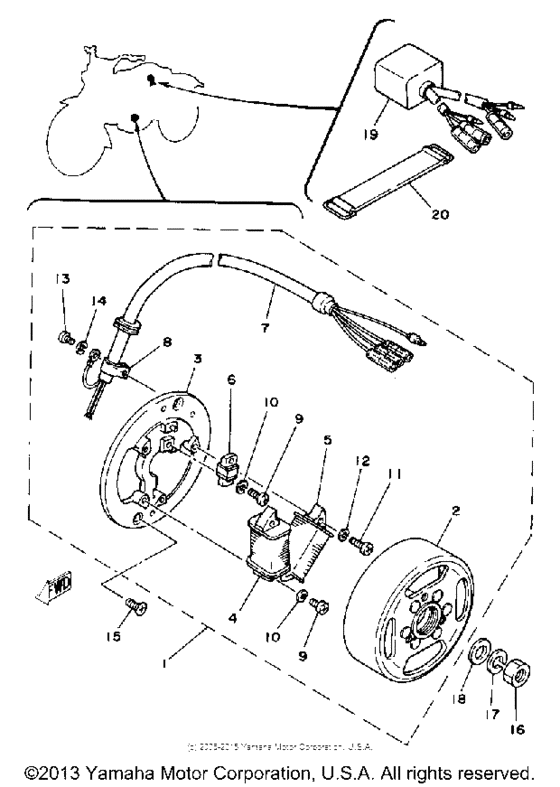

C - d - i magneto Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-85500-20-00
Cdi Magneto Assembly
|
5V7-85500-20-00 |
— | ||
|
2
|
2
5V7-85550-20-00
Rotor Assembly
|
5V7-85550-20-00 |
— | ||
|
3
|
3
3M2-85509-21-00
Base, Magneto
|
3M2-85509-21-00 |
— | ||
|
4
|
4
3X3-85512-20-00
Coil Source 2
|
3X3-85512-20-00 |
— | ||
|
5
|
5
3X3-85513-20-00
Coil, Lighting 1
|
3X3-85513-20-00 |
— | ||
|
6
|
6
5V7-85580-20-00
Coil, Pulser
|
5V7-85580-20-00 |
— | ||
|
7
|
7
3X3-85515-20-00
Lead Wire Assembly
|
3X3-85515-20-00 |
— | ||
|
8
|
8
104-81328-20-00 Clamp |
104-81328-20-00 |
from US $2.69 |
||
|
9
|
9
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
9
|
9
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
10
|
10
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
985-11040-25-00
Screw, Pan Head
|
985-11040-25-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
13
|
13
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
13
|
13
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
16
|
16
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
17
|
17
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
18
|
18
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
19
|
19
5V7-85540-20-00
Cdi Unit Assembly
|
5V7-85540-20-00 |
— | ||
|
20
|
20
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
20
|
20
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $4.64 |
||
