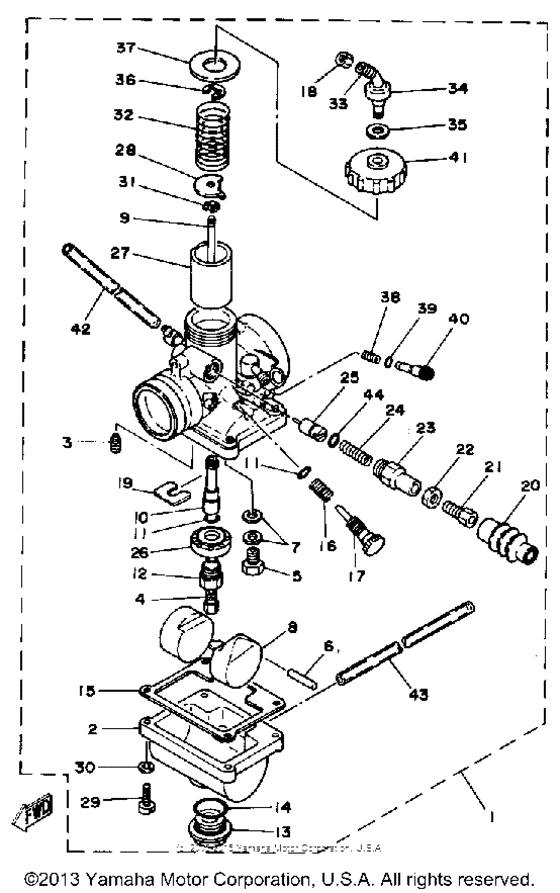

Carburetor Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $9.07 |
||
|
1
|
1
5V7-14101-00-00
Carburetor Assembly 1
|
5V7-14101-00-00 |
— | ||
|
2
|
2
2Y1-14181-04-00
Body, Float Chmbr 1
|
2Y1-14181-04-00 |
— | ||
|
3
|
3
260-14142-40-00 Jet, Pilot (# 40)# 40 |
260-14142-40-00 |
from US $10.33 |
||
|
4
|
4
137-14143-33-00 Jet, Main #165 (#165)#165 #165 U.R. STD |
137-14143-33-00 |
from US $10.62 |
||
|
4
|
4
137-14143-32-00 Jet, Main #160#160 U.R. |
137-14143-32-00 |
from US $10.85 |
||
|
4
|
4
137-14143-34-00 Jet, Main #170Jet, main (170) #170 U.R. |
137-14143-34-00 |
from US $10.73 |
||
|
5
|
5
168-14190-10-00 Needle Valve Assembly |
168-14190-10-00 |
from US $45.67 |
||
|
6
|
6
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
7
|
7
214-14195-00-00 Washer, Valve Seat |
214-14195-00-00 |
from US $2.66 |
||
|
8
|
8
493-14185-00-00
Float
|
493-14185-00-00 |
— | ||
|
9
|
9
2N3-14116-04-00
Needle
|
2N3-14116-04-00 |
— | ||
|
10
|
10
4A7-14141-28-00
Nozzle, Main
|
4A7-14141-28-00 |
— | ||
|
11
|
11
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
|
12
|
12
2N4-14145-00-00 Setter, Needle Jet |
2N4-14145-00-00 |
from US $19.55 |
||
|
13
|
13
500-14115-00-00 Plug, Screw |
500-14115-00-00 |
from US $30.60 |
||
|
15
|
15
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $2.98 |
||
|
16
|
16
493-14133-00-00 Spring, Throttle Stop |
493-14133-00-00 |
US $10.43 |
||
|
17
|
17
493-14122-00-00
Screw, Throttle
|
493-14122-00-00 |
— | ||
|
18
|
18
127-14167-00-00
Connector, Banjo
|
127-14167-00-00 |
— | ||
|
19
|
19
5V7-14146-00-00
Plate
|
5V7-14146-00-00 |
— | ||
|
20
|
20
5V7-14169-00-00
Cap
|
5V7-14169-00-00 |
— | ||
|
21
|
21
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
|
22
|
22
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
23
|
23
5V7-14174-00-00
Cap, Plunger
|
5V7-14174-00-00 |
— | ||
|
24
|
24
127-14135-00-00 Coil, Spring |
127-14135-00-00 |
from US $2 |
||
|
25
|
25
5V7-14171-00-00
Plunger, Starter
|
5V7-14171-00-00 |
— | ||
|
26
|
26
5V7-14153-00-00 Washer, Main Jet |
5V7-14153-00-00 |
from US $9.92 |
||
|
27
|
27
314-14112-25-00 Valve, Throttle 1 |
314-14112-25-00 |
from US $53.10 |
||
|
28
|
28
246-14132-00-00
Stopper, Cable
|
246-14132-00-00 |
— | ||
|
29
|
29
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
29
|
29
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
30
|
30
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
31
|
31
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
31
|
31
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
32
|
32
248-14131-00-00 Spring, Throttle Valve |
248-14131-00-00 |
from US $10.46 |
||
|
33
|
33
10X-14106-00-00 Cable Adjust Screw Set |
10X-14106-00-00 |
from US $27.34 |
||
|
34
|
34
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
35
|
35
509-14198-00-00 Gasket |
509-14198-00-00 |
from US $13.60 |
||
|
36
|
36
363-14137-00-00 Clip |
363-14137-00-00 |
from US $12.13 |
||
|
37
|
37
2A6-14126-00-00 Gasket |
2A6-14126-00-00 |
from US $18.14 |
||
|
38
|
38
174-14134-00-00 Spring, Air Adjusting |
174-14134-00-00 |
from US $7.79 |
||
|
39
|
39
354-14147-00-00 O-Ring |
354-14147-00-00 |
from US $8.78 |
||
|
40
|
40
10W-14104-00-00 Air Screw Set |
10W-14104-00-00 |
from US $16.47 |
||
|
41
|
41
2A6-14158-00-00 Top, Mixing Chamber |
2A6-14158-00-00 |
US $48.10 |
||
|
42
|
42
3X3-14197-00-00
Pipe
|
3X3-14197-00-00 |
— | ||
| replacement | |||||
|
42
|
42
3XV-14348-20-00 Pipe 1 |
3XV-14348-20-00 |
from US $21.10 |
||
|
43
|
43
3L7-14197-00-00 Pipe |
3L7-14197-00-00 |
from US $12.29 |
||
| replacement | |||||
|
43
|
43
3XV-14348-20-00 Pipe 1 |
3XV-14348-20-00 |
from US $21.10 |
||
|
44
|
44
932-10041-21-00
O-Ring
|
932-10041-21-00 |
— | ||
| replacement | |||||
|
44
|
44
93210-04230-00 O-Ring |
93210-04230-00 |
from US $1.66 |
||
