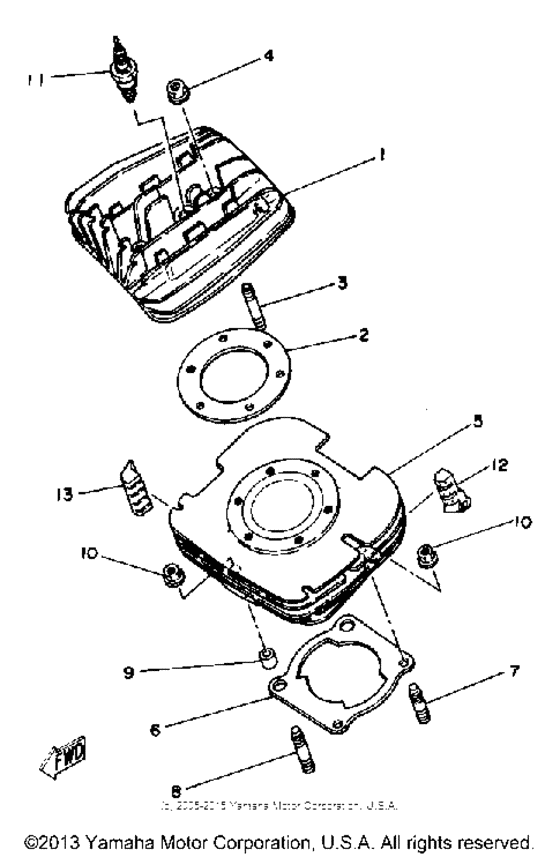

Cylinder Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-11111-00-00
Head, Cylinder 1
|
5V7-11111-00-00 |
— | ||
|
2
|
2
5V7-11181-00-00
Gasket, Cylinder Head 1
|
5V7-11181-00-00 |
— | ||
|
3
|
3
90116-08104-00 Bolt, Stud |
90116-08104-00 |
from US $6.66 |
||
|
4
|
4
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
4
|
4
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
4
|
4
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
5
|
5
5V7-11311-00-00
Cylinder 1
|
5V7-11311-00-00 |
— | ||
|
6
|
6
18G-11351-01-00 Gasket,cylinder |
18G-11351-01-00 |
from US $6.38 |
||
| replacement | |||||
|
6
|
6
18G-11351-02-00 Gasket, Cylinder |
18G-11351-02-00 |
from US $3.64 |
||
|
7
|
7
90116-10278-00 Bolt, Stud |
90116-10278-00 |
from US $4.45 |
||
|
8
|
8
901-16102-79-00 Bolt, Stud |
901-16102-79-00 |
from US $4.45 |
||
|
9
|
9
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
10
|
10
90179-10279-00 Nut |
90179-10279-00 |
from US $1.28 |
||
|
11
|
11
NGK-BP7ES-00-00 Bp7Es Ngk Splug 4P4P |
NGK-BP7ES-00-00 |
US $17.80 |
||
| replacements | |||||
|
11
|
11
BP7-ES000-00-00 "3/8"" X 15 DOCKLINE"4P |
BP7-ES000-00-00 |
US $17.80 |
||
|
11
|
11
BPR-7ES00-40-00 BPR7ES NGK - 4/PACK4P |
BPR-7ES00-40-00 |
US $22.04 |
||
|
12
|
12
5V7-11161-00-00
Absorber 1
|
5V7-11161-00-00 |
— | ||
|
13
|
13
5V7-11127-01-00
Absorber 3
|
5V7-11127-01-00 |
— | ||
