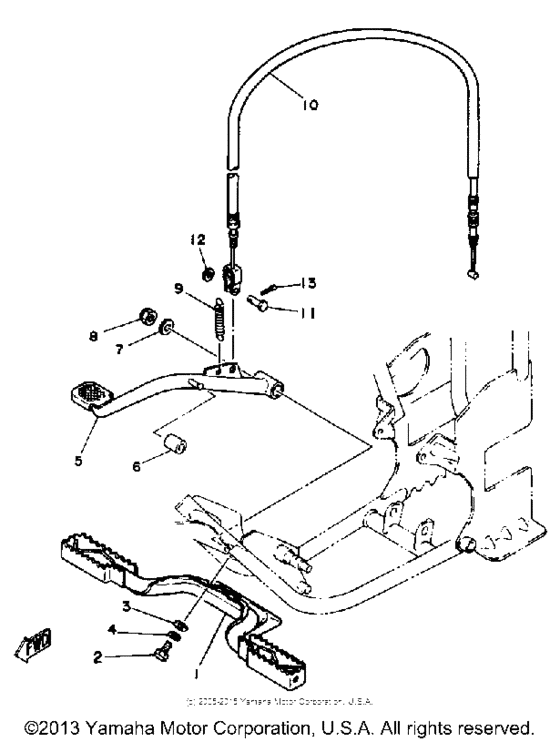

Footrest Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V6-27411-00-00
Footrest 1
|
5V6-27411-00-00 |
— | ||
|
2
|
2
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
2
|
2
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
3
|
3
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
3
|
3
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
4
|
4
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
5
|
5
3X3-27211-00-00
Pedal, Brake
|
3X3-27211-00-00 |
— | ||
|
6
|
6
3X3-27214-00-00
Stopper
|
3X3-27214-00-00 |
— | ||
|
7
|
7
92906-10200-00 Washer, Plain |
92906-10200-00 |
from US $1.07 |
||
| replacements | |||||
|
7
|
7
92907-10200-00 Washer, Plain |
92907-10200-00 |
from US $0.90 |
||
|
7
|
7
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
8
|
8
956-16101-00-00 Nut, U |
956-16101-00-00 |
US $4.11 |
||
|
9
|
9
90506-16215-00 Spring, Tension |
90506-16215-00 |
from US $5.18 |
||
|
10
|
10
5V6-26350-00-00
Cable, Brake
|
5V6-26350-00-00 |
— | ||
|
11
|
11
90240-06076-00 Pin, Clevis |
90240-06076-00 |
from US $1.70 |
||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
13
|
13
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
