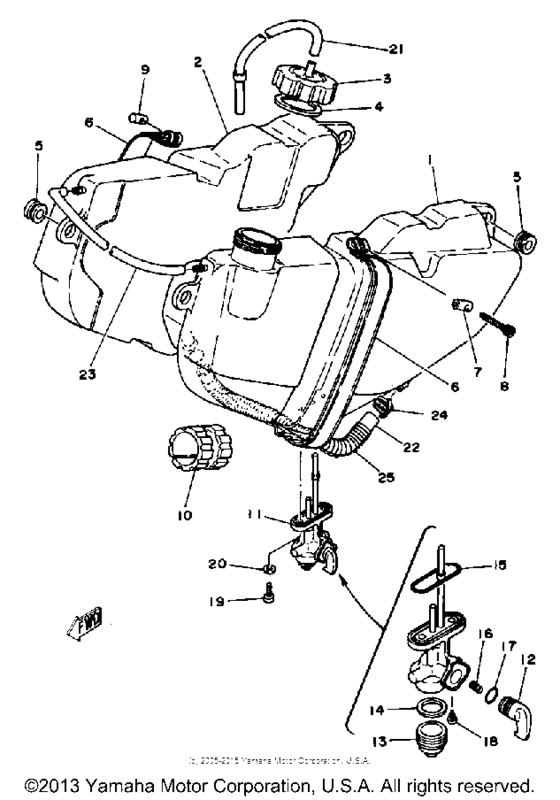

Fuel tank Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-24111-00-00
Fuel Tank
|
5V7-24111-00-00 |
— | ||
|
2
|
2
5V7-24211-00-00
Fuel Tank
|
5V7-24211-00-00 |
— | ||
|
3
|
3
1W1-24611-00-00
Body, Cap
|
1W1-24611-00-00 |
— | ||
|
4
|
4
1W1-24612-00-00 Packing, Cap |
1W1-24612-00-00 |
from US $9.21 |
||
|
5
|
5
90480-15064-00 Grommet |
90480-15064-00 |
from US $5.38 |
||
|
6
|
6
5V7-24199-00-00
Band, Tnk Fitting 2
|
5V7-24199-00-00 |
— | ||
|
7
|
7
806-24135-00-00 Clamp 1 |
806-24135-00-00 |
from US $3.97 |
||
|
8
|
8
901-49050-06-00
Screw, Spec''l Shape (821-24176
821-24176 |
901-49050-06-00 |
— | ||
|
9
|
9
901-79050-30-00
Nut, Spec''l Shape (806-24146-0
806-24146-0 |
901-79050-30-00 |
— | ||
|
10
|
10
3X3-24181-00-00
Damper, Locating 1
|
3X3-24181-00-00 |
— | ||
|
11
|
11
3X3-24500-00-00
Fuel Cock Assembly 1
|
3X3-24500-00-00 |
— | ||
|
12
|
12
1A0-24524-01-00
Lever, Cock
|
1A0-24524-01-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
1A0-24521-01-00 Cup, Filter |
1A0-24521-01-00 |
US $32.87 |
||
|
14
|
14
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
15
|
15
214-24512-00-00 Gasket |
214-24512-00-00 |
from US $21.11 |
||
|
16
|
16
1A0-24529-01-00 Spring |
1A0-24529-01-00 |
from US $4.56 |
||
|
17
|
17
1A0-24512-00-00 Gasket |
1A0-24512-00-00 |
from US $9.85 |
||
|
18
|
18
619-24535-00-00
Screw (1E7)
|
619-24535-00-00 |
— | ||
|
19
|
19
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
20
|
20
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
21
|
21
90445-09238-00
Hose (L540)
|
90445-09238-00 |
— | ||
| replacement | |||||
|
21
|
21
90445-09361-00
Hose (L540)
|
90445-09361-00 |
— | ||
|
22
|
22
90445-16594-00
Hose
|
90445-16594-00 |
— | ||
| replacement | |||||
|
22
|
22
90445-16416-00
Hose (L285)
|
90445-16416-00 |
— | ||
|
23
|
23
90445-09222-00 Hose (L230) |
90445-09222-00 |
US $6.52 |
||
| replacements | |||||
|
23
|
23
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
23
|
23
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
24
|
24
904-68081-04-00 Clip |
904-68081-04-00 |
from US $1.70 |
||
|
25
|
25
90501-08545-00
Spring, Compression
|
90501-08545-00 |
— | ||
