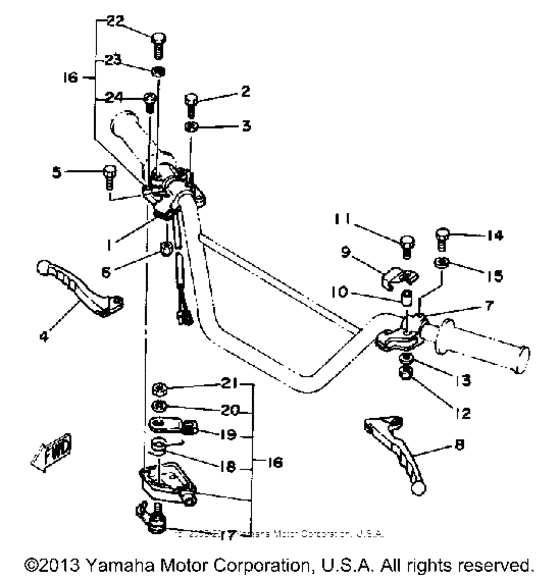

Handle switch & lever Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
2
|
2
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
2
|
2
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
4
|
4
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $9.92 |
||
|
5
|
5
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
5
|
5
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
6
|
6
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
7
|
7
214-82911-01-00 Holder, Lever 1 |
214-82911-01-00 |
from US $41.72 |
||
|
8
|
8
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
8
|
8
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
9
|
9
3X3-83965-00-00 Lever, Lock |
3X3-83965-00-00 |
from US $11.19 |
||
|
10
|
10
3X3-83913-00-00 Collar, Lever 1 |
3X3-83913-00-00 |
from US $2.69 |
||
|
11
|
11
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
12
|
12
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
14
|
14
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
5V6-82720-00-00
Lever Holder Assembly 2
|
5V6-82720-00-00 |
— | ||
|
17
|
17
5V6-42138-00-00
Lever, Throttle
|
5V6-42138-00-00 |
— | ||
|
18
|
18
5V6-42147-00-00
Spring
|
5V6-42147-00-00 |
— | ||
|
19
|
19
5V6-42154-00-00
Lever, Throttle Con
|
5V6-42154-00-00 |
— | ||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
22
|
22
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
