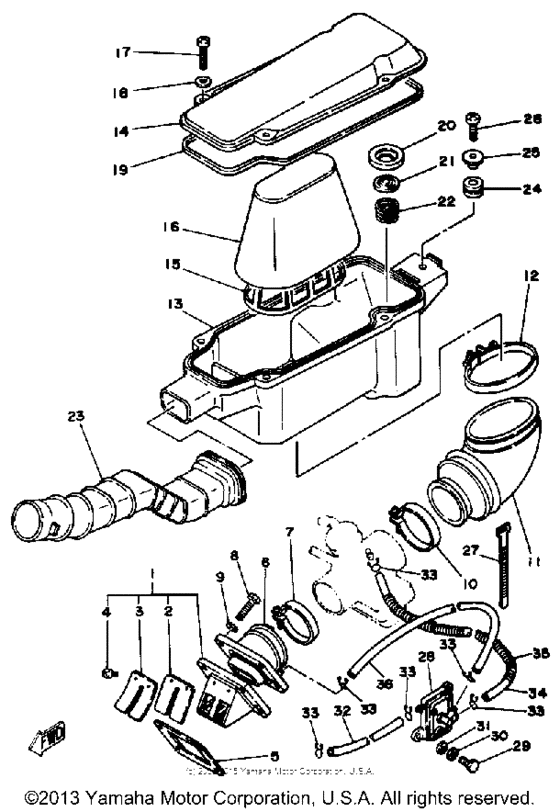

Intake Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
10V-13610-01-00 Reed Valve Assembly (885-13610-885-13610- |
10V-13610-01-00 |
from US $139.54 |
||
|
2
|
2
10V-13613-01-00 Reed, Valve (1L8-13613-00-00)1L8-13613-00-00 |
10V-13613-01-00 |
from US $10.34 |
||
|
3
|
3
1UA-13616-00-00
Stopper, Reed Valve (10V-1261
10V-1261 |
1UA-13616-00-00 |
— | ||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
5V7-13621-00-00
Gasket,valve Seat
|
5V7-13621-00-00 |
— | ||
| replacement | |||||
|
5
|
5
5V7-13621-10-00
EXHAUST PIPE ASY L
|
5V7-13621-10-00 |
— | ||
|
6
|
6
5V7-13586-00-00
Joint, Carburetor 1
|
5V7-13586-00-00 |
— | ||
|
7
|
7
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
7
|
7
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
9
|
9
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
9
|
9
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
10
|
10
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $2.98 |
||
|
11
|
11
5V7-14453-00-00
Joint, Air Clnr 1
|
5V7-14453-00-00 |
— | ||
|
12
|
12
90460-01186-00
Clamp, Hose
|
90460-01186-00 |
— | ||
|
13
|
13
5V7-14411-00-00
Case, Air Cleaner 1
|
5V7-14411-00-00 |
— | ||
|
14
|
14
5V7-14412-00-00
Cap, Cleaner Case 1
|
5V7-14412-00-00 |
— | ||
|
15
|
15
5V7-14458-00-00
Guide, Element
|
5V7-14458-00-00 |
— | ||
|
16
|
16
5V7-14451-00-00
Element, Air Clnr
|
5V7-14451-00-00 |
— | ||
|
17
|
17
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
18
|
18
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
19
|
19
1VJ-14462-00-00 Seal |
1VJ-14462-00-00 |
from US $7.62 |
||
|
20
|
20
93104-18006-00
Oil Seal, So-Type
|
93104-18006-00 |
— | ||
|
21
|
21
3X3-14477-00-00
Plate
|
3X3-14477-00-00 |
— | ||
|
22
|
22
905-01055-88-00
Spring, Compression
|
905-01055-88-00 |
— | ||
|
23
|
23
5V7-14437-00-00
Duct
|
5V7-14437-00-00 |
— | ||
|
24
|
24
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.66 |
||
|
25
|
25
90387-06033-00 Collar |
90387-06033-00 |
from US $3.83 |
||
|
26
|
26
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
26
|
26
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
27
|
27
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
28
|
28
5V7-24410-00-00
Fuel Pump Assy
|
5V7-24410-00-00 |
— | ||
| replacement | |||||
|
28
|
28
5V7-24410-01-00
SPROCKET, DRVN 42T
|
5V7-24410-01-00 |
— | ||
|
29
|
29
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
29
|
29
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
30
|
30
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
31
|
31
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
31
|
31
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
31
|
31
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
32
|
32
90445-09064-00 Hose (L420) |
90445-09064-00 |
from US $6.52 |
||
| replacement | |||||
|
32
|
32
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
33
|
33
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
34
|
34
90445-09353-00 Hose (L520) |
90445-09353-00 |
US $19.84 |
||
| replacement | |||||
|
34
|
34
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
35
|
35
90501-08430-00 Spring, Compression |
90501-08430-00 |
from US $4.53 |
||
| replacement | |||||
|
35
|
35
90501-08668-00 Spring, Compression |
90501-08668-00 |
from US $4.53 |
||
|
36
|
36
90445-09119-00 Hose (L675) |
90445-09119-00 |
from US $19.84 |
||
| replacement | |||||
|
36
|
36
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
