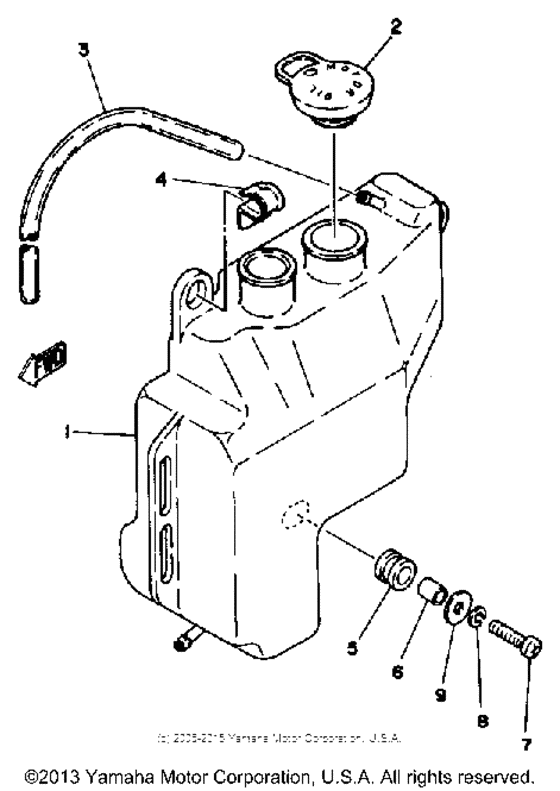

Oil tank Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X3-21751-00-00
Tank, Oil
|
3X3-21751-00-00 |
— | ||
|
2
|
2
1T9-21771-00-00 Body, Cap |
1T9-21771-00-00 |
from US $9.94 |
||
| replacement | |||||
|
2
|
2
1T9-21771-01-00 BODY CAP |
1T9-21771-01-00 |
from US $10.66 |
||
|
3
|
3
90445-09111-00 Hose (L675) |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
3
|
3
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
4
|
4
904-62060-44-00
Clamp
|
904-62060-44-00 |
— | ||
|
5
|
5
90480-13238-00 Grommet |
90480-13238-00 |
from US $1.98 |
||
|
6
|
6
90387-06026-00 Collar |
90387-06026-00 |
from US $1.56 |
||
|
7
|
7
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
7
|
7
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
9
|
9
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
9
|
9
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
