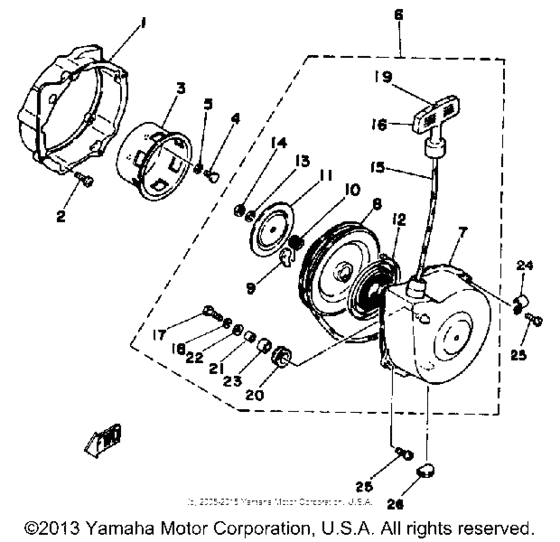

Starter Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175J
- Engine Capacity
- 175
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X3-15787-00-00
Adaptor
|
3X3-15787-00-00 |
— | ||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
3
|
3
3X3-15723-01-00
Pulley, Starter (3X3-15723-00)
3X3-15723-00 |
3X3-15723-01-00 |
— | ||
|
4
|
4
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
6
|
6
20E-15710-00-00
Starter Assembly
|
20E-15710-00-00 |
— | ||
|
7
|
7
20E-15711-00-00
Case, Starter
|
20E-15711-00-00 |
— | ||
|
8
|
8
3X3-15714-01-00
Drum, Sheave
|
3X3-15714-01-00 |
— | ||
|
9
|
9
3X3-15741-00-00
Pawl, Drive
|
3X3-15741-00-00 |
— | ||
|
10
|
10
3X3-15715-00-00
Spring, Drive Plate
|
3X3-15715-00-00 |
— | ||
|
11
|
11
3X3-15716-00-00
Plate, Drive
|
3X3-15716-00-00 |
— | ||
|
12
|
12
3X3-15713-00-00 Spring, Starter |
3X3-15713-00-00 |
US $62.14 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
14
|
14
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
15
|
15
5V6-15751-00-XX Wire, Starter |
5V6-15751-00-XX |
US $24.73 |
||
| replacement | |||||
|
15
|
15
89A-15751-00-00 Wire, Starter |
89A-15751-00-00 |
from US $17.28 |
||
|
16
|
16
3X3-15755-00-00 Handle, Starter |
3X3-15755-00-00 |
from US $14.73 |
||
|
17
|
17
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
6F5-15791-00-00 Washer, Lock |
6F5-15791-00-00 |
from US $2.13 |
||
|
20
|
20
663-15752-00-00 Roller, Wire |
663-15752-00-00 |
from US $7.62 |
||
|
21
|
21
6F5-15753-00-00 Bush |
6F5-15753-00-00 |
from US $1.66 |
||
|
22
|
22
21V-15779-00-00 Cover |
21V-15779-00-00 |
from US $2.55 |
||
|
23
|
23
5V6-15754-00-00
Bush 2
|
5V6-15754-00-00 |
— | ||
|
24
|
24
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
25
|
25
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
26
|
26
904-80153-12-00
Grommet
|
904-80153-12-00 |
— | ||
