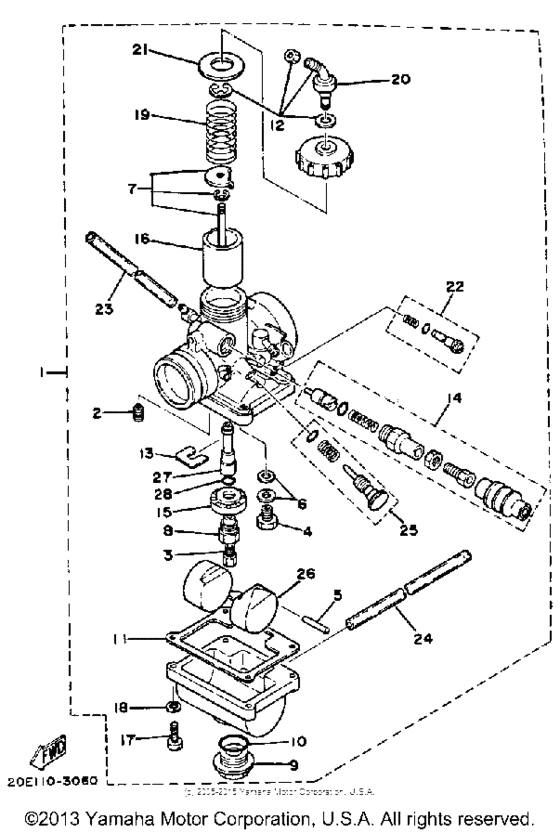

Carburetor Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175K
- Engine Capacity
- 175
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-14101-00-00
Carburetor Assembly 1
|
5V7-14101-00-00 |
— | ||
|
2
|
2
260-14142-35-00 Jet, Pilot ( 35)35 |
260-14142-35-00 |
from US $11.29 |
||
|
3
|
3
137-14143-34-00 Jet, Main #170Jet, main (170) #170 |
137-14143-34-00 |
from US $10.73 |
||
|
4
|
4
168-14190-10-00 Needle Valve Assembly |
168-14190-10-00 |
from US $45.67 |
||
|
5
|
5
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
6
|
6
214-14195-00-00 Washer, Valve Seat |
214-14195-00-00 |
from US $2.66 |
||
|
7
|
7
20E-1490J-00-00
Needle Set
|
20E-1490J-00-00 |
— | ||
|
8
|
8
2N4-14145-00-00 Setter, Needle Jet |
2N4-14145-00-00 |
from US $19.55 |
||
|
9
|
9
500-14115-00-00 Plug, Screw |
500-14115-00-00 |
from US $30.60 |
||
|
10
|
10
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $9.07 |
||
|
11
|
11
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $2.98 |
||
|
12
|
12
10X-14106-00-00 Cable Adjust Screw Set |
10X-14106-00-00 |
from US $27.34 |
||
|
13
|
13
5V7-14146-00-00
Plate
|
5V7-14146-00-00 |
— | ||
|
14
|
14
20E-1410A-00-00
Starter Set
|
20E-1410A-00-00 |
— | ||
|
15
|
15
5V7-14153-00-00 Washer, Main Jet |
5V7-14153-00-00 |
from US $9.92 |
||
|
16
|
16
314-14112-25-00 Valve, Throttle 1 |
314-14112-25-00 |
from US $53.10 |
||
|
17
|
17
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
18
|
18
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
19
|
19
248-14131-00-00 Spring, Throttle Valve |
248-14131-00-00 |
from US $10.46 |
||
|
20
|
20
3X3-14169-00-00 Cap |
3X3-14169-00-00 |
from US $13.60 |
||
|
21
|
21
2A6-14126-00-00 Gasket |
2A6-14126-00-00 |
from US $18.14 |
||
|
22
|
22
10W-14104-00-00 Air Screw Set |
10W-14104-00-00 |
from US $16.47 |
||
|
23
|
23
3X3-14197-00-00
Pipe
|
3X3-14197-00-00 |
— | ||
| replacement | |||||
|
23
|
23
3XV-14348-20-00 Pipe 1 |
3XV-14348-20-00 |
from US $21.10 |
||
|
24
|
24
3L7-14197-00-00 Pipe |
3L7-14197-00-00 |
from US $12.29 |
||
| replacement | |||||
|
24
|
24
3XV-14348-20-00 Pipe 1 |
3XV-14348-20-00 |
from US $21.10 |
||
|
25
|
25
23L-14103-00-00 Throttle Screw Set |
23L-14103-00-00 |
from US $14.96 |
||
| replacement | |||||
|
25
|
25
4AC-14103-00-00 Throttle Screw Set |
4AC-14103-00-00 |
from US $16.04 |
||
|
26
|
26
493-14185-00-00
Float
|
493-14185-00-00 |
— | ||
|
27
|
27
4A7-14141-28-00
Nozzle, Main
|
4A7-14141-28-00 |
— | ||
|
28
|
28
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $10.66 |
||
