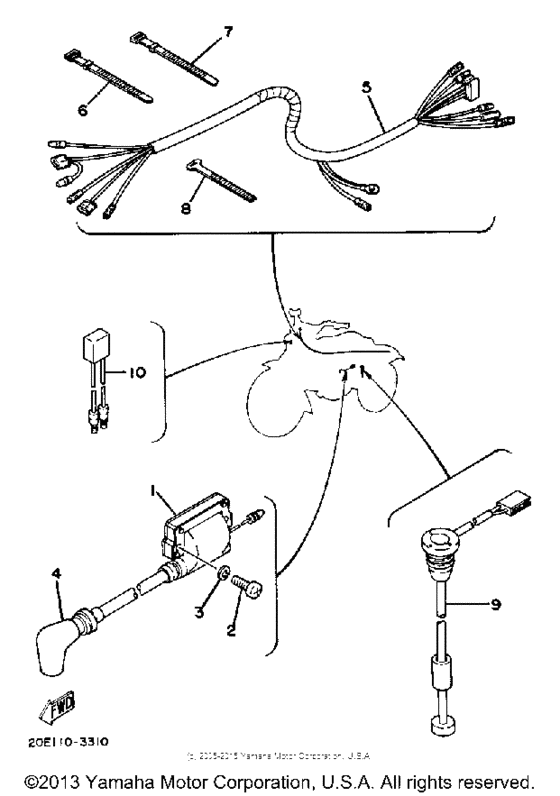

Electrical (1) Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175K
- Engine Capacity
- 175
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
1
|
1
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
2
|
2
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
4
|
4
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
4
|
4
8E7-82370-11-00 Plug Cap AssemblyPlug cap assy with noise suppressor |
8E7-82370-11-00 |
from US $44.80 |
||
| replacement | |||||
|
4
|
4
7KA-82370-00-00 Plug Cap Assy |
7KA-82370-00-00 |
from US $52.92 |
||
|
5
|
5
5V6-82590-00-00
Wire Harness Assembly
|
5V6-82590-00-00 |
— | ||
|
6
|
6
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
7
|
7
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
8
|
8
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
9
|
9
3E1-85720-11-00 Oil Level Gauge Assy |
3E1-85720-11-00 |
from US $42.91 |
||
| replacement | |||||
|
9
|
9
3E1-85720-15-00 Oil Level Gauge Assy |
3E1-85720-15-00 |
from US $48.22 |
||
|
10
|
10
3X3-85774-00-00
Checker, Pilot Lamp
|
3X3-85774-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
