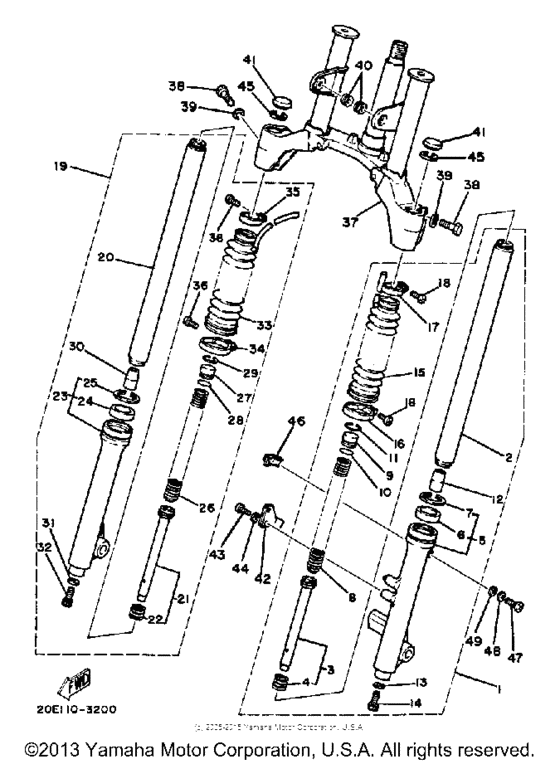

Front fork Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175K
- Engine Capacity
- 175
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-23102-00-00
Front Fork Assembly L
|
5V7-23102-00-00 |
— | ||
|
2
|
2
5V7-23110-00-00
Inner Tube 1
|
5V7-23110-00-00 |
— | ||
|
3
|
3
5V7-23170-00-00
Cylinder, Frtfrk
|
5V7-23170-00-00 |
— | ||
|
4
|
4
5H5-23151-00-00
Spring, Rebound
|
5H5-23151-00-00 |
— | ||
|
5
|
5
5V7-23106-00-00
Outer Tube Lh
LH |
5V7-23106-00-00 |
— | ||
|
6
|
6
93110-30008-00 Oil Seal, Swo-Type |
93110-30008-00 |
from US $11.62 |
||
| replacement | |||||
|
6
|
6
93110-30013-00 Oil Seal, Swo-Type |
93110-30013-00 |
from US $11.62 |
||
|
7
|
7
93450-43072-00 Circlip, Inner |
93450-43072-00 |
from US $2.79 |
||
|
8
|
8
5V7-23141-00-00
Spring, Front Fork
|
5V7-23141-00-00 |
— | ||
|
9
|
9
5H5-23111-00-00 Bolt, Cap |
5H5-23111-00-00 |
from US $28.89 |
||
|
10
|
10
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.70 |
||
|
11
|
11
93450-27071-00 Circlip, Inner |
93450-27071-00 |
from US $3.40 |
||
|
12
|
12
5H2-W1494-00-00
Pilot Screw Set
IN PRICE BOOK |
5H2-W1494-00-00 |
— | ||
|
13
|
13
90430-08155-00 Gasket |
90430-08155-00 |
US $1.70 |
||
| replacements | |||||
|
13
|
13
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.70 |
||
|
13
|
13
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
14
|
14
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.42 |
||
|
15
|
15
5V7-2312A-00-00
Boot
|
5V7-2312A-00-00 |
— | ||
|
16
|
16
904-60522-59-00
Clamp, Hose
|
904-60522-59-00 |
— | ||
|
17
|
17
90460-35260-00 Clamp, Hose |
90460-35260-00 |
from US $4.56 |
||
|
18
|
18
978-01040-20-00 Screw, Pan Head |
978-01040-20-00 |
US $2.20 |
||
| replacement | |||||
|
18
|
18
98580-04020-00 Screw, Pan Head |
98580-04020-00 |
from US $2.69 |
||
|
19
|
19
5V7-23103-00-00
Front Fork Assembly R
|
5V7-23103-00-00 |
— | ||
|
20
|
20
5V7-23110-00-00
Inner Tube 1
|
5V7-23110-00-00 |
— | ||
|
21
|
21
5V7-23170-00-00
Cylinder, Frtfrk
|
5V7-23170-00-00 |
— | ||
|
22
|
22
5H5-23151-00-00
Spring, Rebound
|
5H5-23151-00-00 |
— | ||
|
23
|
23
5V7-23107-00-00
Outer Tube Rh
RH |
5V7-23107-00-00 |
— | ||
|
24
|
24
93110-30008-00 Oil Seal, Swo-Type |
93110-30008-00 |
from US $11.62 |
||
| replacement | |||||
|
24
|
24
93110-30013-00 Oil Seal, Swo-Type |
93110-30013-00 |
from US $11.62 |
||
|
25
|
25
93450-43072-00 Circlip, Inner |
93450-43072-00 |
from US $2.79 |
||
|
26
|
26
5V7-23141-00-00
Spring, Front Fork
|
5V7-23141-00-00 |
— | ||
|
27
|
27
5H5-23111-00-00 Bolt, Cap |
5H5-23111-00-00 |
from US $28.89 |
||
|
28
|
28
93210-21276-00 O-Ring |
93210-21276-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
93210-21001-00 O-Ring |
93210-21001-00 |
from US $1.70 |
||
|
29
|
29
93450-27071-00 Circlip, Inner |
93450-27071-00 |
from US $3.40 |
||
|
30
|
30
5H5-23173-00-00 Spindle, Taper |
5H5-23173-00-00 |
from US $21.80 |
||
|
31
|
31
90430-08155-00 Gasket |
90430-08155-00 |
US $1.70 |
||
| replacements | |||||
|
31
|
31
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.70 |
||
|
31
|
31
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
32
|
32
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.42 |
||
|
33
|
33
5V7-2312A-00-00
Boot
|
5V7-2312A-00-00 |
— | ||
|
34
|
34
904-60522-59-00
Clamp, Hose
|
904-60522-59-00 |
— | ||
|
35
|
35
90460-35260-00 Clamp, Hose |
90460-35260-00 |
from US $4.56 |
||
|
36
|
36
978-01040-20-00 Screw, Pan Head |
978-01040-20-00 |
US $2.20 |
||
| replacement | |||||
|
36
|
36
98580-04020-00 Screw, Pan Head |
98580-04020-00 |
from US $2.69 |
||
|
37
|
37
5V7-23340-00-98
Under Bracket
|
5V7-23340-00-98 |
— | ||
|
38
|
38
970-26100-30-00 Bolt, Hexagon |
970-26100-30-00 |
from US $2.61 |
||
| replacement | |||||
|
38
|
38
97017-10030-00 Bolt |
97017-10030-00 |
from US $4.11 |
||
|
39
|
39
92906-10100-00 Washer, Spring |
92906-10100-00 |
from US $1.21 |
||
| replacement | |||||
|
39
|
39
92907-10100-00 Washer, Spring |
92907-10100-00 |
from US $1.21 |
||
|
40
|
40
904-80203-18-00
Grommet
|
904-80203-18-00 |
— | ||
|
41
|
41
5V7-23154-00-00
Plug, Inner Tube
|
5V7-23154-00-00 |
— | ||
|
42
|
42
5V7-23317-00-00
Holder, Cable
|
5V7-23317-00-00 |
— | ||
|
43
|
43
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
44
|
44
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
45
|
45
934-40280-99-00
Circlip, Outer
|
934-40280-99-00 |
— | ||
|
46
|
46
5V7-23319-00-00
Holder, Cable 2
|
5V7-23319-00-00 |
— | ||
|
47
|
47
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
47
|
47
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
48
|
48
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
49
|
49
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
49
|
49
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
49
|
49
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
49
|
49
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
