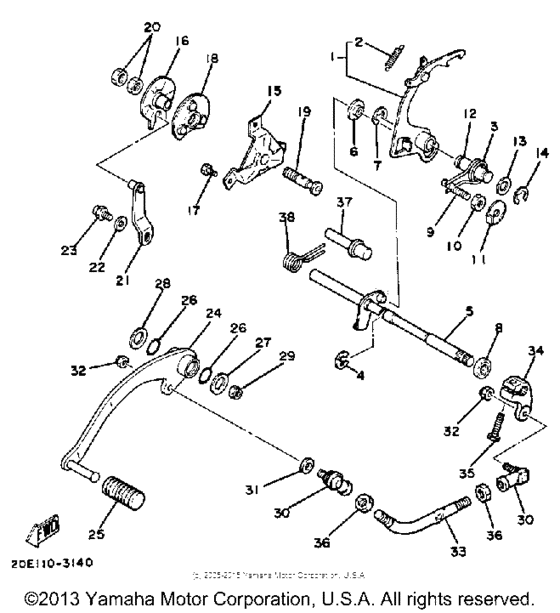

Shift shaft - pedal Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175K
- Engine Capacity
- 175
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X3-18120-00-00
Shift Lever Assembly
|
3X3-18120-00-00 |
— | ||
|
2
|
2
90506-08155-00 Spring, Tension |
90506-08155-00 |
from US $2.41 |
||
|
3
|
3
905-08325-59-00
Spring, Torsion
|
905-08325-59-00 |
— | ||
|
4
|
4
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
5
|
5
5V6-18101-00-00
Shift Shaft Assembly.1
|
5V6-18101-00-00 |
— | ||
|
6
|
6
3X3-18178-00-00
Roller, Shift Lever
|
3X3-18178-00-00 |
— | ||
|
7
|
7
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
8
|
8
931-01120-60-00 Oil Seal |
931-01120-60-00 |
from US $6.94 |
||
| replacement | |||||
|
8
|
8
931-01121-73-00 Oil Seal |
931-01121-73-00 |
from US $4.64 |
||
|
9
|
9
90149-08111-00 Screw, Specl Shape |
90149-08111-00 |
from US $4.96 |
||
|
10
|
10
90170-08029-00 Nut, Hexagon |
90170-08029-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
11
|
11
90215-08014-00 Washer, Lock |
90215-08014-00 |
from US $2.55 |
||
|
12
|
12
1W1-18197-01-00 Shaft |
1W1-18197-01-00 |
from US $9.07 |
||
|
13
|
13
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
14
|
14
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
15
|
15
3X3-18179-00-00
Guide
|
3X3-18179-00-00 |
— | ||
|
16
|
16
3X3-18172-00-00
Guide, Shift
|
3X3-18172-00-00 |
— | ||
|
17
|
17
91316-06014-00 Bolt |
91316-06014-00 |
from US $1.28 |
||
| replacements | |||||
|
17
|
17
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
17
|
17
913-17060-14-00 Bolt |
913-17060-14-00 |
from US $1.28 |
||
|
18
|
18
3X3-18181-00-00
Holder, Pawl
|
3X3-18181-00-00 |
— | ||
|
19
|
19
3X3-18176-00-00
Bolt, Adjust
|
3X3-18176-00-00 |
— | ||
|
20
|
20
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
20
|
20
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
21
|
21
3X3-18191-01-00
Lever
|
3X3-18191-01-00 |
— | ||
|
22
|
22
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
22
|
22
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
23
|
23
901-09065-60-00
Bolt
|
901-09065-60-00 |
— | ||
|
24
|
24
4U3-18111-00-00
Pedal, Shift
|
4U3-18111-00-00 |
— | ||
|
25
|
25
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
26
|
26
93210-15566-00 O-Ring (22U) |
93210-15566-00 |
from US $1.35 |
||
|
27
|
27
90201-08795-00 Washer, Plate |
90201-08795-00 |
from US $1.98 |
||
| replacement | |||||
|
27
|
27
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
28
|
28
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.66 |
||
|
29
|
29
95616-08100-00 Nut, U (5V6) |
95616-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
29
|
29
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
30
|
30
5V6-18156-00-00
Ball, L R
|
5V6-18156-00-00 |
— | ||
|
31
|
31
90201-081A6-00 Washer, Plate |
90201-081A6-00 |
from US $1.70 |
||
| replacement | |||||
|
31
|
31
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.70 |
||
|
32
|
32
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
32
|
32
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
33
|
33
5V6-18115-00-00
Rod, Shift
|
5V6-18115-00-00 |
— | ||
|
34
|
34
5V6-18116-00-00
Joint, Rod 1
|
5V6-18116-00-00 |
— | ||
|
35
|
35
958-11060-25-00
Bolt, Flange
|
958-11060-25-00 |
— | ||
| replacements | |||||
|
35
|
35
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
35
|
35
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
36
|
36
95316-12700-00 Nut |
95316-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
36
|
36
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.13 |
||
|
37
|
37
5V6-15168-00-00
Plug, Blind 2
|
5V6-15168-00-00 |
— | ||
|
38
|
38
905-08295-01-00
Spring, Torsion
|
905-08295-01-00 |
— | ||
