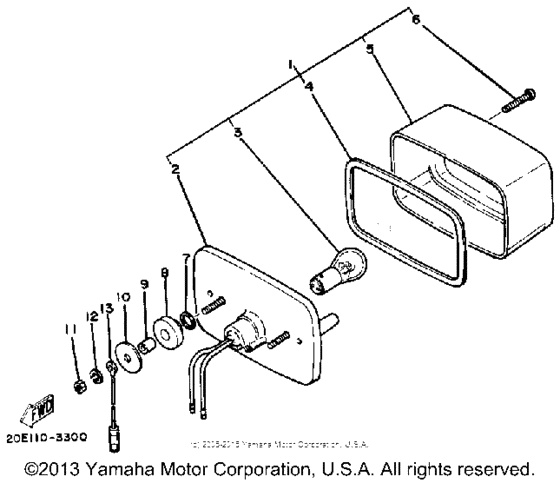

Taillight Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175K
- Engine Capacity
- 175
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-84510-60-00 Taillight Unit Assembly |
5V7-84510-60-00 |
US $87.80 |
||
|
2
|
2
5V7-84510-60-00 Taillight Unit Assembly |
5V7-84510-60-00 |
US $87.80 |
||
|
3
|
3
1M1-84514-60-00
Bulb (6V-25/5.3W)
6VP21/5W17904 |
1M1-84514-60-00 |
— | ||
| replacement | |||||
|
3
|
3
1M1-84514-60-XX
BOLT
6VP21/5W17904 |
1M1-84514-60-XX |
— | ||
|
4
|
4
1K8-84523-00-00 Gasket, Lens |
1K8-84523-00-00 |
from US $4.64 |
||
|
5
|
5
1K8-84521-00-00 Lens, Taillight |
1K8-84521-00-00 |
from US $23.99 |
||
|
6
|
6
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
7
|
7
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
8
|
8
90480-14088-00 Grommet |
90480-14088-00 |
from US $1.98 |
||
|
9
|
9
90560-07007-00 Spacer |
90560-07007-00 |
from US $2.13 |
||
|
10
|
10
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.56 |
||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
87D-82318-00-00
Wire, Sub-Lead
|
87D-82318-00-00 |
— | ||
| replacement | |||||
|
13
|
13
85L-82318-01-00
Wire Sub Lead
|
85L-82318-01-00 |
— | ||
