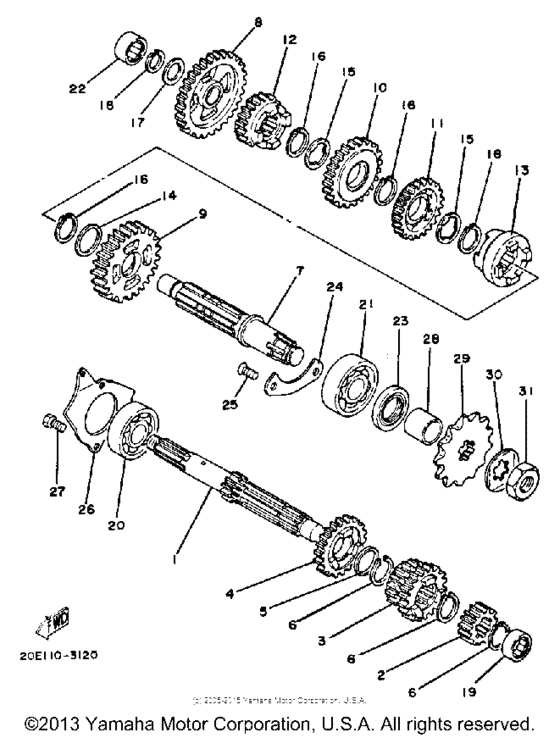

Transmission Diagram Yamaha TRI-MOTO Tri-Moto 175
- Model code
- YT175K
- Engine Capacity
- 175
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5V7-17411-00-00
Axle, Main
|
5V7-17411-00-00 |
— | ||
|
2
|
2
2A6-17121-00-00
Gear, 2Nd Pinion (14T)
2ND PINION |
2A6-17121-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
2ND PINION |
999-99999-99-00 |
— | ||
|
3
|
3
5V7-17131-01-00
Gear, 3Rd/4Th Pinion (18/21T)
3RD PINION |
5V7-17131-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
3RD PINION |
999-99999-99-00 |
— | ||
|
4
|
4
5V7-17151-00-00
Gear, 5Th Pinion
5TH PINION |
5V7-17151-00-00 |
— | ||
| replacement | |||||
|
4
|
4
5V7-17151-01-00
Gear, 5Th Pinion (23T)
5TH PINION |
5V7-17151-01-00 |
— | ||
|
5
|
5
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
6
|
6
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
7
|
7
3X3-17421-00-00
Axle, Drive
|
3X3-17421-00-00 |
— | ||
|
8
|
8
5V7-17211-00-00
Gear, 1St Wheel (35T)
1ST WHEEL |
5V7-17211-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
1ST WHEEL |
999-99999-99-00 |
— | ||
|
9
|
9
5V7-17221-00-00
Gear, 2Nd Wheel (31T)
2ND WHEEL |
5V7-17221-00-00 |
— | ||
|
10
|
10
5V7-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
5V7-17231-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
3RD WHEEL |
999-99999-99-00 |
— | ||
|
11
|
11
5V7-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
5V7-17241-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
4TH WHEEL |
999-99999-99-00 |
— | ||
|
12
|
12
10V-17251-00-00 Gear, 5Th Wheel (23T)5TH WHEEL |
10V-17251-00-00 |
US $69.93 |
||
|
13
|
13
5V7-17285-00-00
Clutch, Dog
|
5V7-17285-00-00 |
— | ||
|
14
|
14
90201-22555-00 Washer, Plate |
90201-22555-00 |
from US $1.70 |
||
|
15
|
15
90209-18135-00 Washer |
90209-18135-00 |
from US $1.84 |
||
|
16
|
16
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
17
|
17
90201-15701-00 Washer, Plate (T=1.0) |
90201-15701-00 |
from US $1.84 |
||
|
18
|
18
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
18
|
18
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
19
|
19
93311-41530-00 Bearing |
93311-41530-00 |
from US $20.97 |
||
|
20
|
20
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
20
|
20
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
21
|
21
93306-30411-00 Bearing (B6304) |
93306-30411-00 |
from US $16.15 |
||
|
22
|
22
93311-31567-00 Bearing |
93311-31567-00 |
from US $22.82 |
||
|
23
|
23
931-02260-42-00 Oil Seal |
931-02260-42-00 |
from US $6.09 |
||
|
24
|
24
1W1-15381-00-00 Plate, Brng Cover |
1W1-15381-00-00 |
from US $4.37 |
||
|
25
|
25
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
26
|
26
1W1-17471-01-00 Plate, Cover |
1W1-17471-01-00 |
from US $7.70 |
||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
27
|
27
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
28
|
28
903-87207-E3-00
Collar
|
903-87207-E3-00 |
— | ||
|
29
|
29
938-32110-07-00 Sprocket, Drive 11T11T |
938-32110-07-00 |
from US $17.24 |
||
|
30
|
30
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
31
|
31
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $2.66 |
||
