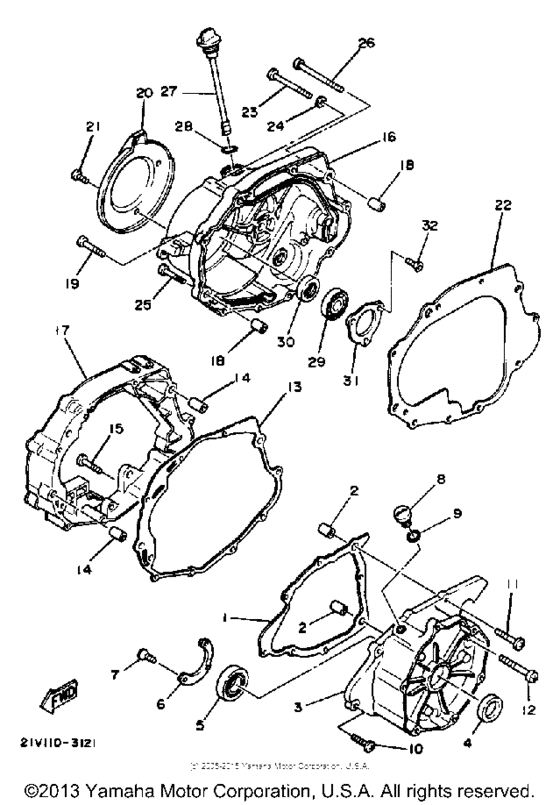

Crankcase cover Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200EL
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BD-15451-00-00 Gasket, Crankcase Cover 1 |
4BD-15451-00-00 |
from US $10.34 |
||
| replacement | |||||
|
1
|
1
4BD-15451-01-00 Gasket, Crankcase Cover 1 |
4BD-15451-01-00 |
from US $10.34 |
||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
3
|
3
24W-15787-00-00
Adaptor
|
24W-15787-00-00 |
— | ||
| replacement | |||||
|
3
|
3
29U-15787-00-00
Adaptor
|
29U-15787-00-00 |
— | ||
|
4
|
4
93103-28141-00 Oil Seal |
93103-28141-00 |
from US $16.29 |
||
|
5
|
5
93306-20547-00 Bearing |
93306-20547-00 |
from US $19.84 |
||
| replacement | |||||
|
5
|
5
93306-07801-00 Bearing |
93306-07801-00 |
from US $19.84 |
||
|
6
|
6
21V-15719-00-00 Washer, Thrust |
21V-15719-00-00 |
from US $6.66 |
||
|
7
|
7
90151-05031-00 Screw, Countersunk |
90151-05031-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
90151-05023-00 Screw, Countersunk |
90151-05023-00 |
from US $2.13 |
||
|
8
|
8
90340-14079-00 Plug, Straight Screw |
90340-14079-00 |
from US $14.03 |
||
|
9
|
9
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.70 |
||
|
10
|
10
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
11
|
11
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
12
|
12
98506-06060-00 Screw Pan Head |
98506-06060-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.34 |
||
|
13
|
13
4BD-15462-00-00 Gasket, Crankcase Cover 3 |
4BD-15462-00-00 |
from US $21.68 |
||
|
14
|
14
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
14
|
14
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
15
|
15
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
16
|
16
21V-15431-00-00
Cover,crankcase 3
|
21V-15431-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99026-17-00
Cover, Crankcase 3 (21V1543100
|
999-99026-17-00 |
— | ||
|
17
|
17
21V-15317-00-00
Spacer, Engine
|
21V-15317-00-00 |
— | ||
| replacements | |||||
|
17
|
17
21V-15317-01-00
COVER,CRANKCASE 3
|
21V-15317-01-00 |
— | ||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
21V-15317-00-00
Spacer, Engine
|
21V-15317-00-00 |
— | ||
| replacements | |||||
|
18
|
18
21V-15317-01-00
COVER,CRANKCASE 3
|
21V-15317-01-00 |
— | ||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
18
|
18
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
19
|
19
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
20
|
20
21V-15499-00-00
Protector, Cover
|
21V-15499-00-00 |
— | ||
|
21
|
21
98906-06014-00 Screw, Bind |
98906-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
98907-06014-00 Screw, Binding |
98907-06014-00 |
from US $1.56 |
||
|
22
|
22
4BD-15463-00-00 Gasket, Cover Pinion 2 |
4BD-15463-00-00 |
from US $28.62 |
||
| replacement | |||||
|
22
|
22
4BD-15463-01-00 Gasket, Cover Pinion 2 |
4BD-15463-01-00 |
from US $29.75 |
||
|
23
|
23
98506-06070-00 Screw Pan Head |
98506-06070-00 |
from US $1.21 |
||
| replacement | |||||
|
23
|
23
98507-06070-00 Screw, Pan Head |
98507-06070-00 |
from US $1.21 |
||
|
24
|
24
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
25
|
25
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
26
|
26
985-06060-80-00
Screw Pan Head
|
985-06060-80-00 |
— | ||
| replacement | |||||
|
26
|
26
98507-06080-00 Screw, Pan Head |
98507-06080-00 |
from US $1.42 |
||
|
27
|
27
1UY-15362-01-00 Plug, Oil Level |
1UY-15362-01-00 |
from US $11.76 |
||
|
28
|
28
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
29
|
29
93306-20326-00 Bearing |
93306-20326-00 |
from US $17.57 |
||
| replacement | |||||
|
29
|
29
93306-20335-00 Bearing |
93306-20335-00 |
from US $13.24 |
||
|
30
|
30
93101-17113-00 Oil Seal |
93101-17113-00 |
from US $7.51 |
||
|
31
|
31
21V-15381-00-00 Plate, Bearing Cover |
21V-15381-00-00 |
US $16.56 |
||
|
32
|
32
90151-06025-00 Screw, Countersunk |
90151-06025-00 |
from US $1.98 |
||
