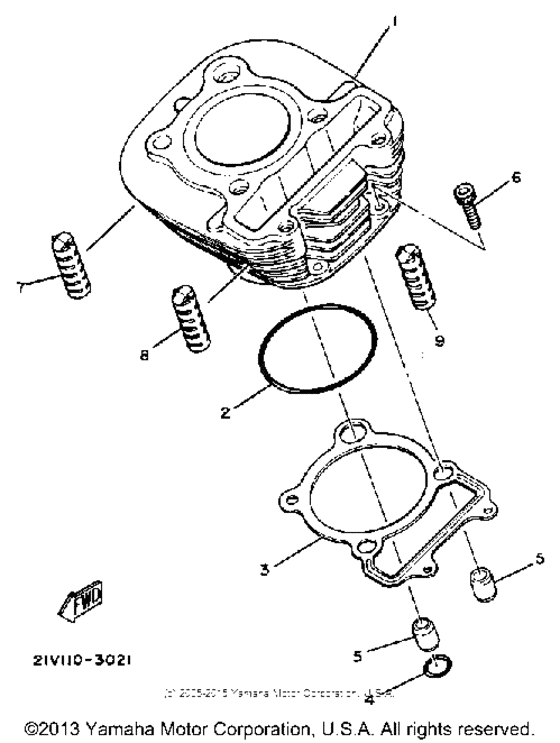

Cylinder Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200EL
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21V-11310-00-00 Cylinder |
21V-11310-00-00 |
from US $367.80 |
||
|
2
|
2
93210-71470-00 O-Ring (93210-72529-00)93210-72529-00 |
93210-71470-00 |
from US $8.36 |
||
|
3
|
3
4CS-11351-00-00 Gasket, Cylinder |
4CS-11351-00-00 |
from US $9.21 |
||
| replacements | |||||
|
3
|
3
5VC-11351-01-00 Gasket, Cylinder |
5VC-11351-01-00 |
from US $9.21 |
||
|
3
|
3
5VC-11351-02-00 GASKET CYLINDER |
5VC-11351-02-00 |
from US $9.21 |
||
|
4
|
4
93210-13361-00 O-Ring |
93210-13361-00 |
from US $1.28 |
||
|
5
|
5
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
6
|
6
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
7
|
7
15A-11162-00-00 Absorber 2 |
15A-11162-00-00 |
from US $3.32 |
||
|
8
|
8
5H0-11161-00-00 Absorber 1 |
5H0-11161-00-00 |
from US $1.66 |
||
|
9
|
9
15A-11162-00-00 Absorber 2 |
15A-11162-00-00 |
from US $3.32 |
||
