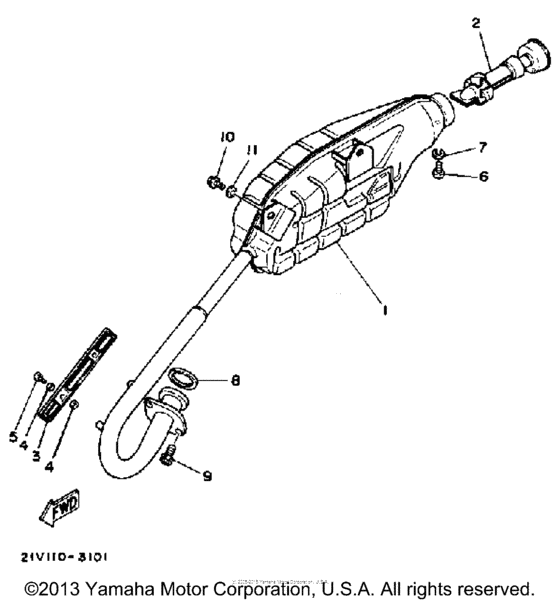

Exhaust Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200EL
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21V-14711-01-00
Muffler L
|
21V-14711-01-00 |
— | ||
|
2
|
2
21V-14752-00-00 Pipe, Outlet |
21V-14752-00-00 |
from US $85.38 |
||
|
3
|
3
21V-14628-00-00
Protc, Exhaust Pipepipe
|
21V-14628-00-00 |
— | ||
|
4
|
4
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
5
|
5
98906-06008-00 Screw, Binding (8G6) |
98906-06008-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
98907-06008-00 Screw, Bind |
98907-06008-00 |
from US $1.21 |
||
|
6
|
6
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
6
|
6
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
4BE-14613-00-00 Gasket, Exhaust Pipe |
4BE-14613-00-00 |
from US $2.32 |
||
|
9
|
9
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
9
|
9
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
10
|
10
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
11
|
11
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.66 |
||
| replacement | |||||
|
11
|
11
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
