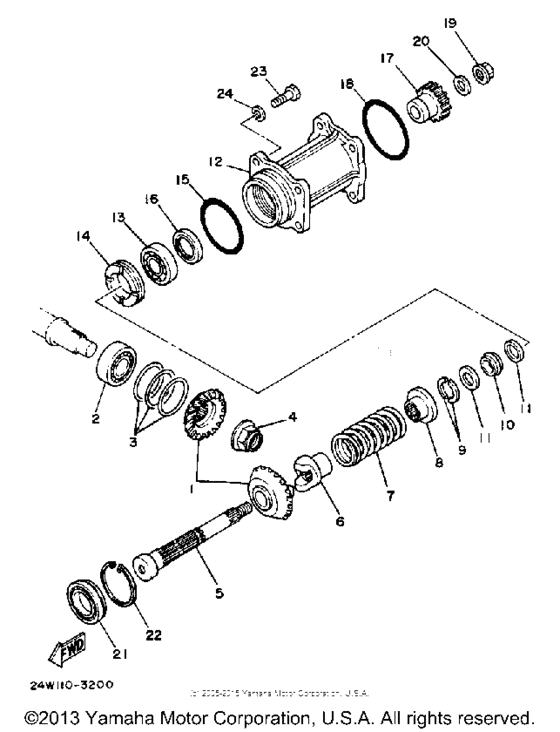

Middle drive gear Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200EL
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24W-Y1754-00-00
Middle Gear Comp (24W-W1751-00)
24W-W1751-00 |
24W-Y1754-00-00 |
— | ||
|
2
|
2
93306-30432-00 Bearing (4Ed)4ED |
93306-30432-00 |
from US $26.21 |
||
| replacement | |||||
|
2
|
2
933-06304-42-00 Bearing4ED |
933-06304-42-00 |
from US $26.21 |
||
|
3
|
3
24W-17537-30-00 Shim, Thrust (0.2T)0.2T U.R. |
24W-17537-30-00 |
from US $3.83 |
||
|
3
|
3
24W-17537-50-00 Shim, Thrust (0.4T)0.4T U.R. |
24W-17537-50-00 |
from US $2.79 |
||
|
3
|
3
24W-17537-40-00 Shim, Thrust (0.3T)0.3T U.R. |
24W-17537-40-00 |
from US $3.83 |
||
|
4
|
4
90179-16417-00 Nut |
90179-16417-00 |
from US $10.06 |
||
| replacement | |||||
|
4
|
4
90179-16651-00 Nut |
90179-16651-00 |
from US $10.06 |
||
|
5
|
5
24W-17553-00-00
Shaft, Mdl Driven
|
24W-17553-00-00 |
— | ||
|
6
|
6
24W-17527-01-00
Cam, Driven (24W-17527-00)
24W-17527-00 |
24W-17527-01-00 |
— | ||
|
7
|
7
905-01607-74-00
Spring, Compression
|
905-01607-74-00 |
— | ||
|
8
|
8
24W-17524-00-00
Holder
|
24W-17524-00-00 |
— | ||
|
9
|
9
3H5-17529-00-00 Washer, Thrust |
3H5-17529-00-00 |
from US $1.93 |
||
|
10
|
10
24W-46129-00-00
Spacer, Expansion
|
24W-46129-00-00 |
— | ||
|
11
|
11
902-01173-G4-00
Washer, Plate
|
902-01173-G4-00 |
— | ||
|
12
|
12
24W-17551-00-00
Housing, Bearing
|
24W-17551-00-00 |
— | ||
|
13
|
13
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
14
|
14
901-79504-16-00
Nut, Spec''l Shape
|
901-79504-16-00 |
— | ||
|
15
|
15
932-10565-89-00 O-Ring |
932-10565-89-00 |
from US $3.54 |
||
|
16
|
16
931-01261-17-00
Oil Seal, S-Type
|
931-01261-17-00 |
— | ||
|
17
|
17
24W-17584-00-00
Coupling, Gear
|
24W-17584-00-00 |
— | ||
|
18
|
18
93210-59531-00 O-Ring |
93210-59531-00 |
from US $5.24 |
||
|
19
|
19
90179-12421-00 Nut |
90179-12421-00 |
from US $4.34 |
||
| replacement | |||||
|
19
|
19
90179-12657-00 Nut |
90179-12657-00 |
from US $6.52 |
||
|
20
|
20
90201-125F7-00 Washer, Plate |
90201-125F7-00 |
from US $2.55 |
||
| replacement | |||||
|
20
|
20
90201-12027-00 Washer, Plate |
90201-12027-00 |
from US $2.32 |
||
|
21
|
21
93316-00604-00
Bearing, Cylindrical(24W)
|
93316-00604-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
934-40551-22-00
Circlip, Outer
|
934-40551-22-00 |
— | ||
|
23
|
23
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
24
|
24
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
