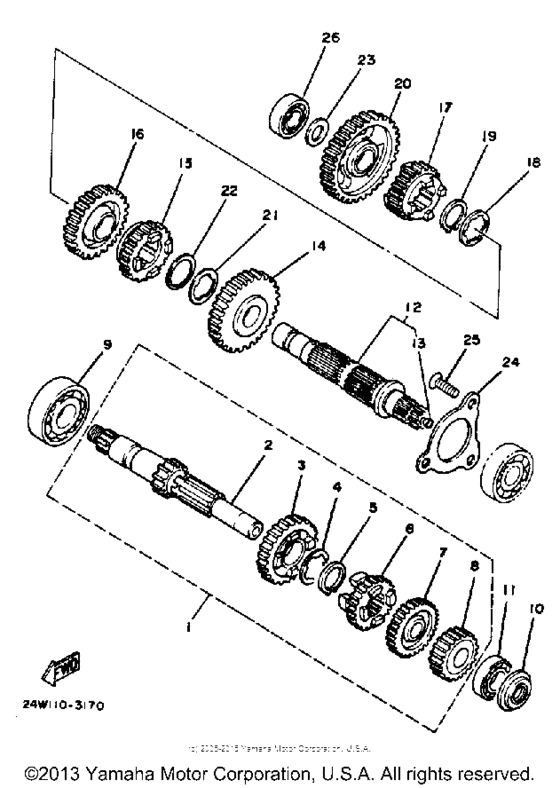

Transmission Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200EL
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24W-17410-10-00
Main Axle
|
24W-17410-10-00 |
— | ||
|
2
|
2
24W-17401-00-00
Main Axle Assembly
|
24W-17401-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
15A-17151-00-00 Gear, 5Th Pinion (28T)5TH PINION 28T |
15A-17151-00-00 |
from US $35.78 |
||
| replacement | |||||
|
3
|
3
15A-17151-01-00 Gear, 5Th Pinion5TH PINION 28T |
15A-17151-01-00 |
from US $35.78 |
||
|
4
|
4
90209-16209-00 Washer |
90209-16209-00 |
from US $1.84 |
||
|
5
|
5
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
6
|
6
24W-17131-00-00 Gear, 3Rd Pinion (21T)3RD PINION |
24W-17131-00-00 |
US $65.07 |
||
|
7
|
7
24W-17141-00-00 Gear, 4Th Pinion4TH PINION 25T |
24W-17141-00-00 |
from US $36.75 |
||
| replacement | |||||
|
7
|
7
15A-17141-00-00 Gear, 4Th Pinion (25T)4TH PINION 25T |
15A-17141-00-00 |
from US $36.75 |
||
|
8
|
8
24W-17121-00-00 Gear, 2Nd Pinion (15T)2ND PINION |
24W-17121-00-00 |
from US $20.84 |
||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
2ND PINION |
999-99999-99-00 |
— | ||
|
9
|
9
933-06204-21-00
Bearing
|
933-06204-21-00 |
— | ||
| replacement | |||||
|
9
|
9
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.02 |
||
|
10
|
10
93101-15101-00 Oil Seal |
93101-15101-00 |
from US $5.81 |
||
|
11
|
11
93306-20211-00 Bearing (B6202) |
93306-20211-00 |
from US $19.13 |
||
|
12
|
12
24W-17402-00-00
Drive Axle Assy
|
24W-17402-00-00 |
— | ||
|
13
|
13
90331-07041-00
Plug, Tight
|
90331-07041-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
24W-17221-10-00
Gear, 2Nd Wheel (31T)
2ND WHEEL |
24W-17221-10-00 |
— | ||
|
15
|
15
24W-17241-00-00 Gear, 4Th Wheel (26T)4TH WHEEL 26T |
24W-17241-00-00 |
from US $57.56 |
||
|
16
|
16
24W-17231-00-00 Gear, 3Rd Wheel (30T)3RD WHEEL |
24W-17231-00-00 |
from US $45.38 |
||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
3RD WHEEL |
999-99999-99-00 |
— | ||
|
17
|
17
1EV-17251-00-00 Gear, 6Th Wheel (23T)6TH WHEEL 23T |
1EV-17251-00-00 |
from US $65.63 |
||
| replacement | |||||
|
17
|
17
5MP-17261-00-00 Gear, 6Th Wheel (23T)6TH WHEEL 23T |
5MP-17261-00-00 |
from US $65.63 |
||
|
18
|
18
90209-18208-00 Washer |
90209-18208-00 |
from US $1.84 |
||
|
19
|
19
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.70 |
||
|
20
|
20
24W-17211-00-00 Gear,1St Wheel |
24W-17211-00-00 |
from US $59.76 |
||
| replacements | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
36X-17211-00-00 Gear, 1St Wheel |
36X-17211-00-00 |
from US $63.97 |
||
|
21
|
21
90209-23233-00 Washer |
90209-23233-00 |
from US $1.84 |
||
| replacement | |||||
|
21
|
21
90209-23241-00 Washer |
90209-23241-00 |
from US $1.84 |
||
|
22
|
22
93440-26121-00 Circlip |
93440-26121-00 |
from US $3.12 |
||
| replacements | |||||
|
22
|
22
99009-26400-00 Circlip |
99009-26400-00 |
from US $1.56 |
||
|
22
|
22
934-10260-67-00
Circlip
|
934-10260-67-00 |
— | ||
|
23
|
23
90201-154E8-00 Washer, Plate (4L0) |
90201-154E8-00 |
from US $1.84 |
||
|
24
|
24
24W-17558-00-00 Plate, Bearing |
24W-17558-00-00 |
US $24.82 |
||
|
25
|
25
90149-08152-00 Screw |
90149-08152-00 |
from US $1.70 |
||
| replacement | |||||
|
25
|
25
90149-08013-00 Screw |
90149-08013-00 |
from US $1.34 |
||
|
26
|
26
93306-20211-00 Bearing (B6202) |
93306-20211-00 |
from US $19.13 |
||
