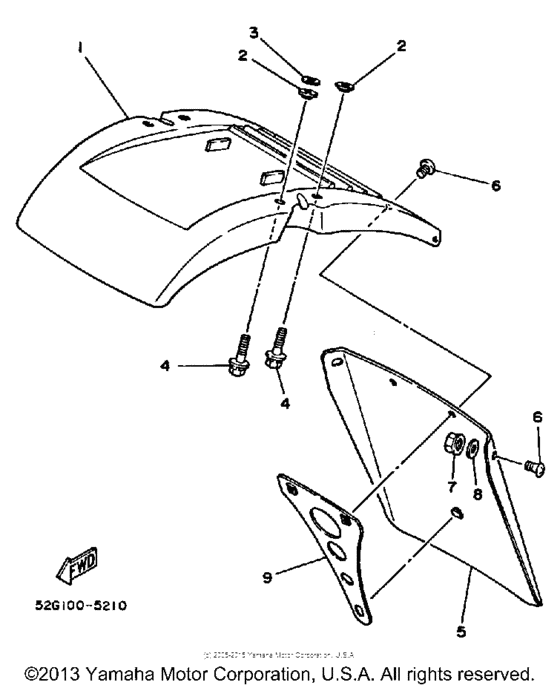

Front fender Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21V-21511-00-00
Fender, Front
|
21V-21511-00-00 |
— | ||
|
2
|
2
90209-06187-00 Washer |
90209-06187-00 |
from US $1.70 |
||
|
3
|
3
90201-06778-00 Washer, Plate |
90201-06778-00 |
from US $1.70 |
||
|
4
|
4
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
|
5
|
5
24W-21521-00-00
Flap, Front Fender
|
24W-21521-00-00 |
— | ||
|
6
|
6
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
7
|
7
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
8
|
8
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
9
|
9
24W-21523-00-00
Plate 1
|
24W-21523-00-00 |
— | ||
