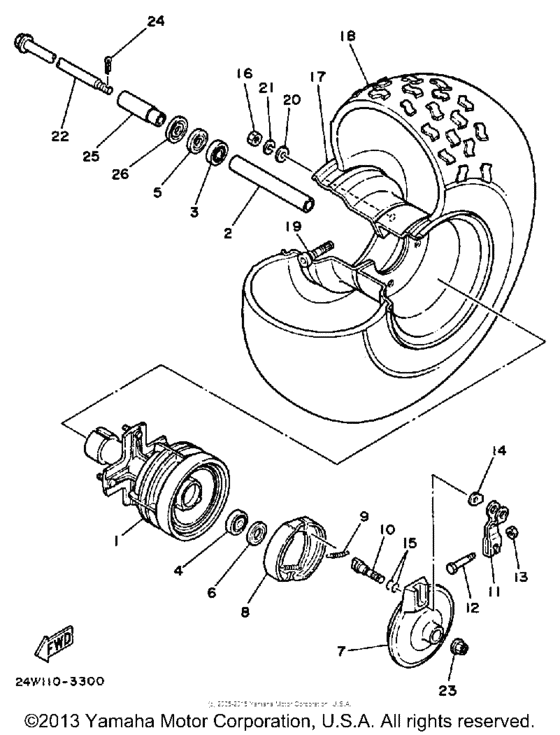

Front wheel Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24W-25111-00-00
Hub, Front
|
24W-25111-00-00 |
— | ||
|
2
|
2
90560-17305-00 Spacer |
90560-17305-00 |
from US $10.20 |
||
|
3
|
3
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
4
|
4
93306-00302-00 Brg,r-B 6003 35Mm 39G Ky |
93306-00302-00 |
from US $22.28 |
||
| replacement | |||||
|
4
|
4
933-06003-15-00 Bearing(2Jn) |
933-06003-15-00 |
from US $24.09 |
||
|
5
|
5
93102-23252-00 Oil Seal |
93102-23252-00 |
from US $10.20 |
||
|
6
|
6
93102-23275-00 Oil Seal |
93102-23275-00 |
from US $7.08 |
||
|
7
|
7
21V-25121-00-35
Plate, Brake Shoe
|
21V-25121-00-35 |
— | ||
|
8
|
8
5G3-W2536-00-00
Brake Shoe Kit
|
5G3-W2536-00-00 |
— | ||
| replacement | |||||
|
8
|
8
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
9
|
9
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
10
|
10
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
10
|
10
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
11
|
11
21V-25155-00-00
Lever, Camshaft 1
|
21V-25155-00-00 |
— | ||
|
12
|
12
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
14
|
14
5V7-2513A-00-00
Plate, Indicator
|
5V7-2513A-00-00 |
— | ||
|
15
|
15
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
15
|
15
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
16
|
16
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
17
|
17
24W-25180-00-35
Wheel, Front
|
24W-25180-00-35 |
— | ||
| replacement | |||||
|
17
|
17
2HT-25390-00-35
Wheel, Rear
|
2HT-25390-00-35 |
— | ||
|
18
|
18
941-12090-H4-00
25X12-9 Kt430 Dun
|
941-12090-H4-00 |
— | ||
|
19
|
19
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
20
|
20
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
21
|
21
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
22
|
22
24W-25181-00-00
Axle, Wheel
|
24W-25181-00-00 |
— | ||
|
23
|
23
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
23
|
23
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
24
|
24
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
24
|
24
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
25
|
25
903-87174-G6-00
Collar
|
903-87174-G6-00 |
— | ||
|
26
|
26
5V6-25118-00-00
Cover, Hub Dust
|
5V6-25118-00-00 |
— | ||
