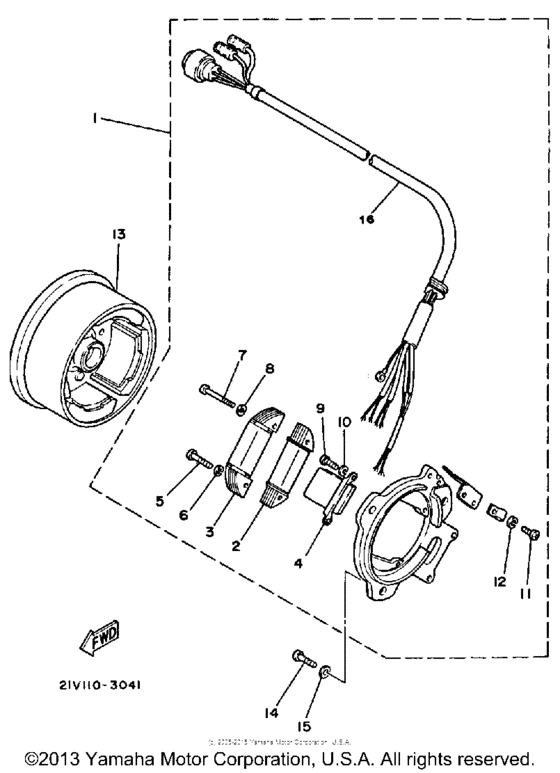

Generator Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29U-85510-20-00
Stator Assembly (24W-85510-20)
24W-85510-20 |
29U-85510-20-00 |
— | ||
|
2
|
2
21V-85512-20-00 Coil Source 2 |
21V-85512-20-00 |
US $118.62 |
||
|
3
|
3
24W-85513-20-00
Coil, Lighting 1
|
24W-85513-20-00 |
— | ||
|
4
|
4
21V-85580-20-00
Coil, Pulser
|
21V-85580-20-00 |
— | ||
| replacement | |||||
|
4
|
4
59V-85580-20-00
Coil, Pulser
|
59V-85580-20-00 |
— | ||
|
5
|
5
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
5
|
5
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
6
|
6
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
6
|
6
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
7
|
7
619-81345-20-00
Screw, Pan Head (811-14125-0)
811-14125-0 |
619-81345-20-00 |
— | ||
|
8
|
8
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
9
|
9
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
24W-85550-20-00
Rotor Assembly
|
24W-85550-20-00 |
— | ||
|
14
|
14
92503-06016-00 New Genuine PartIN PRICE BOOK 9250 |
92503-06016-00 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
98507-06014-00 Screw, Pan HeadIN PRICE BOOK 9250 |
98507-06014-00 |
from US $1.07 |
||
|
15
|
15
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
16
|
16
29U-85515-20-00
Lead Wire Assembly
|
29U-85515-20-00 |
— | ||
