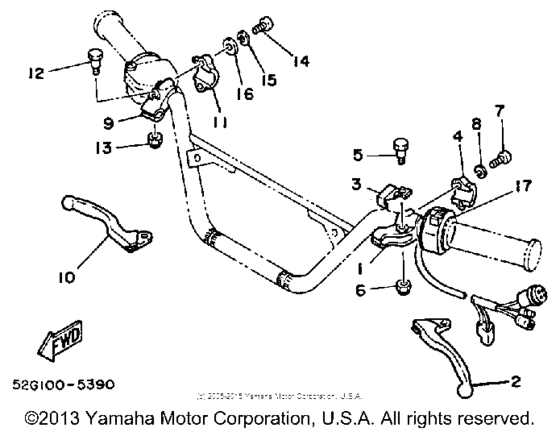

Handle switch-lever Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5F6-82911-00-00
Holder, Lever 1
|
5F6-82911-00-00 |
— | ||
|
2
|
2
23X-83912-00-00
Lever 1
|
23X-83912-00-00 |
— | ||
| replacement | |||||
|
2
|
2
23X-83912-02-00 Lever 1 |
23X-83912-02-00 |
from US $21.96 |
||
|
3
|
3
3X3-83965-00-00 Lever, Lock |
3X3-83965-00-00 |
from US $11.19 |
||
|
4
|
4
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
5
|
5
2H7-83945-00-00
Bolt
|
2H7-83945-00-00 |
— | ||
| replacements | |||||
|
5
|
5
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.26 |
||
|
5
|
5
90109-06798-00 Bolt |
90109-06798-00 |
from US $3.40 |
||
|
6
|
6
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
7
|
7
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
8
|
8
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
9
|
9
38V-82921-00-00 Holder, Lever 2 |
38V-82921-00-00 |
from US $24.23 |
||
|
10
|
10
23X-83922-00-00
Lever 2
|
23X-83922-00-00 |
— | ||
| replacement | |||||
|
10
|
10
23X-83922-01-00 Lever 2 |
23X-83922-01-00 |
from US $9.92 |
||
|
11
|
11
38V-82913-00-00 Holder, Lever Lower 1 |
38V-82913-00-00 |
from US $3.98 |
||
|
12
|
12
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
12
|
12
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
13
|
13
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
14
|
14
985-06050-18-00
Screw, Pan Head
|
985-06050-18-00 |
— | ||
| replacement | |||||
|
14
|
14
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
15
|
15
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
16
|
16
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
17
|
17
24W-83973-09-00 Switch, Handle 3 |
24W-83973-09-00 |
US $223.13 |
||
| replacement | |||||
|
17
|
17
24W-83973-08-00 LEAD WIRE ASSY |
24W-83973-08-00 |
US $146.36 |
||
