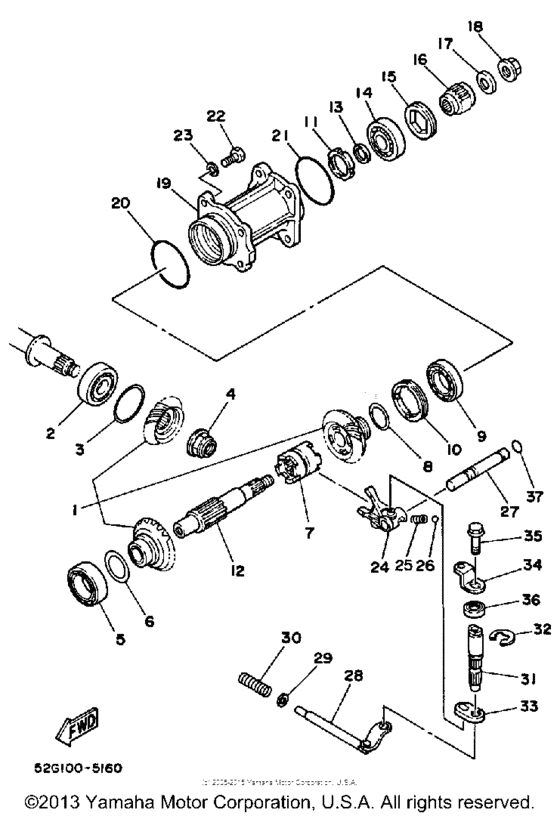

Middle drive gear Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52G-W1751-00-00 Pinion Set |
52G-W1751-00-00 |
from US $370.92 |
||
| replacement | |||||
|
1
|
1
52G-17530-00-00 Pinion Set |
52G-17530-00-00 |
from US $370.92 |
||
|
2
|
2
93306-30432-00 Bearing (4Ed)4ED |
93306-30432-00 |
from US $26.21 |
||
| replacement | |||||
|
2
|
2
933-06304-42-00 Bearing4ED |
933-06304-42-00 |
from US $26.21 |
||
|
3
|
3
24W-17537-30-00 Shim, Thrust (0.2T)0.2T U.R. |
24W-17537-30-00 |
from US $3.83 |
||
|
3
|
3
24W-17537-40-00 Shim, Thrust (0.3T)0.3T U.R. |
24W-17537-40-00 |
from US $3.83 |
||
|
3
|
3
24W-17537-50-00 Shim, Thrust (0.4T)0.4T U.R. |
24W-17537-50-00 |
from US $2.79 |
||
|
4
|
4
90179-16417-00 Nut |
90179-16417-00 |
from US $10.06 |
||
| replacement | |||||
|
4
|
4
90179-16651-00 Nut |
90179-16651-00 |
from US $10.06 |
||
|
5
|
5
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $23.09 |
||
|
6
|
6
52G-17531-00-20 Shim, Pinion |
52G-17531-00-20 |
from US $2.98 |
||
| replacement | |||||
|
6
|
6
52G-17531-21-00 Shim, Pinion (0.2T) |
52G-17531-21-00 |
from US $2.98 |
||
|
6
|
6
52G-17531-00-40 Shim, Pinion |
52G-17531-00-40 |
from US $2.98 |
||
| replacement | |||||
|
6
|
6
52G-17531-41-00 Shim, Pinion (0.4T) |
52G-17531-41-00 |
from US $2.98 |
||
|
6
|
6
52G-17531-00-30 Shim, Pinion |
52G-17531-00-30 |
from US $2.98 |
||
| replacement | |||||
|
6
|
6
52G-17531-31-00 Shim, Pinion (0.3T) |
52G-17531-31-00 |
from US $2.98 |
||
|
7
|
7
52G-17285-00-00 Clutch, Dog |
52G-17285-00-00 |
from US $64.10 |
||
|
8
|
8
52G-17967-00-20 Shim, (0.2T)0.2T U.R. |
52G-17967-00-20 |
from US $1.66 |
||
| replacement | |||||
|
8
|
8
52G-17967-30-00 Shim, (0.2T)0.2T U.R. |
52G-17967-30-00 |
from US $1.24 |
||
|
8
|
8
52G-17967-00-30 Shim, (0.3T)0.3T U.R. |
52G-17967-00-30 |
from US $1.48 |
||
| replacement | |||||
|
8
|
8
52G-17967-40-00 Shim, (0.3T)0.3T U.R. |
52G-17967-40-00 |
from US $0.58 |
||
|
8
|
8
52G-17967-00-40 Shim, (0.4T)0.4T U.R. |
52G-17967-00-40 |
US $1.51 |
||
| replacement | |||||
|
8
|
8
52G-17967-50-00 Shim0.4T U.R. |
52G-17967-50-00 |
US $1.51 |
||
|
9
|
9
93306-07801-00 Bearing |
93306-07801-00 |
from US $19.84 |
||
|
10
|
10
90179-55464-00 Nut |
90179-55464-00 |
from US $14.88 |
||
|
11
|
11
90179-28465-00 Nut |
90179-28465-00 |
from US $12.18 |
||
|
12
|
12
52G-17553-00-00
Shaft, Mdl Driven
|
52G-17553-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
52G-17968-00-10
Shim, (1.0T)
1.0T U.R. |
52G-17968-00-10 |
— | ||
|
13
|
13
52G-17968-00-12
Shim, (1.2T)
1.2T U.R. |
52G-17968-00-12 |
— | ||
|
13
|
13
52G-17968-00-14 Shim, (1.4T)1.4T U.R. |
52G-17968-00-14 |
US $10.78 |
||
| replacement | |||||
|
13
|
13
52G-17968-40-00 element1.4T U.R. |
52G-17968-40-00 |
US $1.82 |
||
|
13
|
13
52G-17968-00-16
Shim, (1.6T)
1.6T U.R. |
52G-17968-00-16 |
— | ||
|
13
|
13
52G-17968-00-18 Shim, (1.8T)1.8T U.R. |
52G-17968-00-18 |
US $2.90 |
||
|
14
|
14
93399-99917-00 Bearing |
93399-99917-00 |
from US $34.26 |
||
|
15
|
15
90179-50467-00
Nut
|
90179-50467-00 |
— | ||
|
16
|
16
52G-17584-00-00
Coupling, Gear
|
52G-17584-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
90201-125F7-00 Washer, Plate |
90201-125F7-00 |
from US $2.55 |
||
| replacement | |||||
|
17
|
17
90201-12027-00 Washer, Plate |
90201-12027-00 |
from US $2.32 |
||
|
18
|
18
90179-12421-00 Nut |
90179-12421-00 |
from US $4.34 |
||
| replacement | |||||
|
18
|
18
90179-12657-00 Nut |
90179-12657-00 |
from US $6.52 |
||
|
19
|
19
52G-17551-00-00
Housing, Bearing
|
52G-17551-00-00 |
— | ||
|
20
|
20
932-10565-89-00 O-Ring |
932-10565-89-00 |
from US $3.54 |
||
|
21
|
21
93210-59531-00 O-Ring |
93210-59531-00 |
from US $5.24 |
||
|
22
|
22
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
23
|
23
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
24
|
24
52G-18514-02-00
Fork, Shift 4
|
52G-18514-02-00 |
— | ||
|
25
|
25
90501-101A5-00 Spring, Compression |
90501-101A5-00 |
from US $2.83 |
||
|
26
|
26
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
26
|
26
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
27
|
27
52G-18534-00-00 Bar, Shift Fork Guide |
52G-18534-00-00 |
US $28.06 |
||
|
28
|
28
52G-1812A-00-00
Stopper Shaft Assembly
|
52G-1812A-00-00 |
— | ||
|
29
|
29
90201-10119-00 Washer, Plate |
90201-10119-00 |
from US $1.42 |
||
|
30
|
30
90501-151A4-00
Spring, Compression
|
90501-151A4-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
52G-18197-00-00
Shaft
|
52G-18197-00-00 |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
99009-14400-00 Circlip |
99009-14400-00 |
from US $2.41 |
||
|
33
|
33
52G-18451-00-00
Lever, Shift
|
52G-18451-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
52G-18198-00-00 Lever |
52G-18198-00-00 |
US $16.96 |
||
|
35
|
35
95816-06016-00 Bolt, Flange(52G) |
95816-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
35
|
35
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
36
|
36
93102-14209-00 Oil Seal |
93102-14209-00 |
from US $3.32 |
||
|
37
|
37
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.35 |
||
| replacement | |||||
|
37
|
37
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.28 |
||
