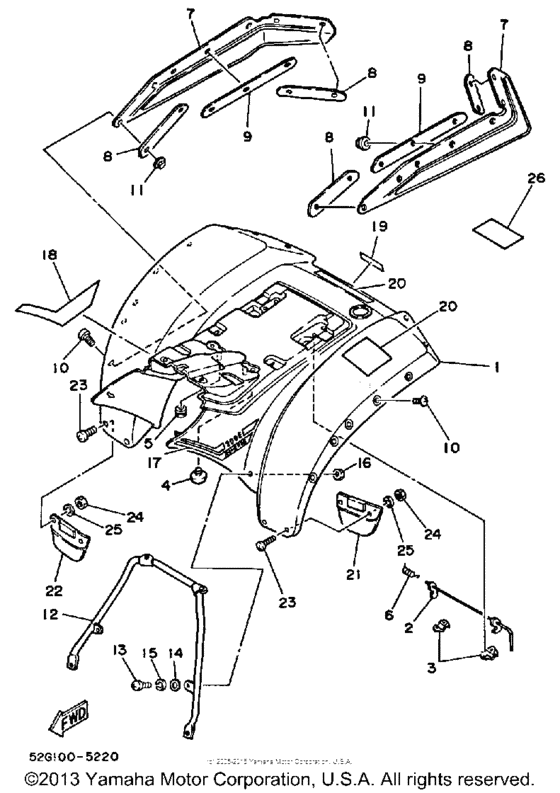

Rear fender Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24W-21611-00-00
Fender, Rear
|
24W-21611-00-00 |
— | ||
|
2
|
2
21V-24776-00-00
Lever, Seat
|
21V-24776-00-00 |
— | ||
|
3
|
3
21V-24775-00-00
Bracket, Seat Lever
|
21V-24775-00-00 |
— | ||
|
4
|
4
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
|
5
|
5
904-80193-51-00
Grommet
|
904-80193-51-00 |
— | ||
|
6
|
6
90508-23567-00 Spring, Torsion |
90508-23567-00 |
from US $3.54 |
||
|
7
|
7
24W-21621-00-00
Flap
|
24W-21621-00-00 |
— | ||
|
8
|
8
21V-21623-00-00
Plate, Flap Ftng 1
|
21V-21623-00-00 |
— | ||
|
9
|
9
24W-21624-00-00
Plate, Flap Ftng 2
|
24W-21624-00-00 |
— | ||
|
10
|
10
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
11
|
11
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
12
|
12
21V-21613-01-00
Stay, Fender 1
|
21V-21613-01-00 |
— | ||
|
13
|
13
98903-06016-00 Screw, Bind |
98903-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.42 |
||
|
14
|
14
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
52G-2163G-00-00
Emblem 1
|
52G-2163G-00-00 |
— | ||
|
18
|
18
52G-2163H-00-00
Emblem 2
|
52G-2163H-00-00 |
— | ||
|
19
|
19
24W-21784-30-00
Emblem 4
|
24W-21784-30-00 |
— | ||
|
20
|
20
21V-21659-30-00
Label, Safety (52G-21659-00)
52G-21659-00 |
21V-21659-30-00 |
— | ||
|
21
|
21
21V-2163A-00-00
Cover, Rear Fender
|
21V-2163A-00-00 |
— | ||
|
22
|
22
21V-2163E-00-00
Cover, Rear Fndr.3
|
21V-2163E-00-00 |
— | ||
|
23
|
23
90154-05016-00 Screw, Binding |
90154-05016-00 |
from US $2.55 |
||
|
24
|
24
95612-05100-00 Nut, U |
95612-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
24
|
24
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
25
|
25
90201-05036-00 Washer, Plate |
90201-05036-00 |
from US $1.84 |
||
| replacement | |||||
|
25
|
25
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
26
|
26
52G-21696-00-00
Label, Caution
|
52G-21696-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
