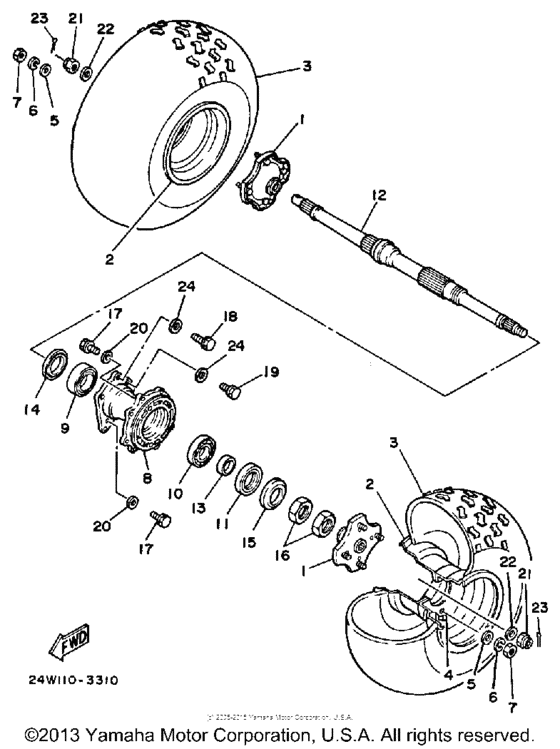

Rear wheel Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24W-25383-00-00 Collar, Wheel |
24W-25383-00-00 |
US $121.61 |
||
|
2
|
2
24W-25180-00-35
Wheel, Front
|
24W-25180-00-35 |
— | ||
| replacement | |||||
|
2
|
2
2HT-25390-00-35
Wheel, Rear
|
2HT-25390-00-35 |
— | ||
|
3
|
3
941-12090-H4-00
25X12-9 Kt430 Dun
|
941-12090-H4-00 |
— | ||
|
4
|
4
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
5
|
5
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
52G-25311-00-00
Hub, Rear
|
52G-25311-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
93399-99913-00 Bearing, Special |
93399-99913-00 |
from US $95.40 |
||
|
10
|
10
93306-00803-00 Bearing |
93306-00803-00 |
from US $42.14 |
||
| replacement | |||||
|
10
|
10
93306-00804-00 Bearing(1Ev) |
93306-00804-00 |
from US $48.08 |
||
|
11
|
11
93102-46274-00 Oil Seal, Sd-Type |
93102-46274-00 |
from US $13.32 |
||
|
12
|
12
24W-25381-10-00
Axle, Wheel
|
24W-25381-10-00 |
— | ||
|
13
|
13
24W-25386-00-00
Collar, Axle
|
24W-25386-00-00 |
— | ||
|
14
|
14
24W-25367-00-00 Cover, Hub Dust |
24W-25367-00-00 |
from US $8.50 |
||
|
15
|
15
21V-25367-00-00
Cover, Hub Dust
|
21V-25367-00-00 |
— | ||
|
16
|
16
90179-40419-00
Nut, Specl Shape
|
90179-40419-00 |
— | ||
|
17
|
17
90119-10087-00
Bolt, With Washer
|
90119-10087-00 |
— | ||
| replacement | |||||
|
17
|
17
90119-10078-00
Bolt, With Washer
|
90119-10078-00 |
— | ||
|
18
|
18
90119-10090-00
Bolt, With Washer
|
90119-10090-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
90119-10091-00
Bolt, With Washer
|
90119-10091-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90201-104G0-00 Washer, Plate |
90201-104G0-00 |
from US $3.12 |
||
|
21
|
21
901-71200-36-00
Nut, Castle
|
901-71200-36-00 |
— | ||
|
22
|
22
902-01201-H6-00
Washer, Plate
|
902-01201-H6-00 |
— | ||
|
23
|
23
91401-40040-00 Pin,cotter |
91401-40040-00 |
from US $3.54 |
||
| replacement | |||||
|
23
|
23
91490-40045-00 Pin. Cotter |
91490-40045-00 |
from US $2.66 |
||
|
24
|
24
90214-10036-00
Washer, Claw
|
90214-10036-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
