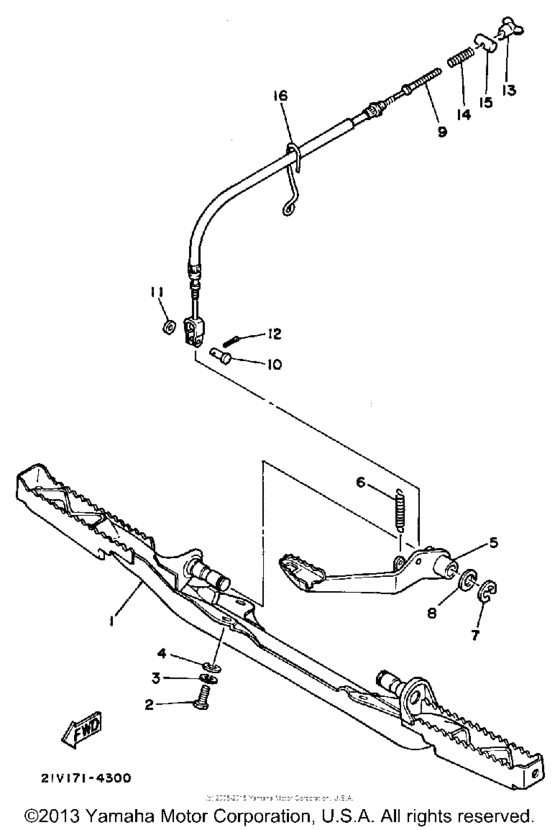

Stand-footrest Diagram Yamaha TRI-MOTO Tri-Moto 200
- Model code
- YTM200ERN
- Engine Capacity
- 200
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21V-27411-10-00
Footrest 1
|
21V-27411-10-00 |
— | ||
|
2
|
2
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
2
|
2
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
2
|
2
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
4
|
4
90201-08100-00 Washer, Plate |
90201-08100-00 |
from US $2.69 |
||
|
5
|
5
21V-27211-02-00
Pedal, Brake
|
21V-27211-02-00 |
— | ||
|
6
|
6
90506-16215-00 Spring, Tension |
90506-16215-00 |
from US $5.18 |
||
|
7
|
7
93430-12008-00 Circlip |
93430-12008-00 |
from US $1.34 |
||
|
8
|
8
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.66 |
||
|
9
|
9
24W-26351-00-00
Cable, Brake
|
24W-26351-00-00 |
— | ||
|
10
|
10
90240-06076-00 Pin, Clevis |
90240-06076-00 |
from US $1.70 |
||
|
11
|
11
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
12
|
12
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
13
|
13
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
14
|
14
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
15
|
15
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
16
|
16
21V-26399-00-00
Guide, Cable
|
21V-26399-00-00 |
— | ||
